Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

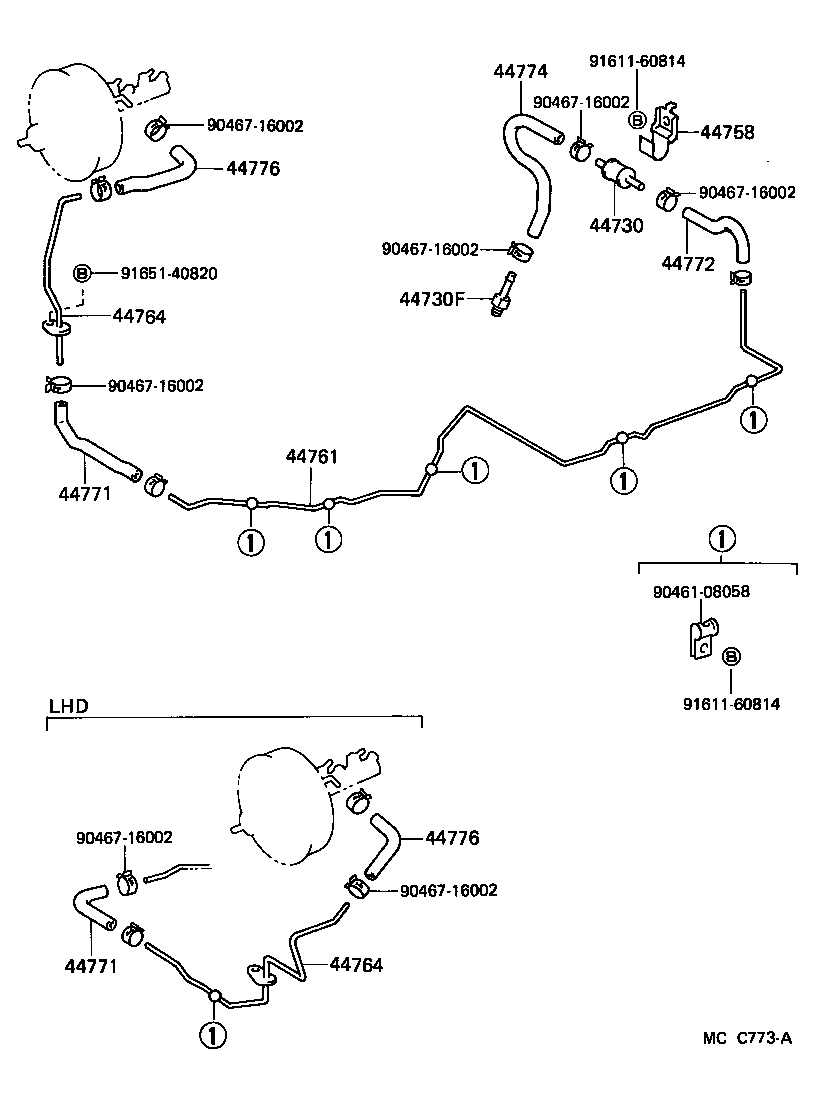

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-24020 |
Valve Assy, Vacuum Check(FOR BRAKE)
1985-10 → 1988-08
ended
|
KM3# | — | |
| 44730-60040 |
Valve Assy, Vacuum Check(FOR BRAKE)
1985-10 → 1988-08
ended
|
CM35 | — | |
| 44730F — Union, Vacuum Hose(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-10 → 1988-08
ended
|
KM3# | — | |
| 44758 — Bracket, Vacuum Check Valve | ||||
| 44758-27070 |
Bracket, Vacuum Check Valve
1985-10 → 1988-08
ended
|
KM3# | — | |
| 44761 — Tube, Intake Manifold OR Vacuum Pump TO Connector | ||||
| 44761-27100 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-10 → 1988-08
ended
|
KM3# LHD | — | |
| 44761-27110 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 44761-27120 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-10 → 1988-08
ended
|
CM35 | — | |
| 44764 — Tube, Booster Vacuum | ||||
| 44764-27050 |
Tube, Booster Vacuum
1985-10 → 1988-08
ended
|
CM35,KM3# LHD | — | |
| 44764-27060 |
Tube, Booster Vacuum
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44771 — Hose, Vacuum Tube Connector | ||||
| 44771-27040 |
Hose, Vacuum Tube Connector
1985-10 → 1988-08
ended
|
KM3# LHD | — | |
| 44771-27050 |
Hose, Vacuum Tube Connector
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 44771-27060 |
Hose, Vacuum Tube Connector
1985-10 → 1988-08
ended
|
CM35 RHD | — | |
| 44771-27070 |
Hose, Vacuum Tube Connector
1985-10 → 1988-08
ended
|
CM35 LHD | — | |
| 44772 — Hose, Check Valve TO Connector Tube | ||||
| 44772-27010 |
Hose, Check Valve TO Connector Tube
1985-10 → 1988-08
ended
|
KM3# LHD | — | |
| 44772-27020 |
Hose, Check Valve TO Connector Tube
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 44772-27030 |
Hose, Check Valve TO Connector Tube
1985-10 → 1988-08
ended
|
CM35 | — | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-27080 |
Hose, Union TO Connector Tube
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 44774-27100 |
Hose, Union TO Connector Tube
1985-10 → 1988-08
ended
|
CM35 | — | |
| 44774-27110 |
Hose, Union TO Connector Tube
1985-10 → 1988-08
ended
|
KM3# LHD | — | |
| 44774-27120 note |
Hose, Union TO Connector Tube
1985-10 → 1988-08
ended
|
KM30 DLX;KM36 LHD 5F +1 | — | |
| 44776 — Hose, Brake Booster | ||||
| 44776-27010 note |
Hose, Brake Booster
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44776-27020 |
Hose, Brake Booster
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44776-27030 note |
Hose, Brake Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
