Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

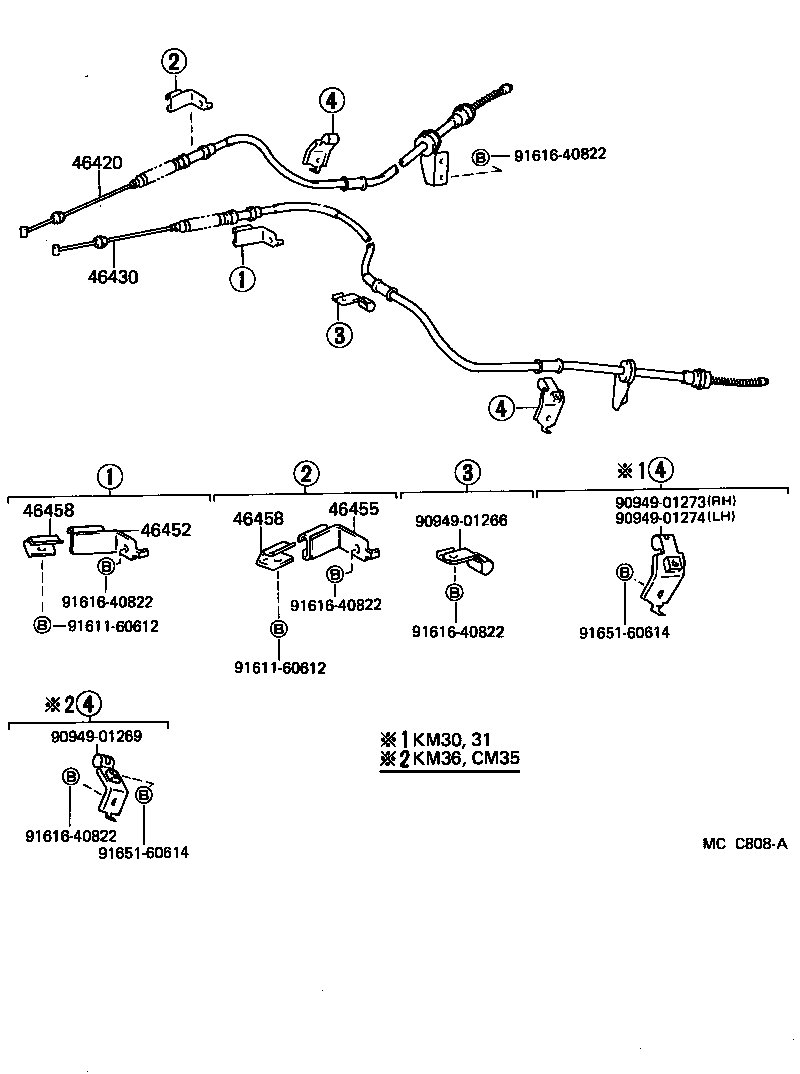

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-27140 |
Cable Assy, Parking Brake, NO.2
1985-10 → 1988-08
ended
|
KM30,31 | — | |
| 46420-27150 |
Cable Assy, Parking Brake, NO.2
1985-10 → 1988-08
ended
|
CM35,KM36 | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-27140 |
Cable Assy, Parking Brake, NO.3
1985-10 → 1988-08
ended
|
KM30,31 | — | |
| 46430-27150 |
Cable Assy, Parking Brake, NO.3
1985-10 → 1988-08
ended
|
CM35,KM36 | — | |
| 46452 — Bracket, Parking Brake Cable Support, NO.2 | ||||
| 46452-28060 |
Bracket, Parking Brake Cable Support, NO.2
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 46455 — Bracket, Parking Brake Cable Support, NO.3 | ||||
| 46453-28010 |
Bracket, Parking Brake Cable Support, NO.3
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 46458 — Retainer, Cable | ||||
| 46458-28010 |
Retainer, Cable
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
