Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

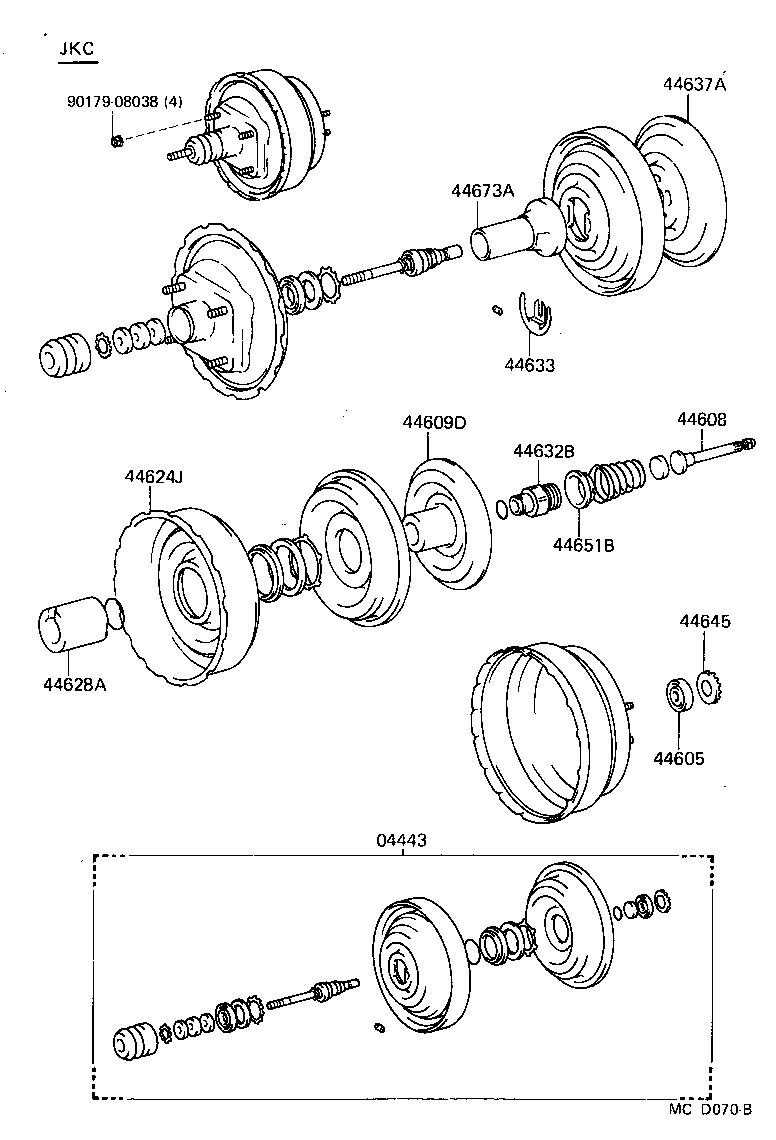

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04443 — Booster Kit, Brake | ||||
| 04443-27200 |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 RHD | — | |
| 04443-27210 |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 RHD | — | |
| 04443-27220 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM3# LHD +1 | — | |
| 04443-27230 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD 5F | — | |
| 04443-27260 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM36 LHD +1 | — | |
| 04443-27270 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD | — | |
| 04443-27300 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
KM36 4F 05S;KM3# LHD +1 | — | |
| 04443-27310 note |
Booster Kit, Brake
1985-10 → 1988-08
ended
|
CM35 LHD 5F | — | |
| 44605 — Plate & Seal Sub-assy, Booster | ||||
| 44605-22021 note |
Plate & Seal Sub-assy, Booster
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44605-30350 note |
Plate & Seal Sub-assy, Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-12520 |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 44606-20800 note |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-17090 note |
Push Rod Sub-assy, Booster
1987-09 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-20810 note |
Push Rod Sub-assy, Booster
1985-10 → 1987-09
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44608-32020 note |
Push Rod Sub-assy, Booster
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44609D — Plate & Retainer Sub-assy, Booster | ||||
| 44609-17090 note |
Plate & Retainer Sub-assy, Booster
1987-09 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44609-20810 note |
Plate & Retainer Sub-assy, Booster
1985-10 → 1987-09
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44624J — Plate, Booster Center | ||||
| 44624-20810 note |
Plate, Booster Center
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44628A — Body, Booster Center | ||||
| 44628-20810 note |
Body, Booster Center
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44632B — Hub, Booster Reaction Disk | ||||
| 44632-27290 note |
Hub, Booster Reaction Disk
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44633 — Key, Booster Valve Plunger | ||||
| 44633-20810 note |
Key, Booster Valve Plunger
1985-10 → 1986-07
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44633-20811 note |
Key, Booster Valve Plunger
1986-07 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44633-28130 note |
Key, Booster Valve Plunger
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44637A — Plate, Booster Diaphragm | ||||
| 44637-20810 note |
Plate, Booster Diaphragm
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44637-32040 note |
Plate, Booster Diaphragm
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44645 — Retainer, Booster Push Rod Seal | ||||
| 44645-10080 note |
Retainer, Booster Push Rod Seal
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44645-22020 note |
Retainer, Booster Push Rod Seal
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
| 44651B — Nut, Booster | ||||
| 44651-20810 note |
Nut, Booster
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44673A — Body, Booster Valve | ||||
| 44673-20810 note |
Body, Booster Valve
1985-10 → 1988-08
ended
|
KM36 4F 05S;CM35,KM3# LHD +1 | — | |
| 44673-28190 note |
Body, Booster Valve
1985-10 → 1988-08
ended
|
CM35 LHD;KM36 4F 05S;KM36 +2 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
