Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

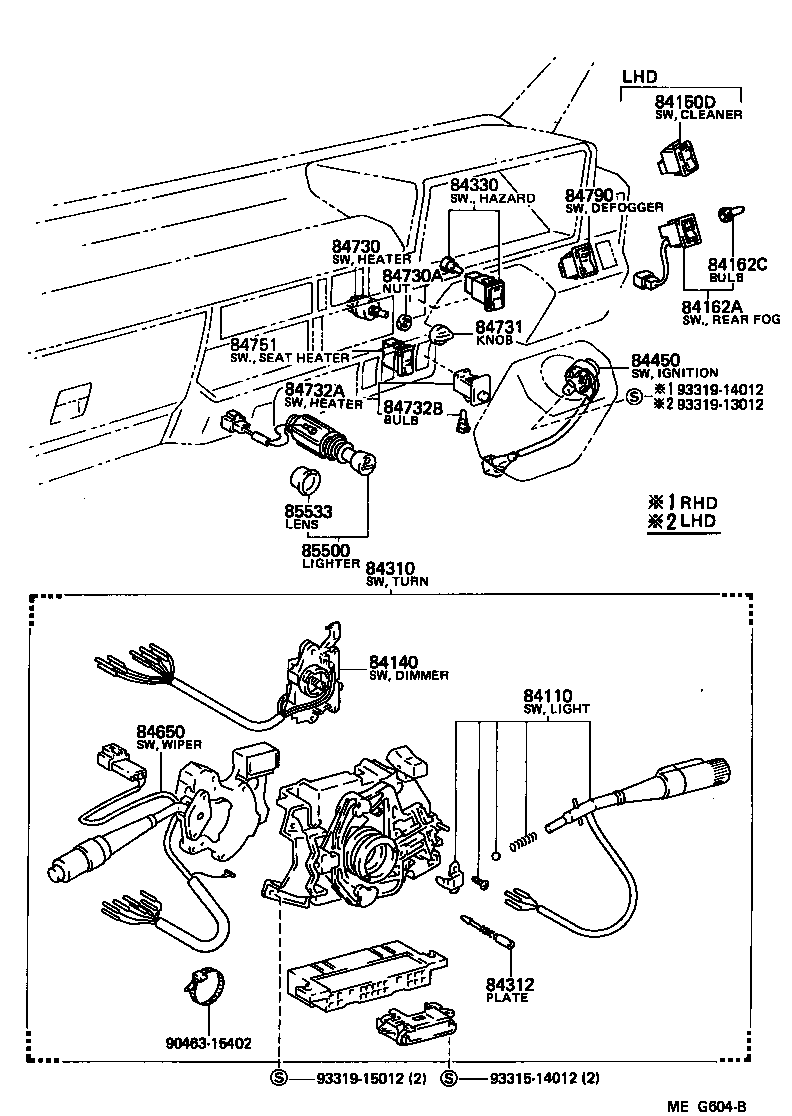

Exploded illustration MEG604B 84150D — SWITCH ASSY, HEADLAMP CLEANER (1 parts) 84330 — SWITCH ASSY, HAZARD WARNING SIGNAL (1 parts) 84790 — SWITCH ASSY, REAR WINDOW DEFOGGER (2 parts) 84730 — SWITCH ASSY, HEATER BLOWER (1 parts) 84162C — BULB (FOR REAR FOG LAMP SWITCH) (3 parts) 84730A — NUT, HEATER BLOWER SWITCH (1 parts) 84162A — SWITCH, REAR FOG LAMP (5 parts) 84731 — KNOB, HEATER BLOWER SWITCH (1 parts) 84751 — SWITCH, SEAT HEATER (1 parts) 84450 — SWITCH ASSY, IGNITION OR STARTER (3 parts) 84732A — SWITCH, REAR HEATER BLOWER (3 parts) 9331914012 — not listed in this catalogue 9331913012 — not listed in this catalogue 84732B — BULB, REAR HEATER BLOWER SWITCH (2 parts) 85533 — LENS, CIGARETTE LIGHTER INDICATOR (1 parts) 85500 — LIGHTER ASSY, CIGARETTE (4 parts) 84310 — SWITCH ASSY, TURN SIGNAL (12 parts) 84140 — SWITCH ASSY, HEADLAMP DIMMER (3 parts) 84110 — SWITCH ASSY, LIGHT CONTROL, NO.1 (2 parts) 84650 — SWITCH ASSY, WINDSHIELD WIPER (8 parts) 84312 — PLATE, HORN CONTACT (1 parts) 9046315402 — not listed in this catalogue 9331514012 — not listed in this catalogue 9331915012 — not listed in this catalogue
MEG604B · 19 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
84110 — Switch Assy, Light Control, NO.1
84112-29585 Switch Assy, Light Control, NO.1
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84112-29595 Switch Assy, Light Control, NO.1
1985-10 → 1988-08 ended
CM35,KM3# LHD —
84140 — Switch Assy, Headlamp Dimmer
84140-27020 Switch Assy, Headlamp Dimmer
1985-10 → 1987-08 ended
CM35,KM36 RHD —
84140-27030 Switch Assy, Headlamp Dimmer
1985-10 → 1988-08 ended
CM35,KM3# LHD —
84140-27060 Switch Assy, Headlamp Dimmer
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84150D — Switch Assy, Headlamp Cleaner
84150-10010 Switch Assy, Headlamp Cleaner
1985-10 → 1988-08 ended
CM35,KM36 4H,5H —
84162A — Switch, Rear Fog Lamp
84160-14040 Switch, Rear Fog Lamp
1985-10 → 1986-10 ended
CM35,KM3# —
84160-14040 Switch, Rear Fog Lamp
1986-10 → 1987-08 ended
CM35 RHD —
84160-95701 Switch, Rear Fog Lamp
1986-10 → 1987-08 ended
KM36 RHD —
84160-95701 Switch, Rear Fog Lamp
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84160-95702 Switch, Rear Fog Lamp
1986-10 → 1988-08 ended
CM35,KM3# LHD —
84162C — Bulb (FOR REAR FOG LAMP SWITCH)
84999-10110 note Bulb (FOR REAR FOG LAMP SWITCH)
1985-10 → 1986-10 ended
CM35,KM3# —
84999-10110 note Bulb (FOR REAR FOG LAMP SWITCH)
1986-10 → 1988-08 ended
CM35,KM36 RHD —
84999-10120 note Bulb (FOR REAR FOG LAMP SWITCH)
1986-10 → 1988-08 ended
CM35,KM3# LHD —
84310 — Switch Assy, Turn Signal
84310-27090 Switch Assy, Turn Signal
1985-10 → 1987-08 ended
CM35,KM36 RHD —
84310-27100 note Switch Assy, Turn Signal
1985-10 → 1987-08 ended
CM35,KM36 RHD —
84310-27110 note Switch Assy, Turn Signal
1985-10 → 1987-08 ended
CM35,KM36 RHD —
84310-27130 Switch Assy, Turn Signal
1985-10 → 1988-08 ended
CM35,KM36 LHD 02S —
84310-27150 note Switch Assy, Turn Signal
1985-10 → 1988-08 ended
CM35,KM36 LHD 02S —
84310-27160 note Switch Assy, Turn Signal
1985-10 → 1988-08 ended
CM35,KM31,36 LHD —
84310-27170 note Switch Assy, Turn Signal
1985-10 → 1987-08 ended
CM35,KM36 RHD —
84310-27180 note Switch Assy, Turn Signal
1985-10 → 1988-08 ended
CM35,KM3# LHD —
84310-27210 Switch Assy, Turn Signal
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84310-27220 note Switch Assy, Turn Signal
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84310-27230 note Switch Assy, Turn Signal
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84310-27240 note Switch Assy, Turn Signal
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84312 — Plate, Horn Contact
84312-20011 Plate, Horn Contact
1985-10 → 1988-08 ended
CM35,KM3# —
84330 — Switch Assy, Hazard Warning Signal
84332-28070 Switch Assy, Hazard Warning Signal
1987-08 → 1988-08 ended
CM35,KM36 RHD —
84450 — Switch Assy, Ignition OR Starter
84450-27080 Switch Assy, Ignition OR Starter
1985-10 → 1988-08 ended
CM35,KM3# LHD (4F,5F) —
84450-27090 Switch Assy, Ignition OR Starter
1985-10 → 1988-08 ended
CM35,KM36 4H,5H —
84450-27100 Switch Assy, Ignition OR Starter
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84650 — Switch Assy, Windshield Wiper
84652-27070 Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84652-27080 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84652-27090 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84652-27120 Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 LHD 02S —
84652-27130 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 LHD 02S —
84652-27140 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM31,36 LHD —
84652-27150 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM36 RHD —
84652-27160 note Switch Assy, Windshield Wiper
1985-10 → 1988-08 ended
CM35,KM3# LHD —
84730 — Switch Assy, Heater Blower
84732-12020 Switch Assy, Heater Blower
1985-10 → 1988-08 ended
CM35,KM3# —
84730A — Nut, Heater Blower Switch
90170-11206 Nut, Heater Blower Switch
1985-10 → 1988-08 ended
CM35,KM3# —
84731 — Knob, Heater Blower Switch
84731-12010 Knob, Heater Blower Switch
1985-10 → 1988-08 ended
CM35,KM3# —
84732A — Switch, Rear Heater Blower
84730-95704 note Switch, Rear Heater Blower
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
84730-95J01 note Switch, Rear Heater Blower
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
84732-95703 note Switch, Rear Heater Blower
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
84732B — Bulb, Rear Heater Blower Switch
90981-11024 note Bulb, Rear Heater Blower Switch
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
90981-11024 note Bulb, Rear Heater Blower Switch
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
84751 — Switch, Seat Heater
84751-14010 note Switch, Seat Heater
1987-08 → 1988-08 ended
CM35,KM36 LHD 5F 02S —
84790 — Switch Assy, Rear Window Defogger
84790-20130 Switch Assy, Rear Window Defogger
1986-10 → 1988-08 ended
CM35,KM3# —
84790-32060 Switch Assy, Rear Window Defogger
1985-10 → 1986-10 ended
CM35,KM3# —
85500 — Lighter Assy, Cigarette
85500-95710 Lighter Assy, Cigarette
1985-10 → 1987-03 ended
CM35,KM3# —
85500-95710 Lighter Assy, Cigarette
1987-03 → 1988-08 ended
CM35,KM36 RHD —
85500-95711 note Lighter Assy, Cigarette
1985-10 → 1988-08 ended
KM31;KM30 DLX;KM36 LHD MRF +1 —
85500-95712 Lighter Assy, Cigarette
1987-03 → 1988-08 ended
CM35,KM3# LHD —
85533 — Lens, Cigarette Lighter Indicator
85533-95700 Lens, Cigarette Lighter Indicator
1985-10 → 1988-08 ended
CM35,KM3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
