Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

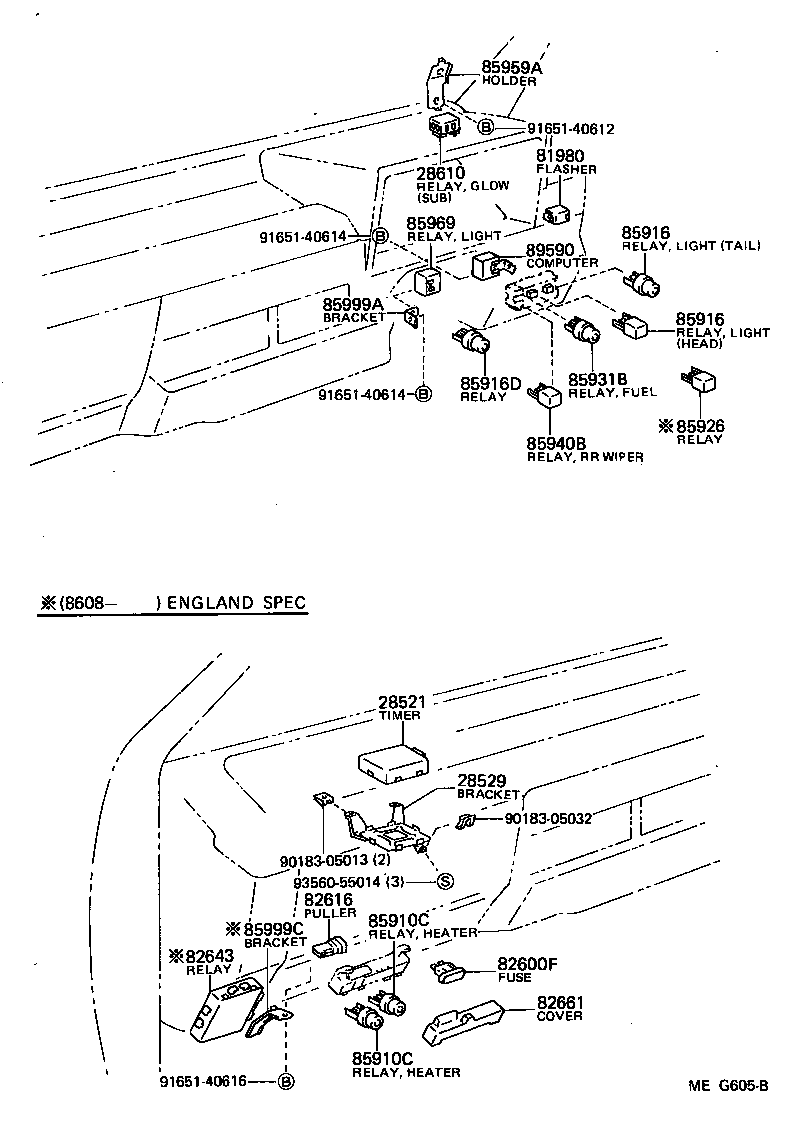

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28521 — Timer, Preheating | ||||
| 28521-64260 |
Timer, Preheating
1985-10 → 1987-08
ended
|
1C CM35 | — | |
| 28521-64290 |
Timer, Preheating
1987-08 → 1988-08
ended
|
1C CM35 | — | |
| 28529 — Bracket, Preheating Timer, NO.1 | ||||
| 28529-64050 |
Bracket, Preheating Timer, NO.1
1987-08 → 1988-08
ended
|
1C CM35 | — | |
| 28529-64050 |
Bracket, Preheating Timer, NO.1
1985-10 → 1987-08
ended
|
1C CM35 RHD | — | |
| 28529-64060 |
Bracket, Preheating Timer, NO.1
1985-10 → 1987-08
ended
|
1C CM35 LHD | — | |
| 28610 — Relay Assy, Intake Heater OR Glow Plug | ||||
| 28610-54021 note |
Relay Assy, Intake Heater OR Glow Plug
1985-10 → 1988-08
ended
|
1C CM35 | — | |
| 28610-55010 note |
Relay Assy, Intake Heater OR Glow Plug
1986-08 → 1988-08
ended
|
1C CM35 | — | |
| 28610-64030 note |
Relay Assy, Intake Heater OR Glow Plug
1985-10 → 1986-08
ended
|
1C CM35 | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-16010 |
Flasher Assy, Turn Signal
1985-12 → 1988-08
ended
|
CM35,KM3# | — | |
| 81980-22070 |
Flasher Assy, Turn Signal
1985-10 → 1985-12
ended
|
CM35,KM3# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-07011 note |
Fuse, Fuse Block
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90982-09002 note |
Fuse, Fuse Block
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90982-09003 note |
Fuse, Fuse Block
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90982-09004 note |
Fuse, Fuse Block
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90982-09005 note |
Fuse, Fuse Block
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 82616 — Puller, Fuse | ||||
| 82616-12010 |
Puller, Fuse
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 82643 — Relay, Dim-dip Lamp | ||||
| 82643-32010 note |
Relay, Dim-dip Lamp
1986-08 → 1987-08
ended
|
KM36 RHD | — | |
| 82643-32010 note |
Relay, Dim-dip Lamp
1987-08 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 82661 — Cover, Relay Block, NO.1 | ||||
| 82611-95705 |
Cover, Relay Block, NO.1
1985-10 → 1986-08
ended
|
CM35,KM36 RHD | — | |
| 82611-95706 |
Cover, Relay Block, NO.1
1985-10 → 1986-08
ended
|
CM35,KM3# LHD | — | |
| 82611-95707 note |
Cover, Relay Block, NO.1
1985-10 → 1986-08
ended
|
KM30 DLX | — | |
| 82611-95709 |
Cover, Relay Block, NO.1
1986-08 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 82611-95711 |
Cover, Relay Block, NO.1
1986-08 → 1988-08
ended
|
CM35,KM3# LHD | — | |
| 82611-95712 note |
Cover, Relay Block, NO.1
1986-08 → 1988-08
ended
|
KM30 DLX | — | |
| 85910C — Relay Assy (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90987-02004 note |
Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 85916 — Relay, Light Control | ||||
| 90987-01003 note |
Relay, Light Control
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 90987-02006 note |
Relay, Light Control
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02004 |
Relay, Fog Lamp
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 85926 — Relay, Headlamp Dimmer | ||||
| 85926-30020 note |
Relay, Headlamp Dimmer
1985-10 → 1988-08
ended
|
KM31;KM30 DLX;KM36 LHD MRF +1 | — | |
| 85926-30020 note |
Relay, Headlamp Dimmer
1986-08 → 1988-08
ended
|
KM36 RHD | — | |
| 85931B — Relay, Fuel Heater | ||||
| 90987-02004 |
Relay, Fuel Heater
1985-10 → 1988-08
ended
|
CM35 | — | |
| 85940B — Relay Assy, Rear Wiper | ||||
| 85913-30020 |
Relay Assy, Rear Wiper
1985-10 → 1988-02
ended
|
CM35,KM3# | — | |
| 90987-04002 |
Relay Assy, Rear Wiper
1988-02 → 1988-08
ended
|
CM35,KM3# | — | |
| 85959A — Holder, Relay | ||||
| 85959-27010 |
Holder, Relay
1985-10 → 1988-08
ended
|
CM35 | — | |
| 85969 — Relay, Light Reminder | ||||
| 85969-17010 |
Relay, Light Reminder
1987-08 → 1988-08
ended
|
CM35,KM3# | — | |
| 85969-22012 |
Relay, Light Reminder
1985-10 → 1987-08
ended
|
CM35,KM3# | — | |
| 85999A — Bracket, Relay, NO.2 | ||||
| 85999-95707 note |
Bracket, Relay, NO.2
1985-10 → 1988-08
ended
|
CM35,KM3# LHD | — | |
| 85999-95708 |
Bracket, Relay, NO.2
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 85999C — Bracket, Relay, NO.3 | ||||
| 85999-95709 note |
Bracket, Relay, NO.3
1986-08 → 1987-08
ended
|
KM36 RHD | — | |
| 85999-95709 note |
Bracket, Relay, NO.3
1987-08 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 89590 — Computer Assy, Condition Indicator | ||||
| 89590-27020 |
Computer Assy, Condition Indicator
1985-10 → 1988-08
ended
|
CM35,KM36 RHD | — | |
| 89590-27030 |
Computer Assy, Condition Indicator
1985-10 → 1988-08
ended
|
CM35,KM3# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
