Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

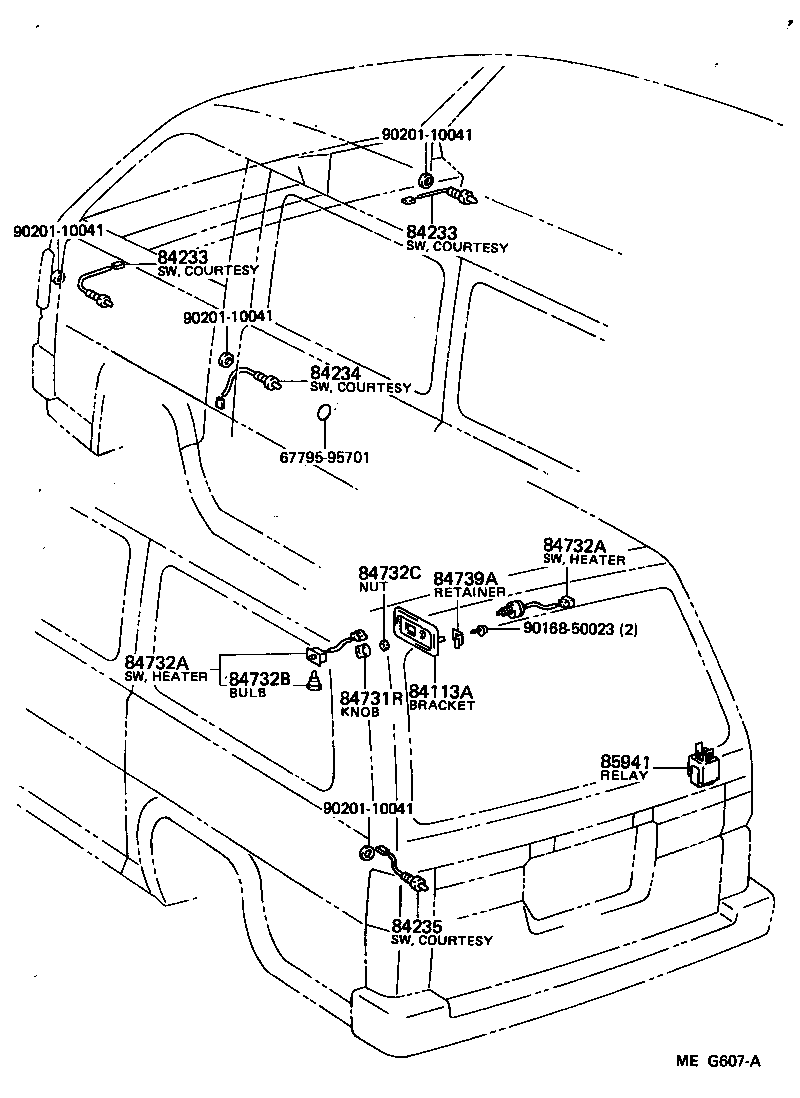

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84113A — Bracket, Switch, NO.1 | ||||
| 84113-95703-04 note |
Bracket, Switch, NO.1
1985-10 → 1988-08
ended
|
KM30 DLX | — | |
| 84113-95703-06 note |
Bracket, Switch, NO.1
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84230-95703 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84230-95702 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1985-10 → 1986-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84230-95702 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1986-08 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84230-95702 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1986-08 → 1988-08
ended
|
KM36 SRF | — | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84230-95703 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1985-10 → 1986-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84230-95703 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1986-08 → 1988-08
ended
|
CM35,KM3# | — | |
| 84731R — Knob, Rear Heater Blower Switch | ||||
| 84731-95700 |
Knob, Rear Heater Blower Switch
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84732A — Switch, Rear Heater Blower | ||||
| 84730-95704 note |
Switch, Rear Heater Blower
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84730-95J01 note |
Switch, Rear Heater Blower
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84732-95703 note |
Switch, Rear Heater Blower
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84732B — Bulb, Rear Heater Blower Switch | ||||
| 90981-11024 note |
Bulb, Rear Heater Blower Switch
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 90981-11024 note |
Bulb, Rear Heater Blower Switch
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84732C — Nut, Rear Heater Blower Switch | ||||
| 90170-11206 |
Nut, Rear Heater Blower Switch
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 84739A — Retainer, Switch | ||||
| 55944-95701 |
Retainer, Switch
1985-10 → 1988-08
ended
|
CM35,KM3# 05S,08S | — | |
| 85941 — Relay, Windshield Washer | ||||
| 85941-95700 |
Relay, Windshield Washer
1985-10 → 1988-08
ended
|
CM35,KM3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
