Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

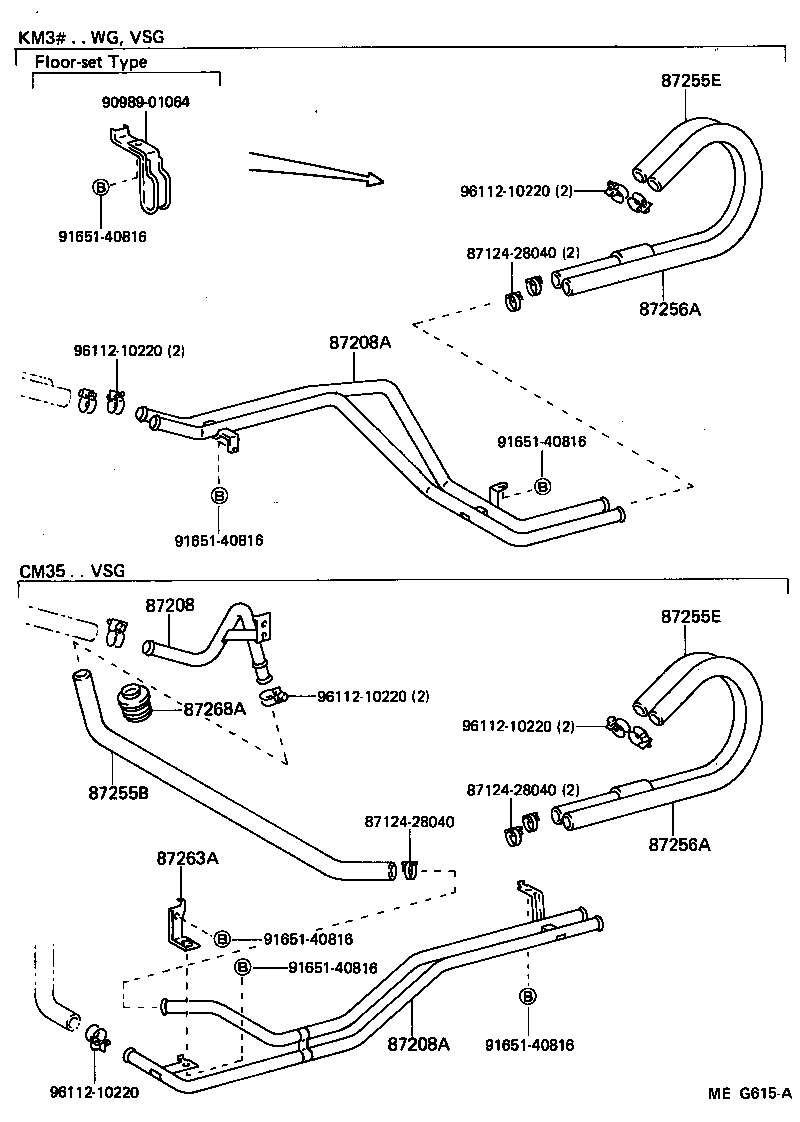

Exploded illustration MEG615A 87255E — HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) (4 parts) 9098901064 — not listed in this catalogue 9611210220 — not listed in this catalogue 9165140816 — not listed in this catalogue 8712428040 — not listed in this catalogue 87256A — HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) (3 parts) 87208A — PIPE SUB-ASSY, HEATER WATER, A (2 parts) 9611210220 — not listed in this catalogue 9165140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 87208 — PIPE SUB-ASSY, HEATER WATER (4 parts) 87255E — HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) (4 parts) 9611210220 — not listed in this catalogue 87268A — PROTECTOR, REAR HEATER PIPE (1 parts) 9611210220 — not listed in this catalogue 8712428040 — not listed in this catalogue 87255B — HOSE, REAR HEATER WATER INLET, B (1 parts) 8712428040 — not listed in this catalogue 87256A — HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) (3 parts) 87263A — BRACKET, HEATER WATER PIPE, NO.2 (1 parts) 9165140816 — not listed in this catalogue 9165140816 — not listed in this catalogue 87208A — PIPE SUB-ASSY, HEATER WATER, A (2 parts) 9165140816 — not listed in this catalogue 9611210220 — not listed in this catalogue
MEG615A · 10 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
87208 — Pipe Sub-assy, Heater Water
87208-95717 Pipe Sub-assy, Heater Water
1985-10 → 1988-08 ended
KM36 RHD —
87208-95719 Pipe Sub-assy, Heater Water
1985-10 → 1988-08 ended
KM3# LHD STD —
87208-95720 note Pipe Sub-assy, Heater Water
1985-10 → 1988-08 ended
KM3# 05S,08S —
87208-95731 Pipe Sub-assy, Heater Water
1985-10 → 1988-08 ended
CM35 05S —
87208A — Pipe Sub-assy, Heater Water, A
87208-95727 Pipe Sub-assy, Heater Water, A
1985-10 → 1988-08 ended
KM3# 05S,08S —
87208-95736 Pipe Sub-assy, Heater Water, A
1985-10 → 1988-08 ended
CM35 05S —
87255B — Hose, Rear Heater Water Inlet, B
87245-95751 Hose, Rear Heater Water Inlet, B
1985-10 → 1988-08 ended
CM35 05S —
87255E — Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87245-95744 Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
1985-10 → 1987-06 ended
CM35 05S —
87245-95746 note Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
1985-10 → 1988-08 ended
KM30 —
87245-95747 note Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
1985-10 → 1987-06 ended
KM3# 05S,08S —
87245-95747 note Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
1987-06 → 1988-08 ended
CM35,KM3# 05S,08S —
87256A — Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
99556-20320 note Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
1985-10 → 1988-08 ended
CM35 05S —
99556-20700 note Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
1985-10 → 1987-06 ended
KM30 —
99556-30500 note Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
1985-10 → 1988-08 ended
KM30 —
87263A — Bracket, Heater Water Pipe, NO.2
87121-95704 Bracket, Heater Water Pipe, NO.2
1985-10 → 1988-08 ended
CM35 05S —
87268A — Protector, Rear Heater Pipe
87268-95701 Protector, Rear Heater Pipe
1985-10 → 1988-08 ended
CM35 05S —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
