Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

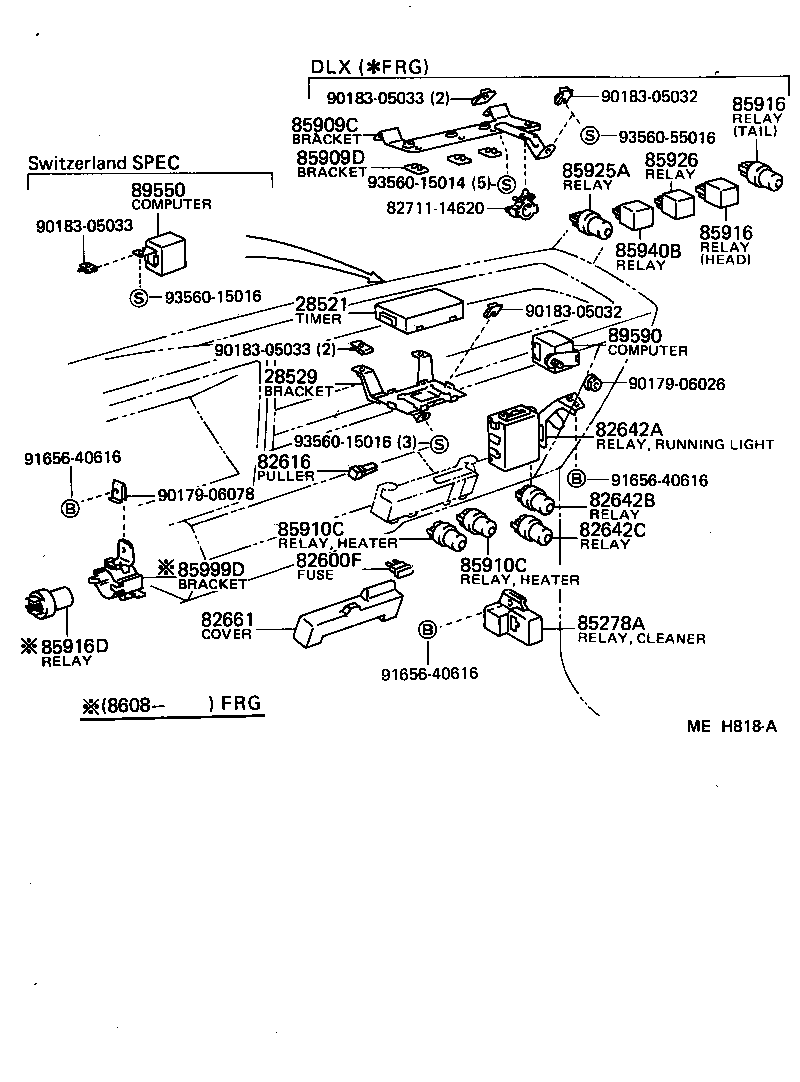

Exploded illustration MEH818A 9018305032 — not listed in this catalogue 9018305033 — not listed in this catalogue 85916 — RELAY, LIGHT CONTROL (2 parts) 85909C — BRACKET SUB-ASSY, RELAY, NO.1 (1 parts) 9356055016 — not listed in this catalogue 85909D — BRACKET SUB-ASSY, RELAY, NO.2 (1 parts) 85926 — RELAY, HEADLAMP DIMMER (2 parts) 85925A — RELAY, RED INDICATOR (1 parts) 9356015014 — not listed in this catalogue 89550 — COMPUTER ASSY, EMISSION CONTROL (2 parts) 8271114620 — not listed in this catalogue 9018305033 — not listed in this catalogue 85916 — RELAY, LIGHT CONTROL (2 parts) 85940B — RELAY ASSY, REAR WIPER (2 parts) 9356015016 — not listed in this catalogue 28521 — TIMER, PREHEATING (2 parts) 9018305032 — not listed in this catalogue 89590 — COMPUTER ASSY, CONDITION INDICATOR (2 parts) 9018305033 — not listed in this catalogue 28529 — BRACKET, PREHEATING TIMER, NO.1 (3 parts) 9017906026 — not listed in this catalogue 82642A — RELAY, RUNNING LIGHT (1 parts) 9356015016 — not listed in this catalogue 9165640616 — not listed in this catalogue 82616 — PULLER, FUSE (1 parts) 9165640616 — not listed in this catalogue 9017906078 — not listed in this catalogue 82642B — RELAY, DAY TIME RUNNING LIGHT, NO.1 (1 parts) 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (2 parts) 82642C — RELAY, DAY TIME RUNNING LIGHT, NO.2 (1 parts) 82600F — FUSE, FUSE BLOCK (5 parts) 85910C — RELAY ASSY (FOR HEATER BLOWER MOTOR) (2 parts) 85999D — BRACKET, RELAY, NO.4 (1 parts) 82661 — COVER, RELAY BLOCK, NO.1 (6 parts) 85278A — RELAY ASSY, HEADLAMP CLEANER CONTROL (1 parts) 85916D — RELAY, FOG LAMP (1 parts) 9165640616 — not listed in this catalogue
MEH818A · 22 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
28521 — Timer, Preheating
28521-64260 Timer, Preheating
1985-10 → 1987-08 ended
1C CM35 —
28521-64290 Timer, Preheating
1987-08 → 1988-08 ended
1C CM35 —
28529 — Bracket, Preheating Timer, NO.1
28529-64050 Bracket, Preheating Timer, NO.1
1987-08 → 1988-08 ended
1C CM35 —
28529-64050 Bracket, Preheating Timer, NO.1
1985-10 → 1987-08 ended
1C CM35 RHD —
28529-64060 Bracket, Preheating Timer, NO.1
1985-10 → 1987-08 ended
1C CM35 LHD —
82600F — Fuse, Fuse Block
90982-07011 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CM35,KM3# —
90982-09002 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CM35,KM3# —
90982-09003 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CM35,KM3# —
90982-09004 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CM35,KM3# —
90982-09005 note Fuse, Fuse Block
1985-10 → 1988-08 ended
CM35,KM3# —
82616 — Puller, Fuse
82616-12010 Puller, Fuse
1985-10 → 1988-08 ended
CM35,KM3# —
82642A — Relay, Running Light
82642-95701 Relay, Running Light
1985-10 → 1988-08 ended
KM36 4F 05S —
82642B — Relay, Day Time Running Light, NO.1
90987-02004 Relay, Day Time Running Light, NO.1
1985-10 → 1988-08 ended
KM36 4F 05S —
82642C — Relay, Day Time Running Light, NO.2
90987-03001 Relay, Day Time Running Light, NO.2
1985-10 → 1988-08 ended
KM36 4F 05S —
82661 — Cover, Relay Block, NO.1
82611-95705 Cover, Relay Block, NO.1
1985-10 → 1986-08 ended
CM35,KM36 RHD —
82611-95706 Cover, Relay Block, NO.1
1985-10 → 1986-08 ended
CM35,KM3# LHD —
82611-95707 note Cover, Relay Block, NO.1
1985-10 → 1986-08 ended
KM30 DLX —
82611-95709 Cover, Relay Block, NO.1
1986-08 → 1988-08 ended
CM35,KM36 RHD —
82611-95711 Cover, Relay Block, NO.1
1986-08 → 1988-08 ended
CM35,KM3# LHD —
82611-95712 note Cover, Relay Block, NO.1
1986-08 → 1988-08 ended
KM30 DLX —
85278A — Relay Assy, Headlamp Cleaner Control
85276-22020 Relay Assy, Headlamp Cleaner Control
1985-10 → 1988-08 ended
CM35,KM36 4H,5H —
85909C — Bracket Sub-assy, Relay, NO.1
85909-95700 note Bracket Sub-assy, Relay, NO.1
1985-10 → 1988-08 ended
KM30 DLX —
85909D — Bracket Sub-assy, Relay, NO.2
74468-95700 note Bracket Sub-assy, Relay, NO.2
1985-10 → 1988-08 ended
KM30 DLX —
85910C — Relay Assy (FOR HEATER BLOWER MOTOR)
90987-02004 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1988-08 ended
CM35,KM3# —
90987-02004 note Relay Assy (FOR HEATER BLOWER MOTOR)
1985-10 → 1988-08 ended
CM35,KM3# 05S,08S —
85916 — Relay, Light Control
90987-01003 note Relay, Light Control
1985-10 → 1988-08 ended
CM35,KM3# —
90987-02006 note Relay, Light Control
1985-10 → 1988-08 ended
CM35,KM3# —
85916D — Relay, Fog Lamp
90987-02004 Relay, Fog Lamp
1985-10 → 1988-08 ended
CM35,KM3# —
85925A — Relay, Red Indicator
90987-03001 Relay, Red Indicator
1985-10 → 1988-08 ended
CM35,KM3# LHD —
85926 — Relay, Headlamp Dimmer
85926-30020 note Relay, Headlamp Dimmer
1985-10 → 1988-08 ended
KM31;KM30 DLX;KM36 LHD MRF +1 —
85926-30020 note Relay, Headlamp Dimmer
1986-08 → 1988-08 ended
KM36 RHD —
85940B — Relay Assy, Rear Wiper
85913-30020 Relay Assy, Rear Wiper
1985-10 → 1988-02 ended
CM35,KM3# —
90987-04002 Relay Assy, Rear Wiper
1988-02 → 1988-08 ended
CM35,KM3# —
85999D — Bracket, Relay, NO.4
85999-14150 note Bracket, Relay, NO.4
1986-08 → 1988-08 ended
KM30 DLX —
89550 — Computer Assy, Emission Control
89550-27110 note Computer Assy, Emission Control
1985-10 → 1986-08 ended
KM36 5F;KM30 DLX —
89550-27170 note Computer Assy, Emission Control
1986-08 → 1988-08 ended
KM30 DLX;KM36 LHD 5F —
89590 — Computer Assy, Condition Indicator
89590-27020 Computer Assy, Condition Indicator
1985-10 → 1988-08 ended
CM35,KM36 RHD —
89590-27030 Computer Assy, Condition Indicator
1985-10 → 1988-08 ended
CM35,KM3# LHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
