Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

19 part groups · 4 illustrations

Illustrations

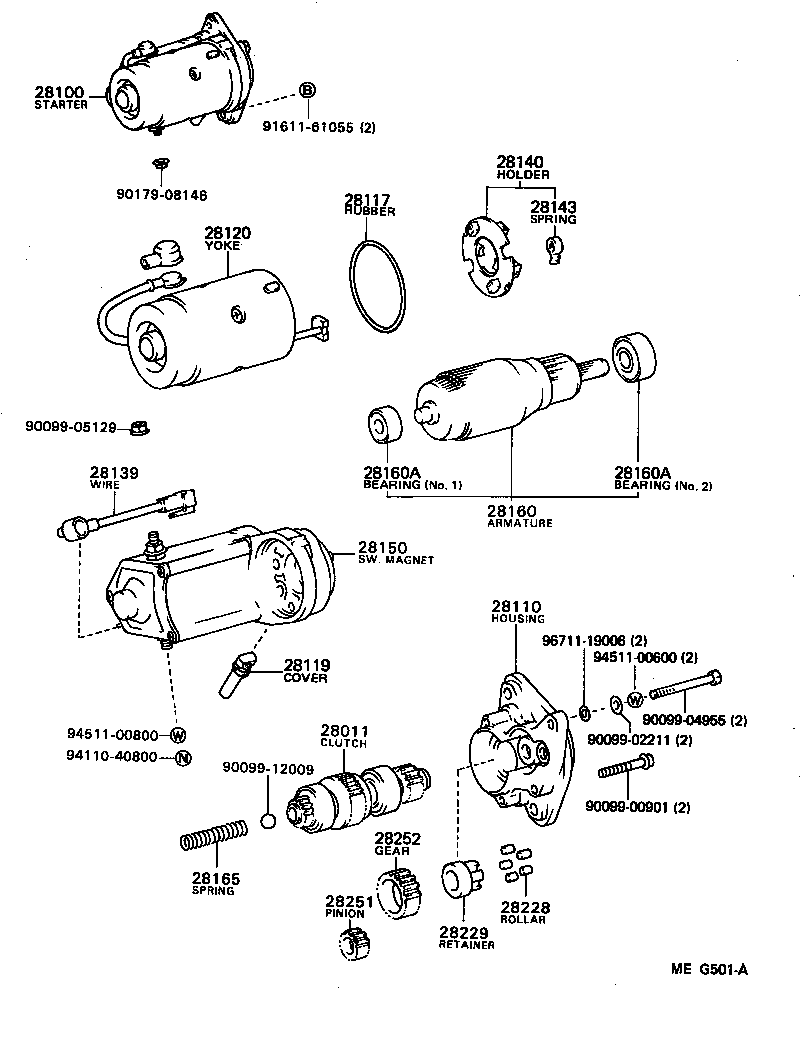

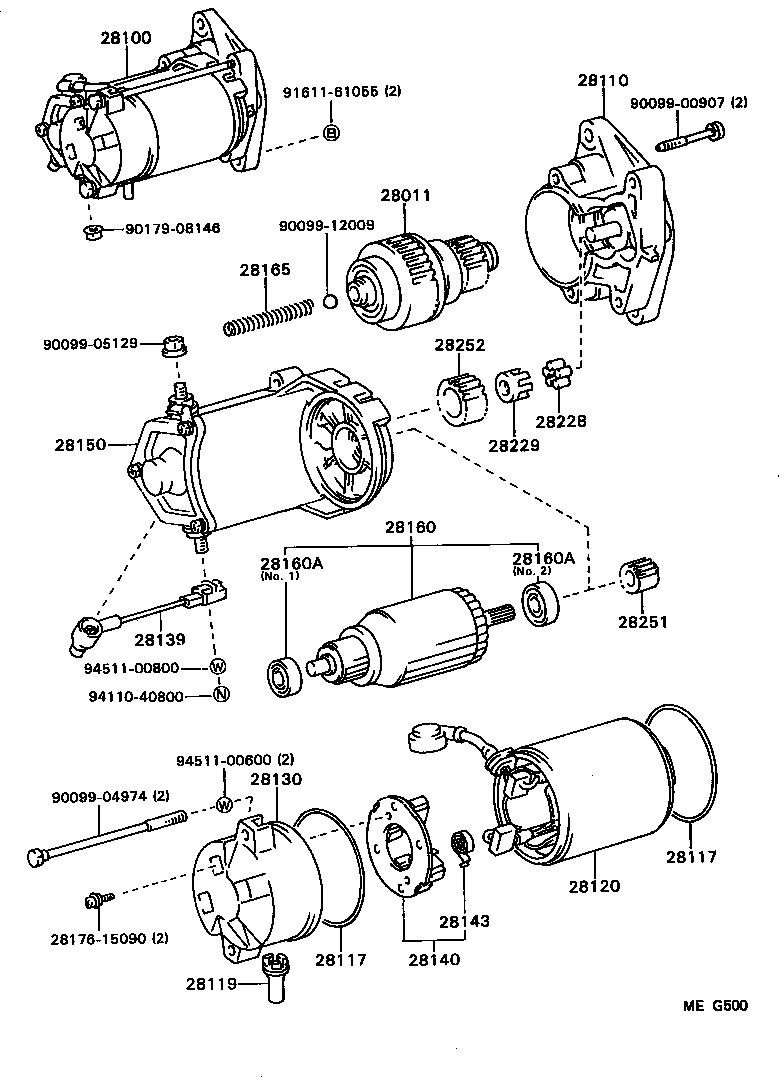

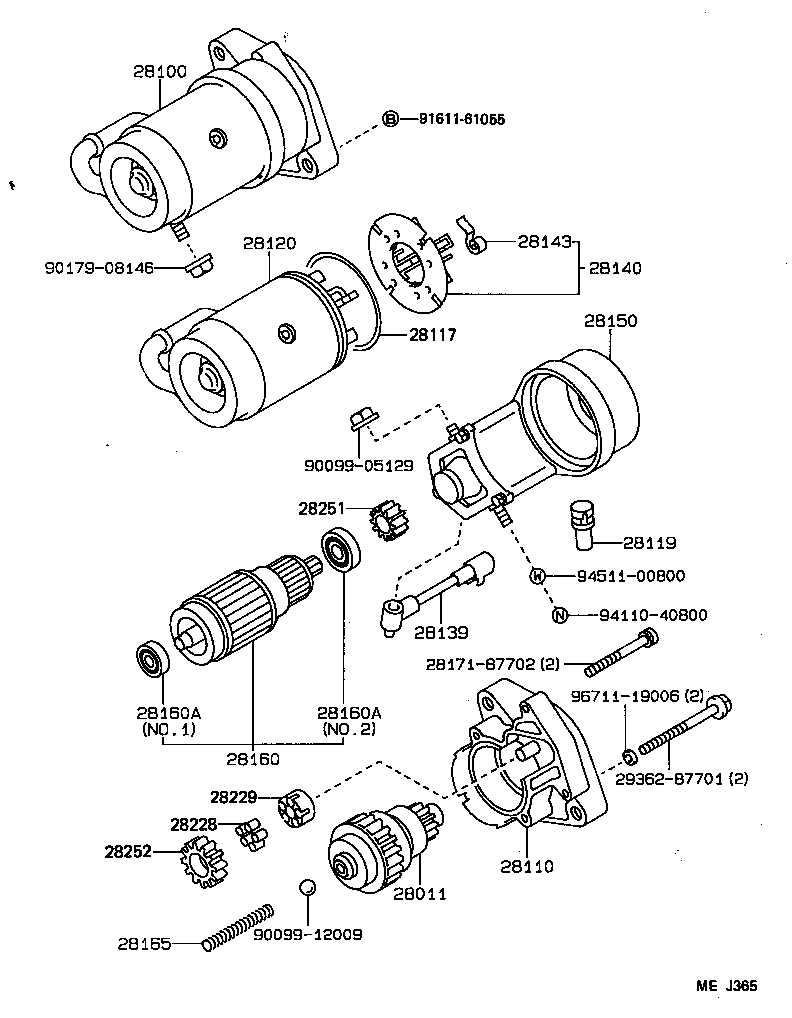

Figure MEG498 MEG498 1985-10 → — Figure MEG500 MEG500 1985-10 → — Figure MEG501A MEG501A 1985-10 → 1987-08 Figure MEJ365 MEJ365 1987-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28117 Rubber(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28165 Spring, Starter Magnet Switch Return
28199 Cover, Starter
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28251 Pinion, Starter Drive
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
