Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

11 part groups · 3 illustrations

Illustrations

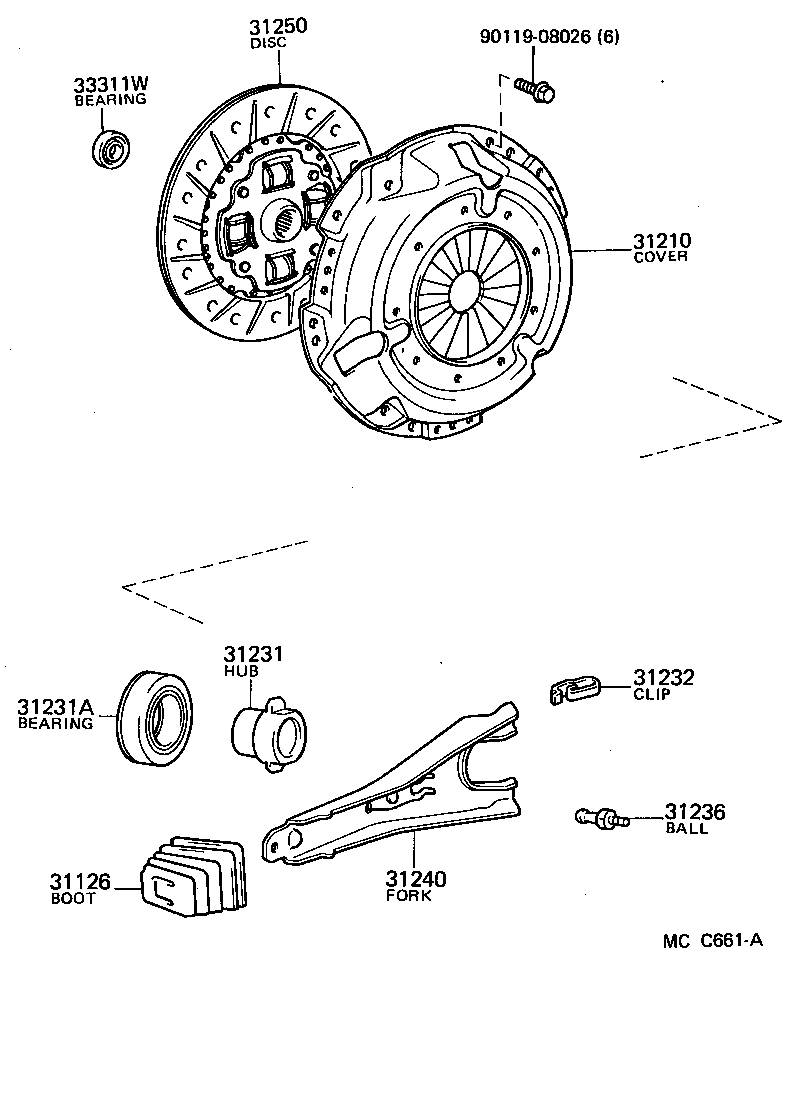

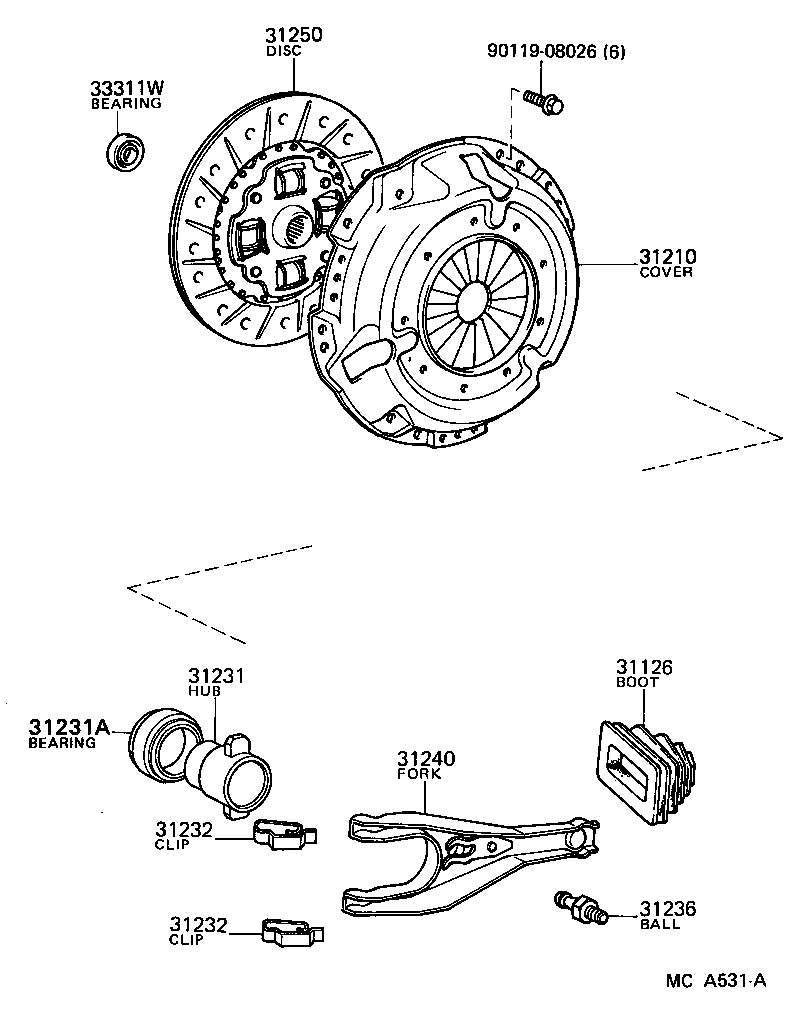

Figure MC9167A MC9167A 1985-10 → — Figure MCA531A MCA531A 1985-10 → — Figure MCC661A MCC661A 1985-10 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31210 Cover Assy, Clutch
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232 Clip OR Spring, Release Bearing Hub
31236 Ball, Release Fork
31238 Hanger, Release Fork Retracting Spring
31240 Fork Assy, Clutch Release
31240A Spring, Tension(FOR CLUTCH RELEASE FORK RETURN)
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
