Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

19 part groups · 4 illustrations

Illustrations

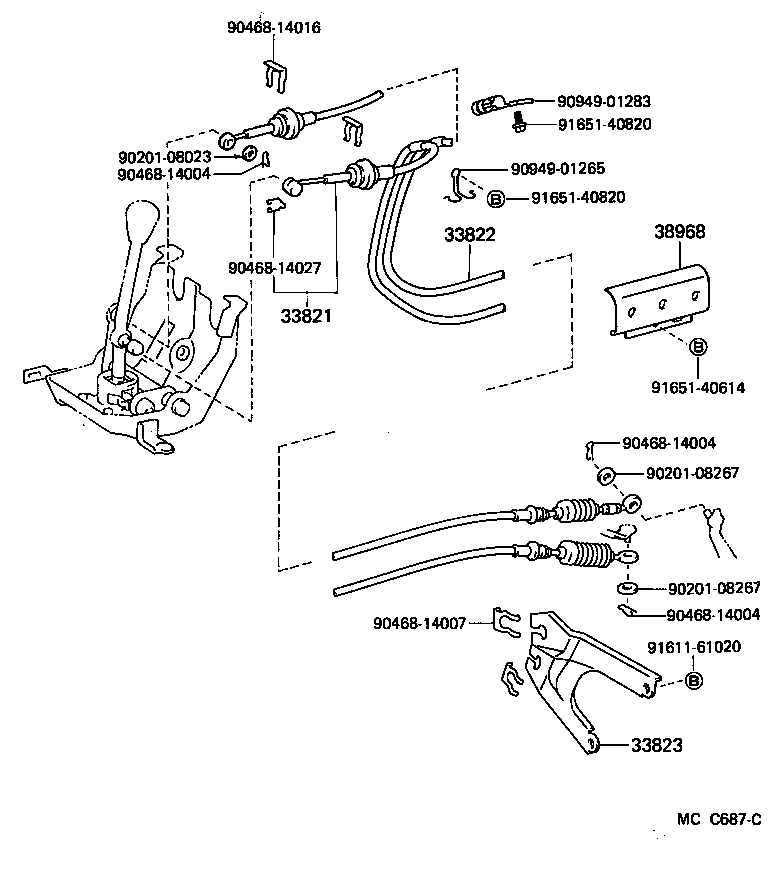

Figure MCC681A MCC681A 1985-10 → — Figure MCC682B MCC682B 1985-10 → — Figure MCC859B MCC859B 1985-10 → — Figure MCC687C MCC687C 1985-10 → —

Part groups

PNCDescription
33503F Lever Sub-assy, Shift(FOR FLOOR SHIFT)
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33506Q Grommet, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33506S Collar, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
33539 Cushion, Shift Lever Anti-rattle
33548F Bush, NO.1, Shift Lever (FOR FLOOR SHIFT)
33554 Cap, Shift Lever
33556B Bush (FOR TRANSMISSION SHIFT LEVER BALL SEAT)
33556F Seat, Transmission Shift Lever Ball
33602B Bushing (FOR SELECT LEVER)
33602C Bolt (FOR SELECT LEVER)
33602D Collar (FOR SELECT LEVER)
33602E Spring, Torsion (FOR SELECT LEVER)
33602F Lever Sub-assy, Select (FOR FLOOR SHIFT)
33821 Cable Transmission Control Shift (FOR FLOOR SHIFT)
33822 Cable Transmission Control Select (FOR FLOOR SHIFT)
33823 Bracket, Transmission Control Cable, NO.1
38968 Protector, Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
