Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

28 part groups · 3 illustrations

Illustrations

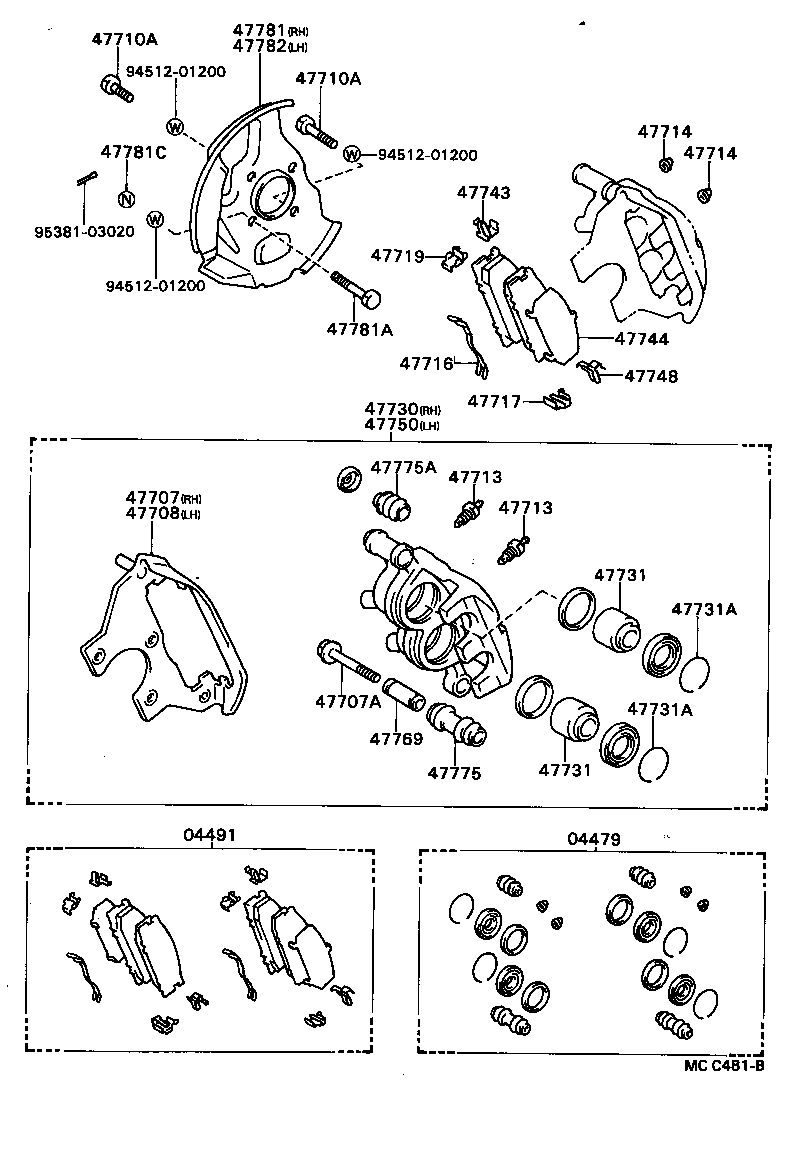

Figure MC9094A MC9094A 1985-10 → — Figure MCC481B MCC481B 1985-10 → — Figure MCT614 MCT614 1985-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
47707 Plate Sub-assy, Disc Brake Torque, Front RH
47707A Bolt, Hexagon(FOR FRONT DISC BRAKE TORQUE PLATE)
47708 Plate Sub-assy, Disc Brake Torque, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47713 Plug, Bleeder(FOR FRONT DISC BRAKE)
47714 Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47719 Plate, Front Disc Brake Pad Guide
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743 Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775A Boot, Pin
47781 Cover, Disc Brake Dust, Front RH
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
