Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

33 part groups · 2 illustrations

Illustrations

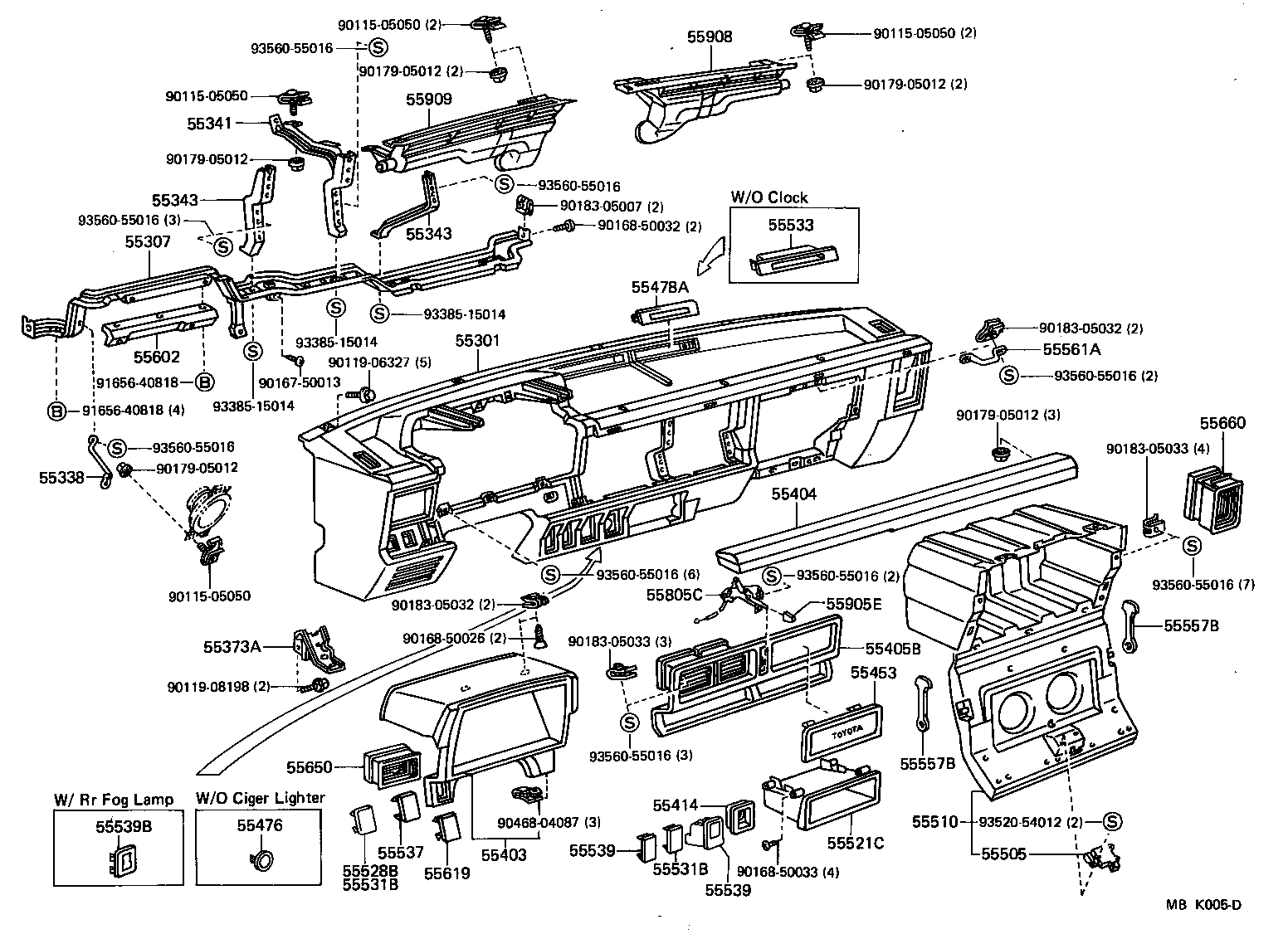

Figure MBK004B MBK004B 1985-10 → — Figure MBK005D MBK005D 1985-10 → —

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55307 Reinforcement Sub-assy, Instrument Panel, Lower
55338 Extension, Instrument Panel Reinforcement, NO.1
55341 Brace, Instrument Panel, NO.1
55343 Brace, Instrument Panel, NO.3
55373A Bracket, Oil Reservoir Tank
55403 Hood Sub-assy, Meter
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55414 Bezel, Cigar Lighter Hole
55453 Cover, Radio Tuner Opening
55476 Cover, Cigarette Lighter Hole
55478A Bezel, Auto Clock Hole
55505 Lock Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55521C Cover, Stereo Opening
55528B Cover, Headlamp Cleaner
55531B Cover, Choke Knob Hole
55533 Cover, Auto Clock Hole
55537 Cover, Rear Window Defogger Switch Hole
55539 Cover, Spare Switch Hole
55539B Cover, Spare Switch Hole, NO.2
55557B Stopper, Glove Compertment Door Check
55561A Striker, Glove Compartment Door Lock
55602 Stay Sub-assy, Steering Column, Upper
55619 Cover, Switch Hole
55619A Cover, Switch Hole, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55805C Bracket Sub-assy, Air Damper Control Lever
55905E Knob Sub-assy, Control
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
