Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

23 part groups · 2 illustrations

Illustrations

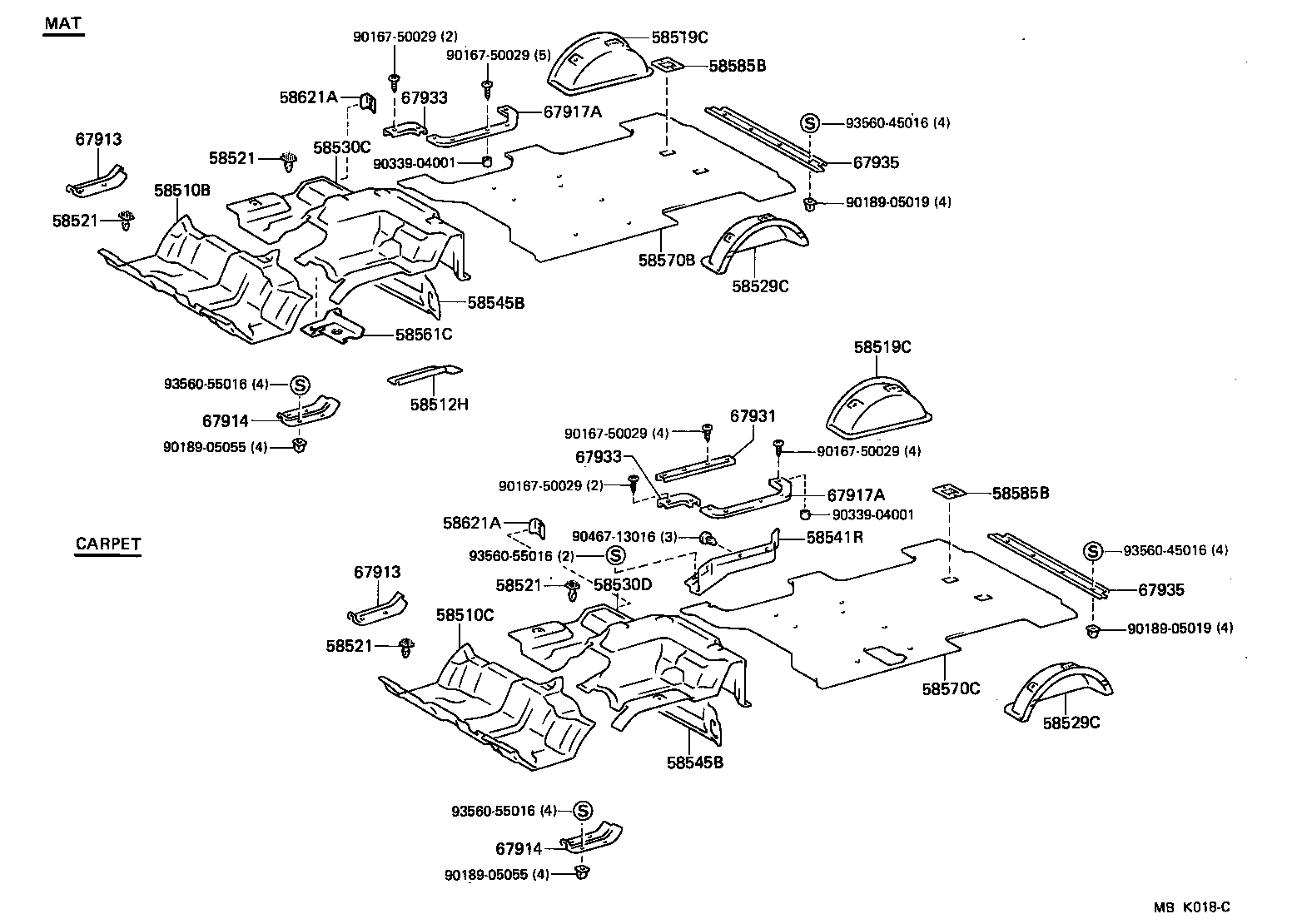

Figure MBK017D MBK017D 1985-10 → — Figure MBK018C MBK018C 1985-10 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58512H Mat, Floor, Front LH
58519C Carpet, Rear Wheel House, RH
58521 Hook, Male, NO.1
58529C Carpet, Rear Wheel House, LH
58530C Mat, Front Floor, Rear
58530D Carpet, Front Floor, Rear
58541R Carpet, Step, RH
58545B Silencer, Header Panel
58561C Silencer, Front Floor, NO.1
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58585B Cover, Rear Floor Seat Lock
58621A Plate, Mat Set, NO.1 LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67931 Plate, Quarter Scuff, Outer RH
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
