Toyota Liteace Van,Wagon
1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe
Discontinued model
Data version 1988-12

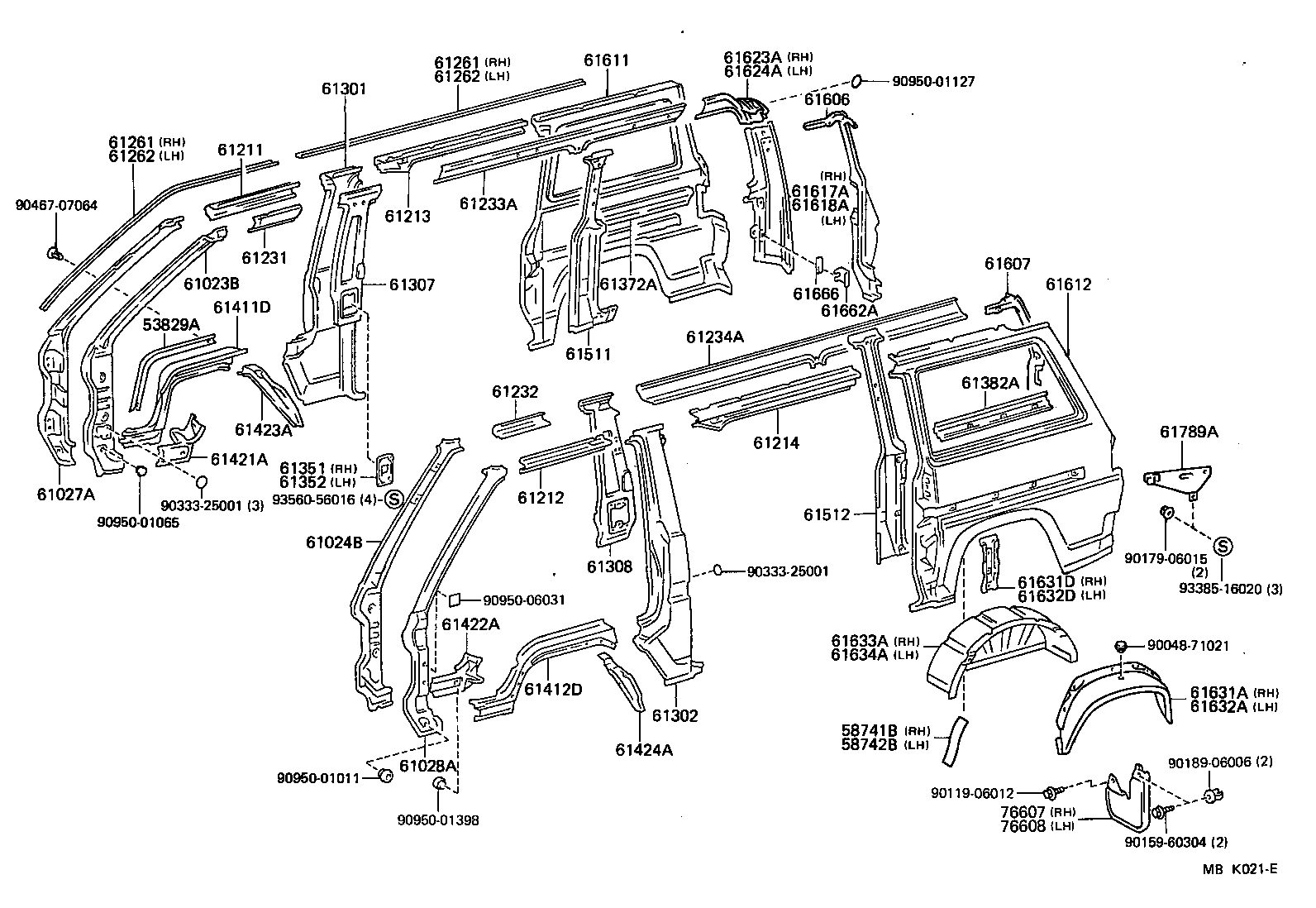

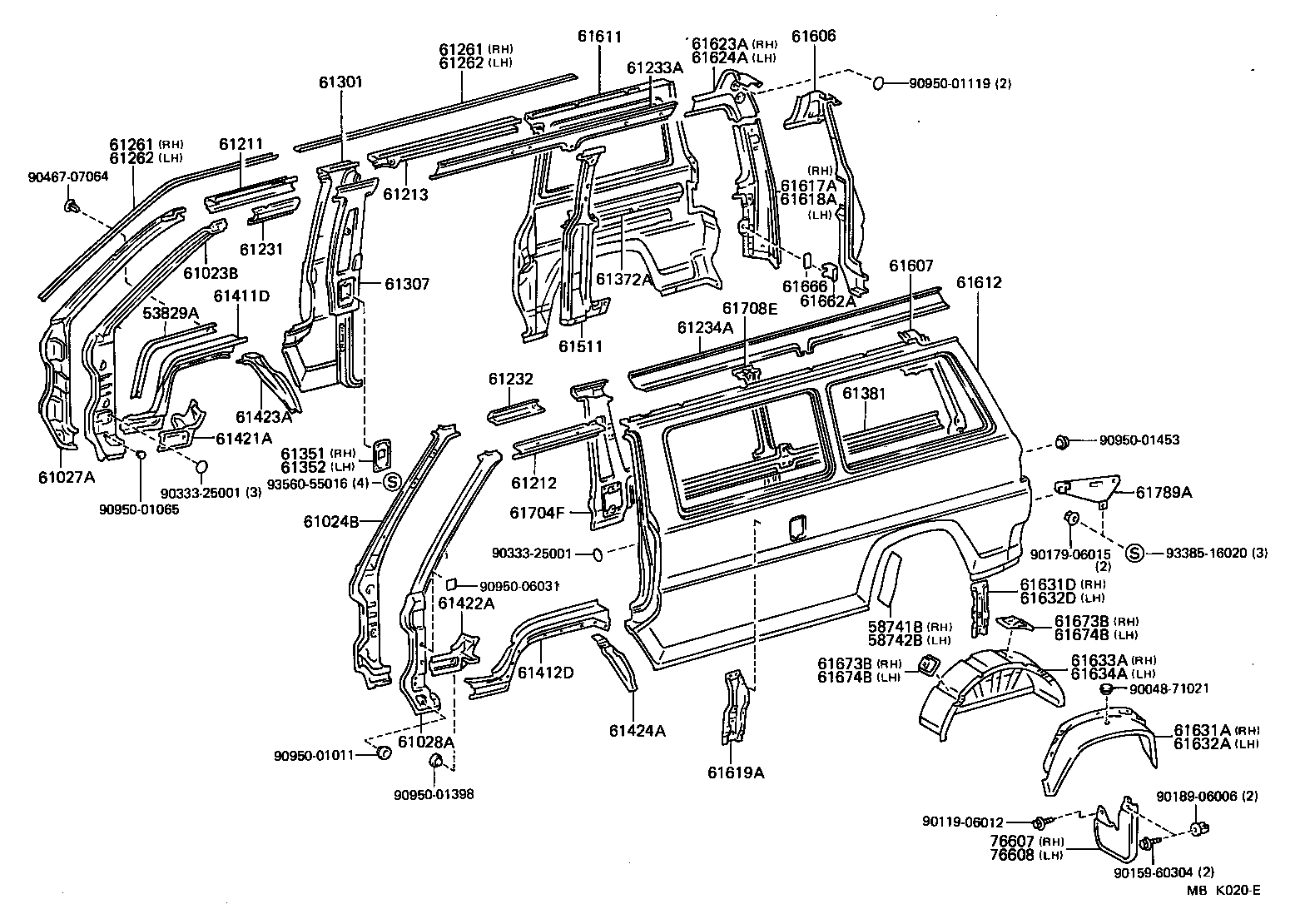

Side Member
62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53829A | Protector, Front Fender, Lower |
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61027A | Pillar Sub-assy, Front Body, Outer RH |
| 61028A | Pillar Sub-assy, Front Body, Outer LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61213 | Rail, Roof Side, Outer Rear RH |
| 61214 | Rail, Roof Side, Outer Rear LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61261 | Channel, Roof Drip, RH |
| 61262 | Channel, Roof Drip, LH |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61339B | Seal, Center Body Pillar, Inner NO.1 |
| 61351 | Cover, Center Body, Inner RH |
| 61352 | Cover, Center Body, Inner, LH |
| 61371 | Rail, NO.1 Center Inner, RH |
| 61372A | Rail, NO.2 Center, Inner RH |
| 61381 | Rail, NO.1 Center Inner, LH |
| 61382A | Rail, NO.2 Center, Inner LH |
| 61411D | Panel, Fender, Outer RH |
| 61412D | Panel, Fender, Outer LH |
| 61421A | Panel, Fender, Inner RH |
| 61422A | Panel, Fender, Inner LH |
| 61423A | Panel, Fender, Inner Lower RH |
| 61424A | Panel, Fender, Inner Lower LH |
| 61511 | Pillar, Quarter Lock, RH |
| 61512 | Pillar, Quarter Lock, LH |
| 61606 | Frame Sub-assy, Back Door Opening Side, RH |
| 61607 | Frame Sub-assy, Back Door Opening Side, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61617A | Panel, Quarter Inner, Rear RH |
| 61618A | Panel, Quarter, Inner Rear LH |
| 61619A | Reinforcement, Quarter Panel |
| 61623A | Extension, Quarter Panel, Outer RH |
| 61624A | Extension, Quarter Panel, Outer LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61631D | Reinforcement, Quarter Wheel House, RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61632D | Reinforcement, Quarter Wheel House, LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61662A | Plate, Quarter Panel Outer Extension, Lower Rear |
| 61666 | Seal, Quarter Panel |
| 61673B | Reinforcement, Quarter Wheel House, Inner RH |
| 61674B | Reinforcement, Quarter Wheel House, Inner LH |
| 61703F | Panel Sub-assy, Quarter, Inner Front RH |
| 61704F | Panel Sub-assy, Quarter, Inner Front LH |
| 61707E | Extension, Quarter Inner Panel, RH |
| 61708E | Extension, Quarter Inner Panel, LH |
| 61789A | Weight, Quarter Panel |
| 76607 | Mudguard Sub-assy, Quarter Panel, Rear RH |
| 76608 | Mudguard Sub-assy, Quarter Panel, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
