Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

18 part groups · 2 illustrations

Illustrations

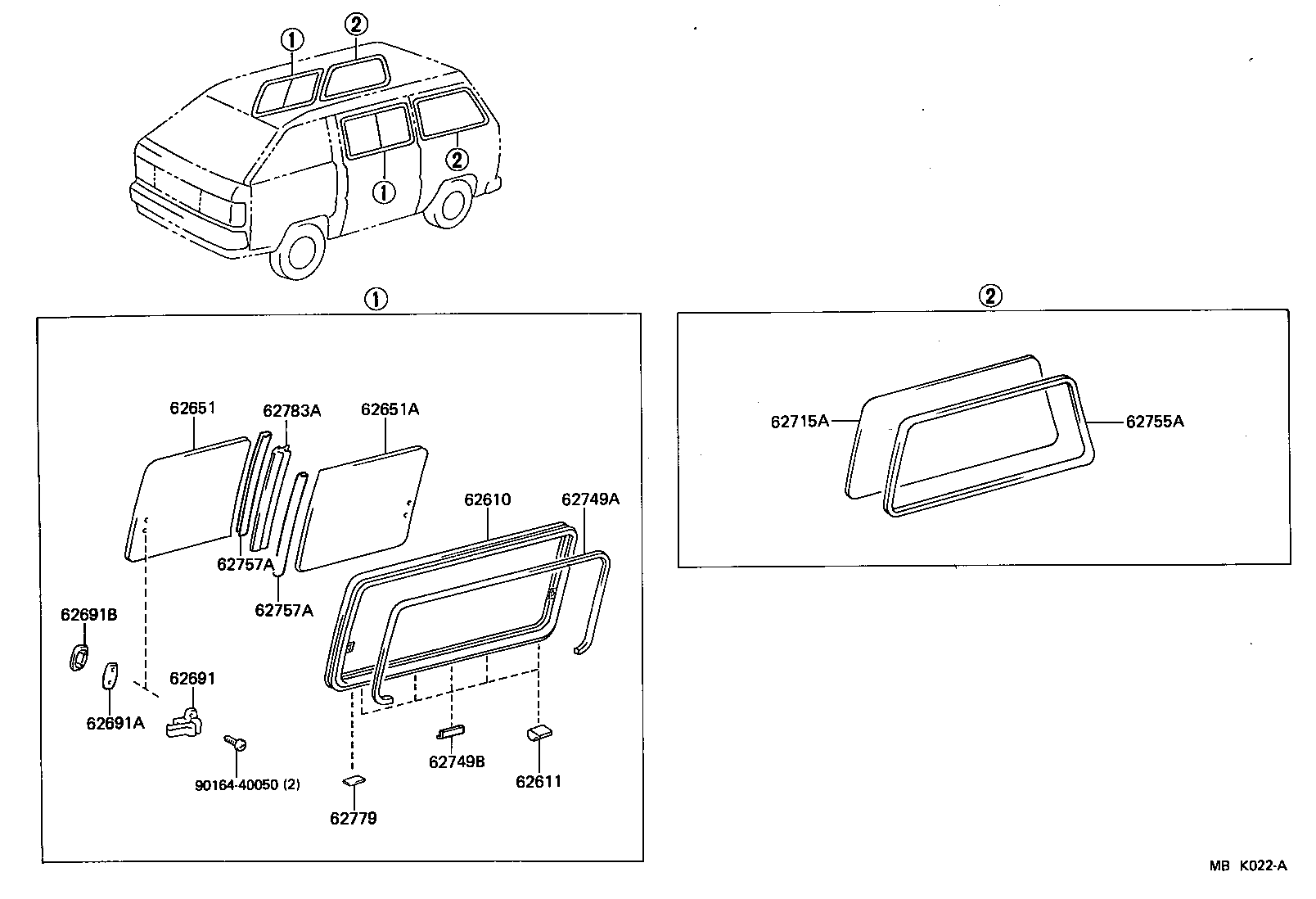

Figure MBJ966C MBJ966C 1985-10 → — Figure MBK022A MBK022A 1985-10 → —

Part groups

PNCDescription
62610 Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62611 Spacer, Side Window Support, NO.1
62651 Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62691 Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
62691A Packing, Side Window Lock, NO.1
62691B Retainer, Side Window Lock, NO.1
62715A Glass, Side Window, NO.2(FOR FIXED TYPE)
62715E Panel, Side Rear Window, RH
62716E Panel, Side Rear Window, LH
62749A Seal, Side Window, Upper
62749B Seal, Side Window Frame
62751 Stop, Side Window Fix Glass
62755A Weatherstrip, Side Window, NO.2(FOR FIXED TYPE)
62757A Protector, Side Window Glass, NO.1
62779 Packing, Side Window Glass, NO.1
62783A Sash, Side Window, Center
62883 Guard Assy, Side Window
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
