Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 4 illustrations

Illustrations

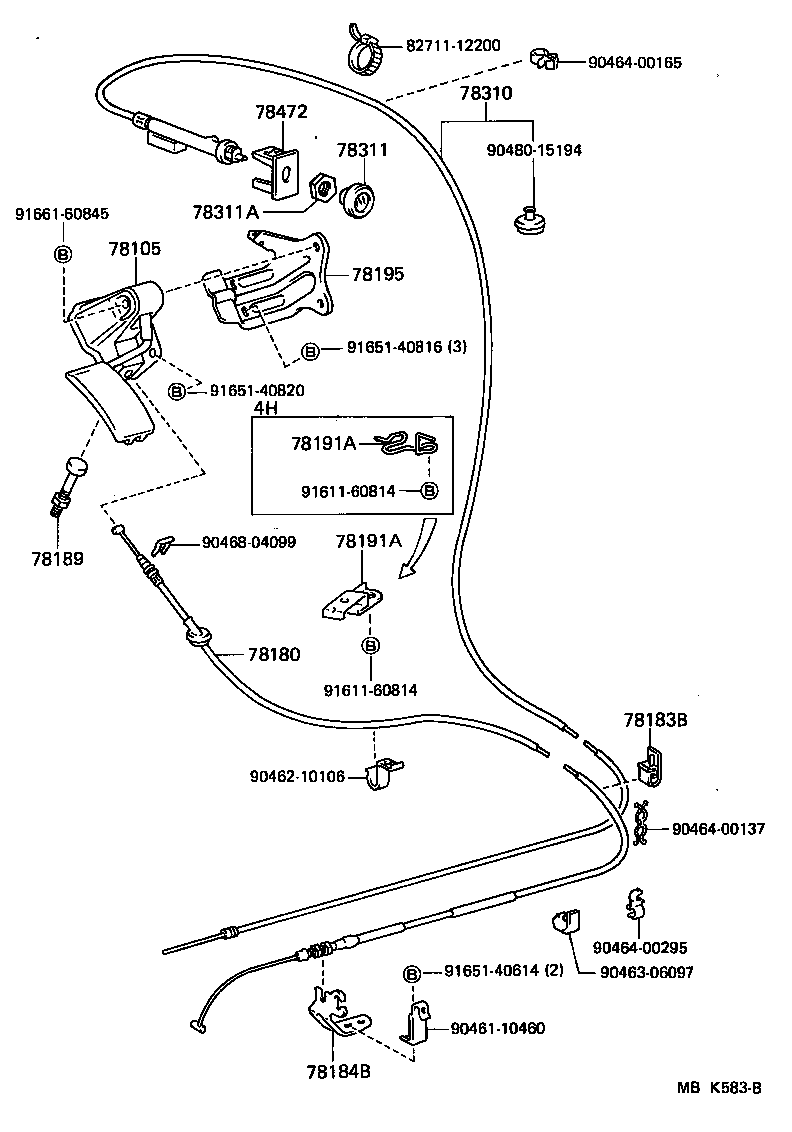

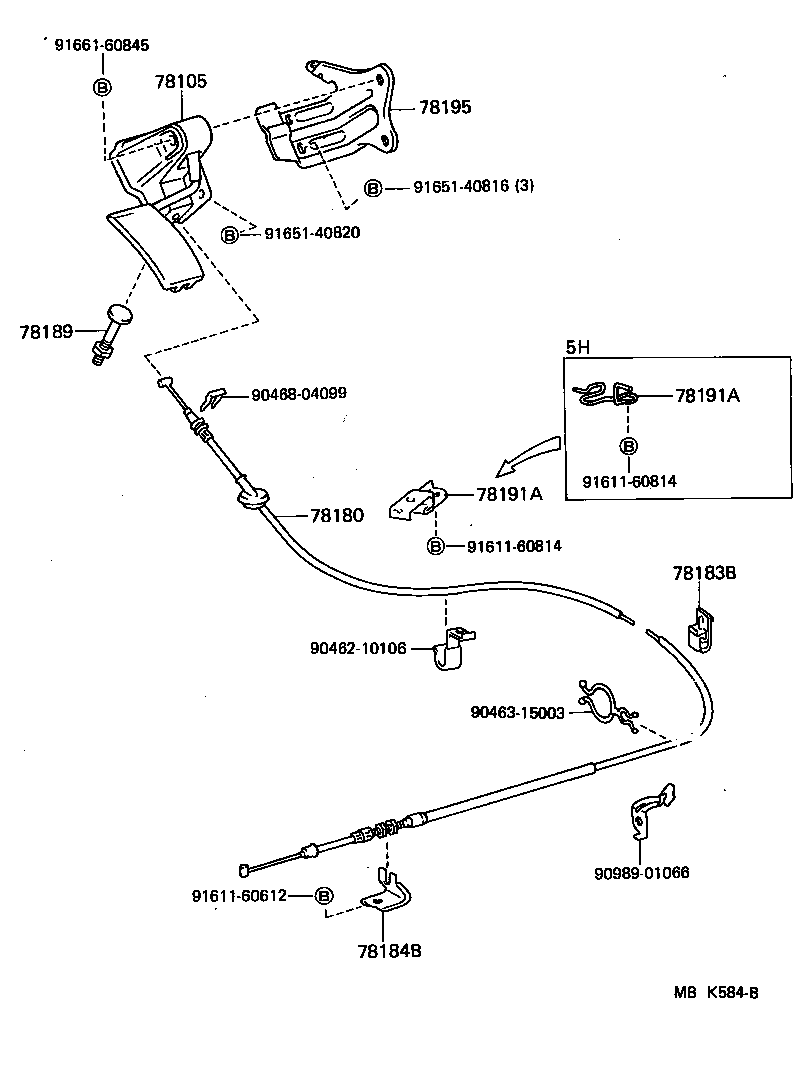

Figure MBJ935C MBJ935C 1985-10 → — Figure MBK583B MBK583B 1985-10 → — Figure MBJ938B MBJ938B 1985-10 → — Figure MBK584B MBK584B 1985-10 → —

Part groups

PNCDescription
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78195 Bracket, Accelerator Link
78310 Cable Assy, Choke
78310B Clamp, Choke Cable
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
