Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 2 illustrations

Illustrations

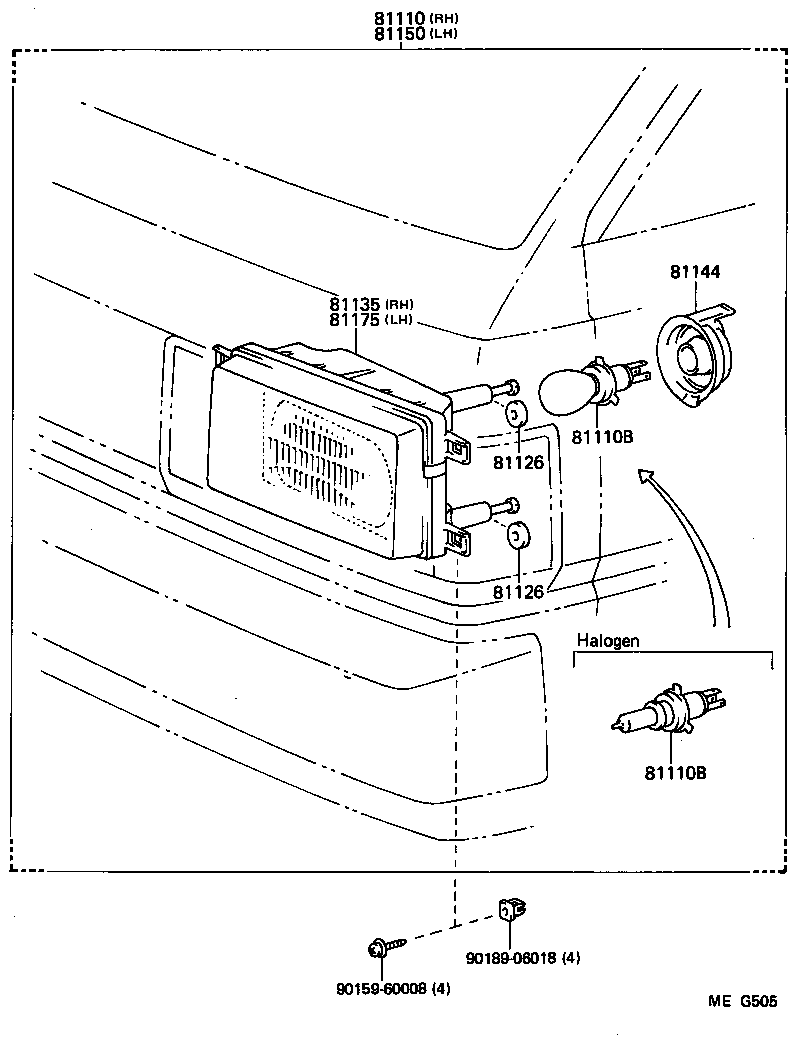

Figure MEG590 MEG590 1985-10 → — Figure MEG505 MEG505 1985-10 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81131 Screw, Headlamp Adjusting
81135 Unit Assy, Headlamp, RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
