Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 3 illustrations

Illustrations

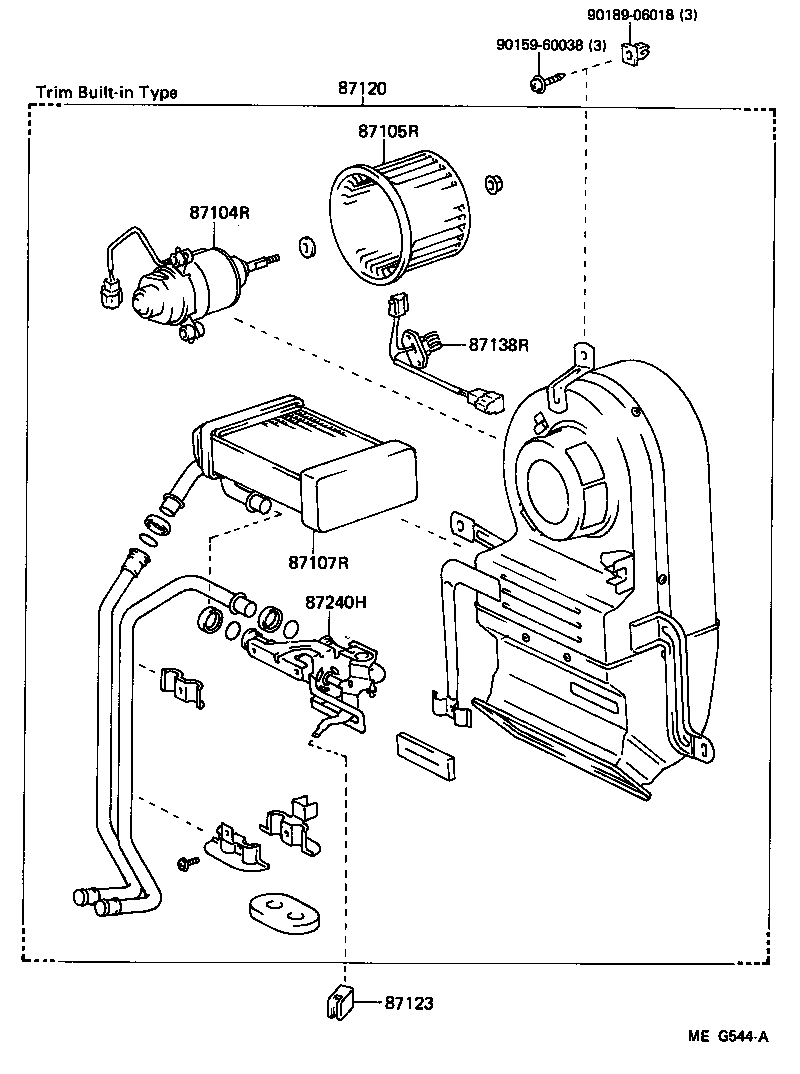

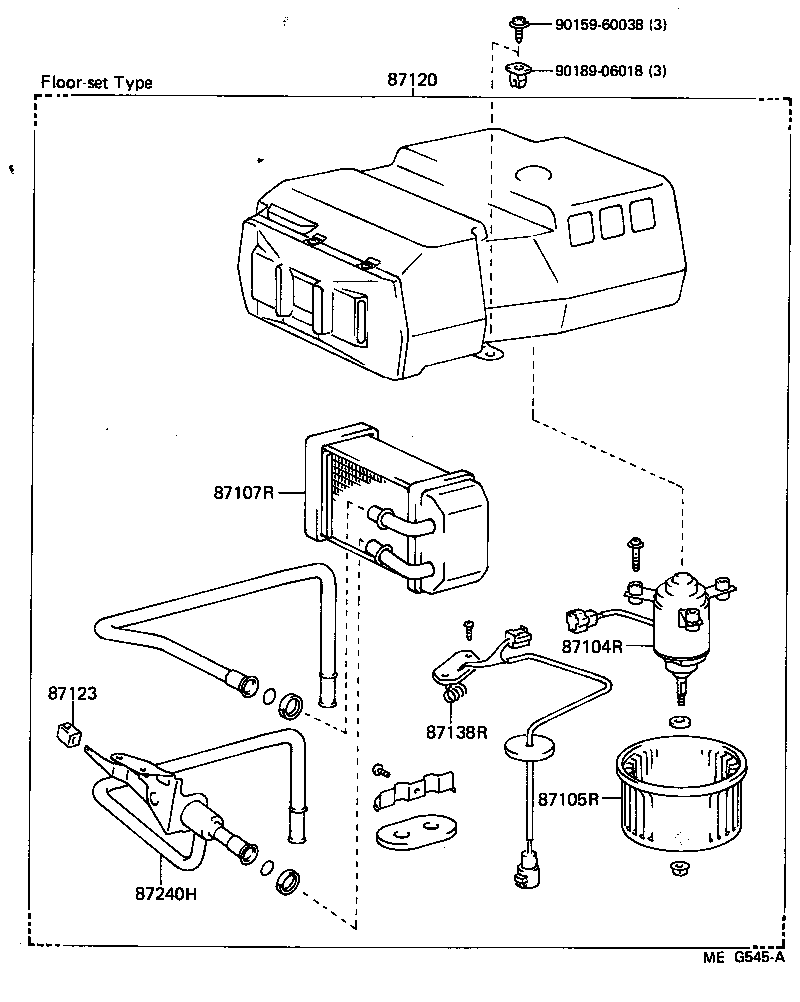

Figure MEG543A MEG543A 1985-10 → — Figure MEG544A MEG544A 1985-10 → — Figure MEG545A MEG545A 1985-10 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87123 Knob, Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87240H Valve Assy, Water Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
