Toyota Liteace Van,Wagon

1985-10 → 1988-08 · chassis KM3#,CM35 · catalogue 631530 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

17 part groups · 3 illustrations

Illustrations

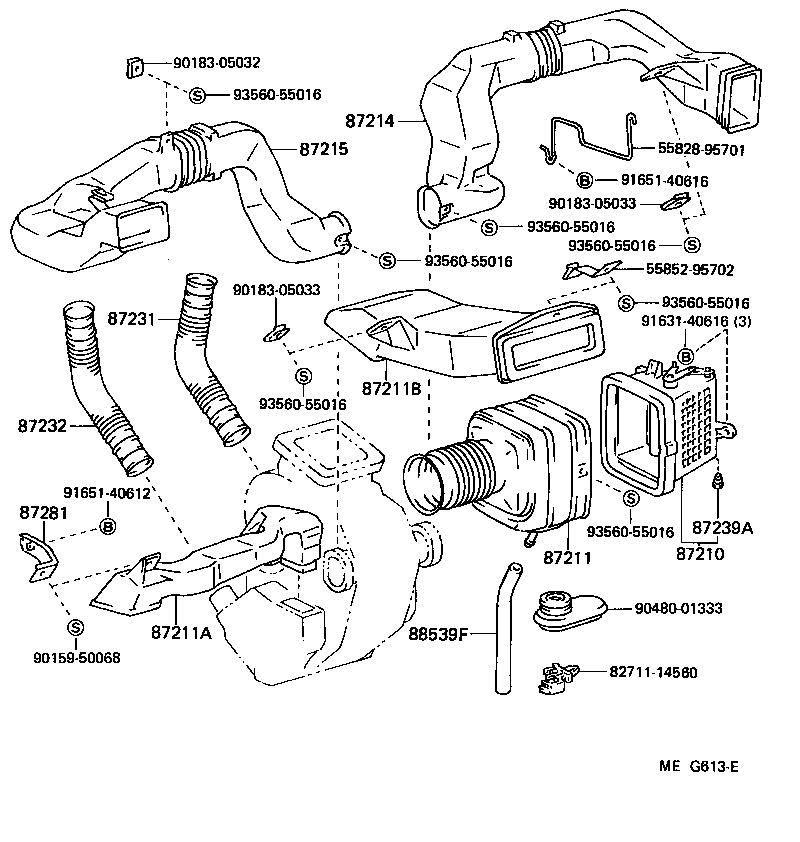

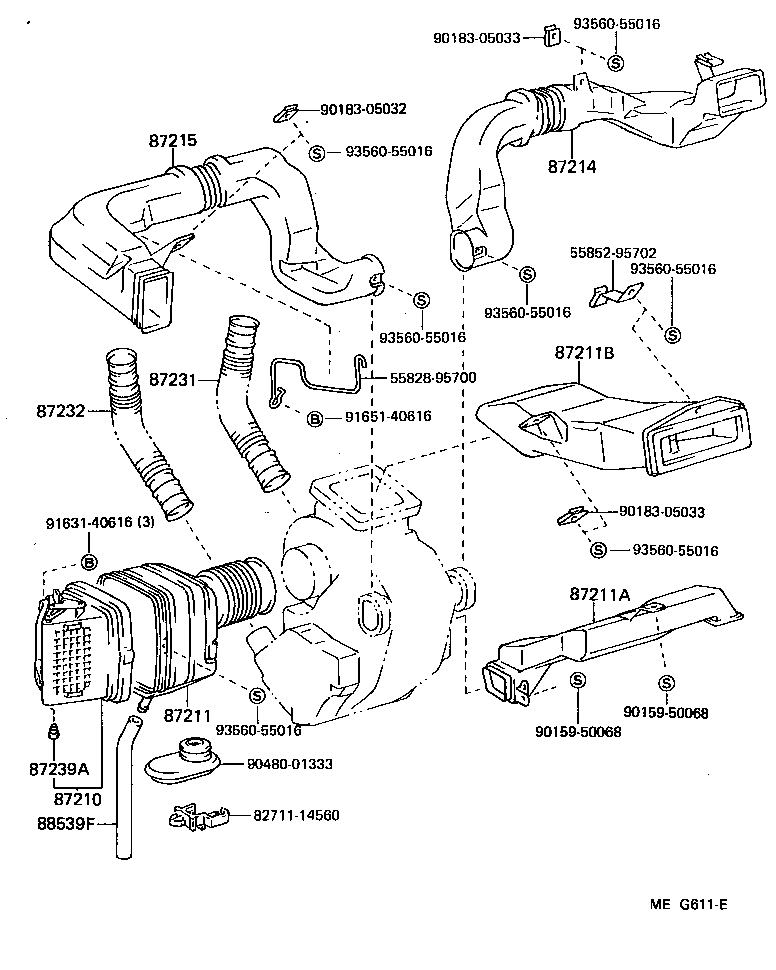

Figure MEG548B MEG548B 1985-10 → — Figure MEG611E MEG611E 1985-10 → — Figure MEG613E MEG613E 1985-10 → —

Part groups

PNCDescription
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87239A Cover, Heater Inlet Hole
87281 Bracket, Air Duct
88539F Hose, Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
