Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

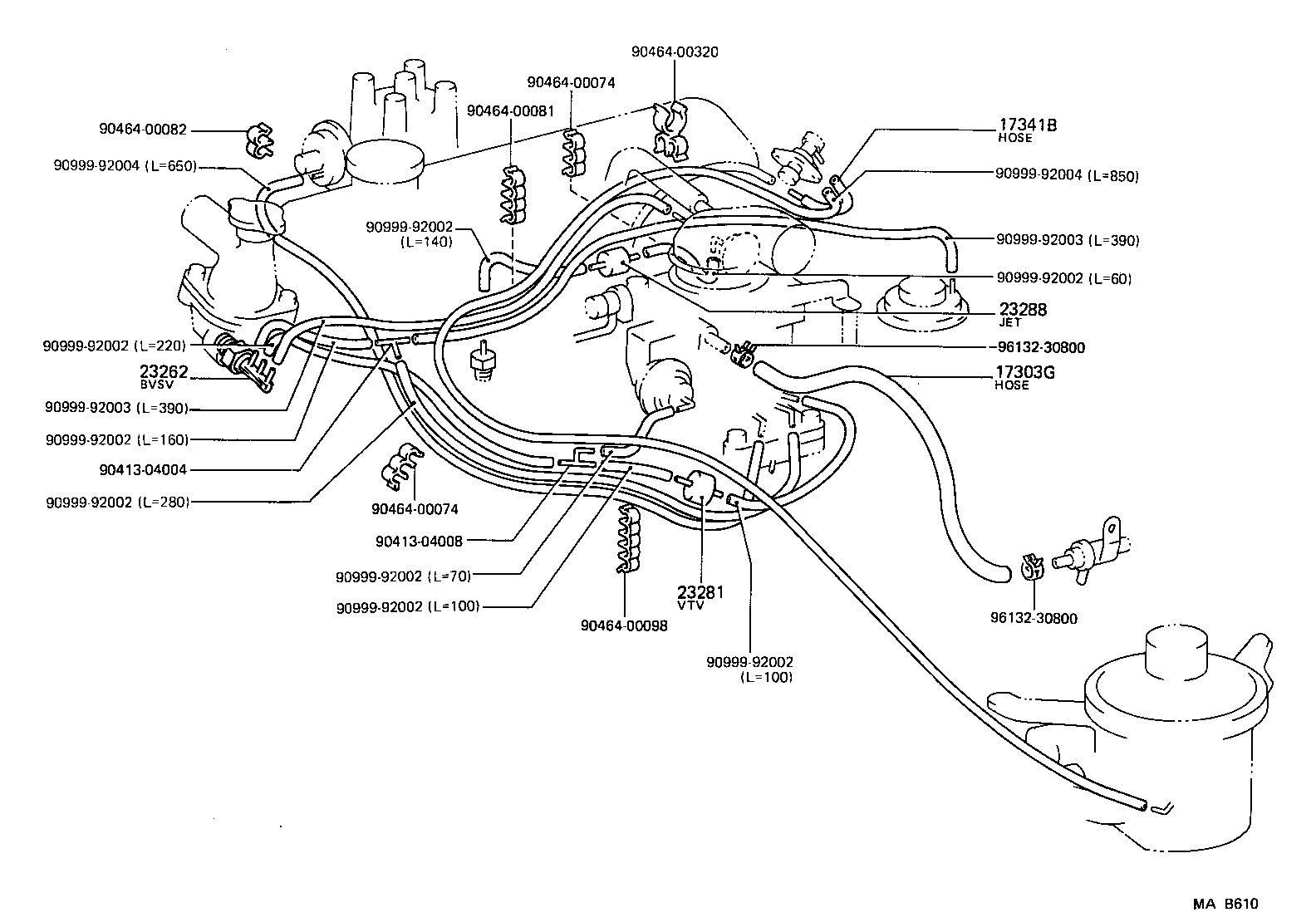

Exploded illustration MAB610 9046400320 — not listed in this catalogue 9046400074 — not listed in this catalogue 9046400081 — not listed in this catalogue 17341B — HOSE, NO.1(FOR AIR INJECTION SYSTEM) (1 parts) 9046400082 — not listed in this catalogue 9099992004 — not listed in this catalogue 9099992004 — not listed in this catalogue 9099992002 — not listed in this catalogue 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 23288 — JET, NO.1 (1 parts) 9099992002 — not listed in this catalogue 9613230800 — not listed in this catalogue 23262 — VALVE, BIMETAL VACUUM SWITCHING, NO.1 (6 parts) 17303G — HOSE, NO.3(FOR AIR PIPE) (2 parts) 9099992003 — not listed in this catalogue 9099992002 — not listed in this catalogue 9041304004 — not listed in this catalogue 9099992002 — not listed in this catalogue 9046400074 — not listed in this catalogue 9041304008 — not listed in this catalogue 9099992002 — not listed in this catalogue 23281 — VALVE, VACUUM TRANSMITTING, NO.1 (5 parts) 9099992002 — not listed in this catalogue 9613230800 — not listed in this catalogue 9046400098 — not listed in this catalogue 9099992002 — not listed in this catalogue
MAB610 · 5 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
17303G — Hose, NO.3(FOR AIR PIPE)
23826-13070 Hose, NO.3(FOR AIR PIPE)
1988-08 → 1992-01 ended
5K KM36 RHD —
23826-13081 Hose, NO.3(FOR AIR PIPE)
1988-08 → 1992-01 ended
5K KM3# LHD —
17341B — Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341-10010 Hose, NO.1(FOR AIR INJECTION SYSTEM)
1988-08 → 1992-01 ended
5K KM3# —
23262 — Valve, Bimetal Vacuum Switching, NO.1
90925-05051 Valve, Bimetal Vacuum Switching, NO.1
1988-08 → 1989-08 ended
5K KM3# 02S,08S —
90925-05051 note Valve, Bimetal Vacuum Switching, NO.1
1988-08 → 1989-08 ended
5K KM36 4F 05S —
90925-05063 Valve, Bimetal Vacuum Switching, NO.1
1988-08 → 1989-08 ended
5K KM36 05S —
90925-05063 note Valve, Bimetal Vacuum Switching, NO.1
1988-08 → 1989-08 ended
5K KM36 V5D 5F —
90925-05063 note Valve, Bimetal Vacuum Switching, NO.1
1988-08 → 1989-08 ended
5K KM30 DLX;5K KM36 +4 —
90925-05063 Valve, Bimetal Vacuum Switching, NO.1
1989-08 → 1992-01 ended
5K KM3# —
23281 — Valve, Vacuum Transmitting, NO.1
90925-01014 note Valve, Vacuum Transmitting, NO.1
1988-08 → 1990-08 ended
5K KM36 V5D 5F —
90925-01014 note Valve, Vacuum Transmitting, NO.1
1988-08 → 1990-08 ended
5K KM30 DLX;5K KM36 +4 —
90925-01014 note Valve, Vacuum Transmitting, NO.1
1988-08 → 1992-01 ended
5K KM36 5F 05S —
90925-01014 note Valve, Vacuum Transmitting, NO.1
1990-08 → 1992-01 ended
5K KM30 DLX;5K KM36 +3 —
90925-01019 Valve, Vacuum Transmitting, NO.1
1988-08 → 1992-01 ended
5K KM3# —
23288 — Jet, NO.1
90925-04006 Jet, NO.1
1988-08 → 1992-01 ended
5K KM3# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
