Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09

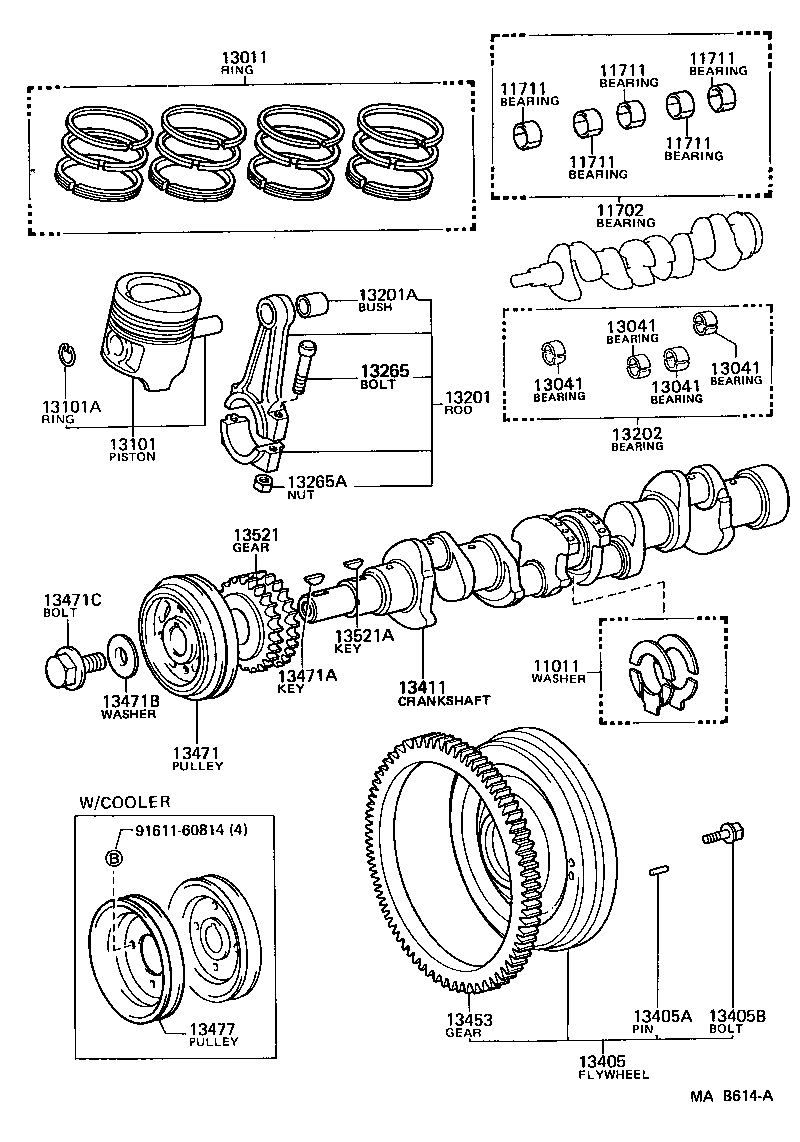

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11011 — Washer Set, Crankshaft Thrust | ||||
| 11011-22011 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11011-64010 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 11012-22011 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11012-64010 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 11013-22011 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11013-64010 note |
Washer Set, Crankshaft Thrust
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 11702 — Bearing Set, Crankshaft | ||||
| 11704-13011 note |
Bearing Set, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11704-64040 note |
Bearing Set, Crankshaft
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 11704-64050 note |
Bearing Set, Crankshaft
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 11705-13011 note |
Bearing Set, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11711 — Bearing, Crankshaft | ||||
| 11701-13011-03 note |
Bearing, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11701-13011-04 note |
Bearing, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11701-13011-05 note |
Bearing, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11701-13011-06 note |
Bearing, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11701-13011-07 note |
Bearing, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 11701-64040-01 note |
Bearing, Crankshaft
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 11701-64040-02 note |
Bearing, Crankshaft
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 11701-64040-03 note |
Bearing, Crankshaft
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 11701-64050-01 note |
Bearing, Crankshaft
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 11701-64050-02 note |
Bearing, Crankshaft
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 11701-64050-03 note |
Bearing, Crankshaft
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13011 — Ring Set, Piston | ||||
| 13011-13090 note |
Ring Set, Piston
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13011-64190 note |
Ring Set, Piston
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13013-13090 note |
Ring Set, Piston
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13013-64190 note |
Ring Set, Piston
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13041 — Bearing, Connecting Rod | ||||
| 13041-13040-03 note |
Bearing, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13041-13040-04 note |
Bearing, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13041-13040-05 note |
Bearing, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13041-13040-06 note |
Bearing, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13041-13040-07 note |
Bearing, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13041-64041-01 note |
Bearing, Connecting Rod
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13041-64041-02 note |
Bearing, Connecting Rod
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13041-64041-03 note |
Bearing, Connecting Rod
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13041-64050-01 note |
Bearing, Connecting Rod
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13041-64050-02 note |
Bearing, Connecting Rod
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13041-64050-03 note |
Bearing, Connecting Rod
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13101 — Piston Sub-assy, W/Pin | ||||
| 13101-13030-01 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13101-13030-02 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13101-13030-03 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13101-13040-01 note |
Piston Sub-assy, W/Pin
1990-08 → 1992-01
ended
|
5K KM30 DLX;5K KM36 +3 | — | |
| 13101-13040-01 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM36 5F 05S | — | |
| 13101-13040-01 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM30 DLX;5K KM36 +4 | — | |
| 13101-13040-01 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM36 V5D 5F | — | |
| 13101-13040-02 note |
Piston Sub-assy, W/Pin
1990-08 → 1992-01
ended
|
5K KM30 DLX;5K KM36 +3 | — | |
| 13101-13040-02 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM30 DLX;5K KM36 +4 | — | |
| 13101-13040-02 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM36 V5D 5F | — | |
| 13101-13040-02 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM36 5F 05S | — | |
| 13101-13040-03 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM30 DLX;5K KM36 +4 | — | |
| 13101-13040-03 note |
Piston Sub-assy, W/Pin
1990-08 → 1992-01
ended
|
5K KM30 DLX;5K KM36 +3 | — | |
| 13101-13040-03 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM36 V5D 5F | — | |
| 13101-13040-03 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM36 5F 05S | — | |
| 13101-64110-01 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13101-64110-02 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13101-64110-03 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13103-13030 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13103-13040 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
5K KM36 5F 05S | — | |
| 13103-13040 note |
Piston Sub-assy, W/Pin
1990-08 → 1992-01
ended
|
5K KM30 DLX;5K KM36 +3 | — | |
| 13103-13040 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM36 V5D 5F | — | |
| 13103-13040 note |
Piston Sub-assy, W/Pin
1988-08 → 1990-08
ended
|
5K KM30 DLX;5K KM36 +4 | — | |
| 13103-64110 note |
Piston Sub-assy, W/Pin
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13101A — Ring, Hole Snap(FOR PISTON PIN) | ||||
| 90521-21088 |
Ring, Hole Snap(FOR PISTON PIN)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 90521-29003 |
Ring, Hole Snap(FOR PISTON PIN)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13201 — Rod Sub-assy, Connecting | ||||
| 13201-13010 |
Rod Sub-assy, Connecting
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13201-69065 |
Rod Sub-assy, Connecting
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13201-69115 |
Rod Sub-assy, Connecting
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13201A — Bush(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73070 |
Bush(FOR CONNECTING ROD SMALL END)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 90999-73102 |
Bush(FOR CONNECTING ROD SMALL END)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13202 — Bearing Set, Connecting Rod | ||||
| 13204-13040 note |
Bearing Set, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13204-64041 note |
Bearing Set, Connecting Rod
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13204-64050 note |
Bearing Set, Connecting Rod
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13205-13040 note |
Bearing Set, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13206-13040 note |
Bearing Set, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13265 — Bolt, Connecting Rod | ||||
| 13265-49015 |
Bolt, Connecting Rod
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13265-70020 |
Bolt, Connecting Rod
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13265A — Nut, Hexagon(FOR CONNECTING ROD BOLT) | ||||
| 90179-09006 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 90179-10042 |
Nut, Hexagon(FOR CONNECTING ROD BOLT)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13405 — Flywheel Sub-assy | ||||
| 13405-29125 |
Flywheel Sub-assy
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13405-64040 |
Flywheel Sub-assy
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13405A — Pin, Straight(FOR FLYWHEEL) | ||||
| 90250-08054 note |
Pin, Straight(FOR FLYWHEEL)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 90250-08120 note |
Pin, Straight(FOR FLYWHEEL)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13405B — Bolt, Flywheel Setting | ||||
| 90105-10045 |
Bolt, Flywheel Setting
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 90913-01005 |
Bolt, Flywheel Setting
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13411 — Crankshaft | ||||
| 13411-13900 |
Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13411-64900 |
Crankshaft
1988-08 → 1991-04
ended
|
2C CM3# | — | |
| 13411-64901 |
Crankshaft
1991-04 → 1992-01
ended
|
2C CM3# | — | |
| 13453 — Gear, Flywheel Ring | ||||
| 13453-10010 |
Gear, Flywheel Ring
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13453-64011 |
Gear, Flywheel Ring
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13471 — Pulley, Crankshaft | ||||
| 13408-13010 |
Pulley, Crankshaft
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13408-64050 |
Pulley, Crankshaft
1988-08 → 1990-08
ended
|
2C CM3# | — | |
| 13408-64080 |
Pulley, Crankshaft
1990-08 → 1992-01
ended
|
2C CM3# | — | |
| 13471A — Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 95161-20516 |
Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
| 13471B — Washer, Plate(FOR CRANKSHAFT PULLEY SET) | ||||
| 90201-14007 |
Washer, Plate(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1990-06
ended
|
2C CM3# | — | |
| 90201-14030 |
Washer, Plate(FOR CRANKSHAFT PULLEY SET)
1991-05 → 1992-01
ended
|
2C CM3# | — | |
| 90209-13003 |
Washer, Plate(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13471C — Bolt(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12051 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 90105-14077 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1990-06 → 1991-05
ended
|
2C CM3# | — | |
| 90105-14089 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1991-05 → 1992-01
ended
|
2C CM3# | — | |
| 91511-61435 |
Bolt(FOR CRANKSHAFT PULLEY SET)
1988-08 → 1990-06
ended
|
2C CM3# | — | |
| 13477 — Pulley, Crankshaft, NO.2 | ||||
| 88451-27020 |
Pulley, Crankshaft, NO.2
1989-03 → 1992-01
ended
|
5K KM30 | — | |
| 13521 — Gear OR Sprocket, Crankshaft Timing | ||||
| 13521-13020 |
Gear OR Sprocket, Crankshaft Timing
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 13521A — Key(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
Key(FOR CRANKSHAFT TIMING GEAR)
1988-08 → 1992-01
ended
|
5K KM3# | — | |
| 95161-20622 |
Key(FOR CRANKSHAFT TIMING GEAR)
1988-08 → 1992-01
ended
|
2C CM3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
