Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09

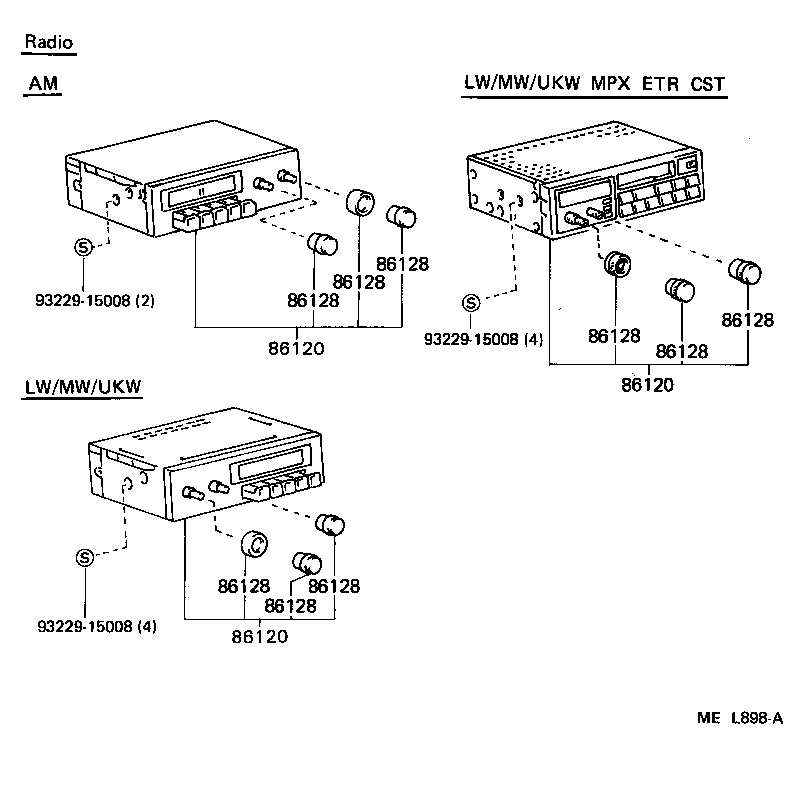

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120 — Receiver Assy, Radio | ||||
| 86120-16350 note |
Receiver Assy, Radio
1988-08 → 1992-01
ended
|
CM36,KM36 LHD | — | |
| 86120-22391 note |
Receiver Assy, Radio
1988-08 → 1989-10
ended
|
CM36,KM36 LHD | — | |
| 86120-2B110 note |
Receiver Assy, Radio
1989-10 → 1990-12
ended
|
CM3#,KM3# | — | |
| 86120-2B110 note |
Receiver Assy, Radio
1990-12 → 1991-02
ended
|
CM3#,KM3# | — | |
| 86120-2B180 note |
Receiver Assy, Radio
1991-02 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86120-32102 note |
Receiver Assy, Radio
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86120-32111 note |
Receiver Assy, Radio
1988-08 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86120-32241 note |
Receiver Assy, Radio
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86128 — Knob, Radio Receiver | ||||
| 86128-14680 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM36,KM36 LHD | — | |
| 86128-14720 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM36,KM36 LHD | — | |
| 86128-16040 note |
Knob, Radio Receiver
1988-08 → 1992-01
ended
|
CM36,KM36 LHD | — | |
| 86128-16060 note |
Knob, Radio Receiver
1988-08 → 1992-01
ended
|
CM36,KM36 LHD | — | |
| 86128-17230 note |
Knob, Radio Receiver
1990-12 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86128-17230 note |
Knob, Radio Receiver
1989-10 → 1990-12
ended
|
CM3#,KM3# | — | |
| 86128-17250 note |
Knob, Radio Receiver
1990-12 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86128-17250 note |
Knob, Radio Receiver
1989-10 → 1990-12
ended
|
CM3#,KM3# | — | |
| 86128-32060 note |
Knob, Radio Receiver
1989-10 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86128-32060 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86128-32080 note |
Knob, Radio Receiver
1989-10 → 1992-01
ended
|
CM3#,KM3# | — | |
| 86128-32080 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86128-32310 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86128-32330 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
| 86128-32410 note |
Knob, Radio Receiver
1988-08 → 1989-10
ended
|
CM3#,KM3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
