Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

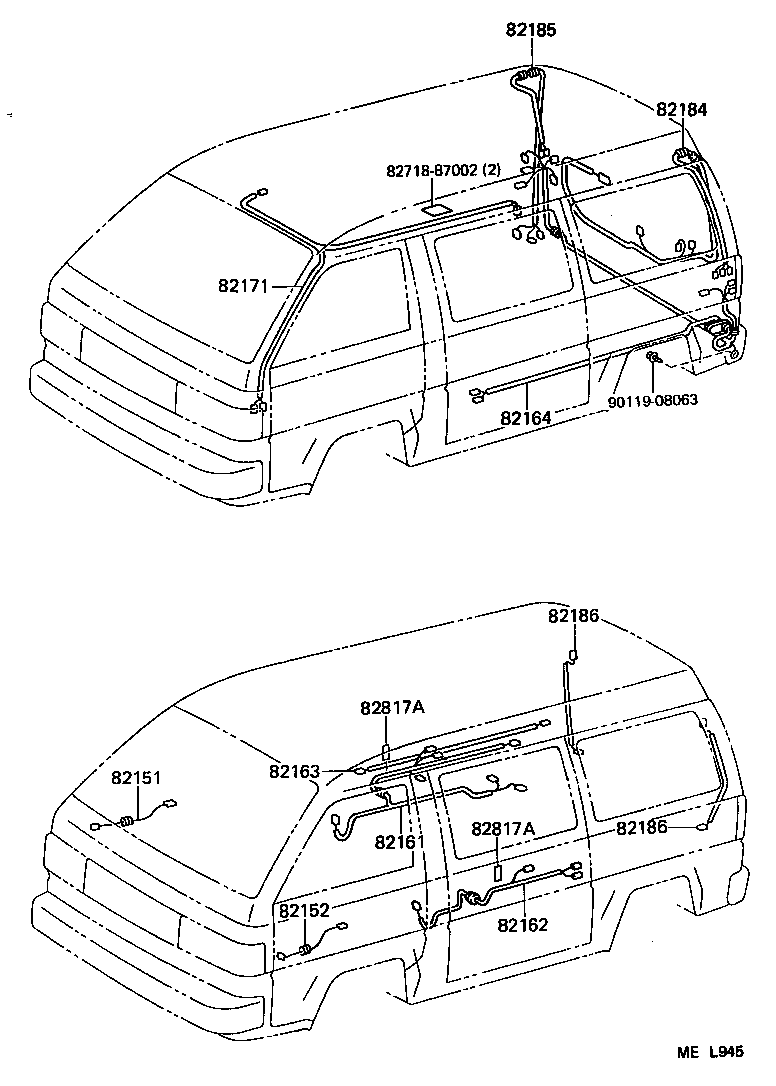

Exploded illustration MEL945 82185 — WIRE, BACK DOOR, NO.2 (1 parts) 82184 — WIRE, BACK DOOR, NO.1 (11 parts) 8271887002 — not listed in this catalogue 82171 — WIRE, ROOF, NO.1 (2 parts) 9011908063 — not listed in this catalogue 82164 — WIRE, FRAME (6 parts) 82186 — WIRE, REAR WINDOW, NO.1 (1 parts) 82817A — PROTECTOR, WIRING HARNESS, NO.2 (1 parts) 82163 — WIRE, FLOOR, NO.3 (1 parts) 82151 — WIRE, FRONT DOOR, RH (1 parts) 82186 — WIRE, REAR WINDOW, NO.1 (1 parts) 82817A — PROTECTOR, WIRING HARNESS, NO.2 (1 parts) 82161 — WIRE, FLOOR (3 parts) 82152 — WIRE, FRONT DOOR, LH (1 parts) 82162 — WIRE, FLOOR, NO.2 (5 parts)
MEL945 · 13 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-95702 Wire, Front Door, RH
1988-08 → 1992-01 ended
CM3#,KM3# —
82152 — Wire, Front Door, LH
82152-95700 Wire, Front Door, LH
1988-08 → 1992-01 ended
CM3#,KM3# —
82161 — Wire, Floor
82161-95706 note Wire, Floor
1988-08 → 1992-01 ended
KM30 DLX;KM36 LHD V4D +1 —
82161-95710 Wire, Floor
1988-08 → 1992-01 ended
CM36,KM36 RHD —
82161-95711 Wire, Floor
1988-08 → 1992-01 ended
CM3#,KM3# LHD —
82162 — Wire, Floor, NO.2
82162-95703 Wire, Floor, NO.2
1988-08 → 1992-01 ended
CM36,KM36 05S —
82162-95703 note Wire, Floor, NO.2
1988-08 → 1992-01 ended
KM30 STD —
82162-95703 note Wire, Floor, NO.2
1988-08 → 1992-01 ended
CM30,KM30 DLX —
82162-95704 Wire, Floor, NO.2
1988-08 → 1992-01 ended
CM30,KM30 DLX —
82162-95704 note Wire, Floor, NO.2
1988-08 → 1992-01 ended
KM30 STD —
82163 — Wire, Floor, NO.3
82163-95700 Wire, Floor, NO.3
1988-08 → 1992-01 ended
CM3#,KM3# LHD —
82164 — Wire, Frame
82164-95780 Wire, Frame
1988-08 → 1992-01 ended
CM36,KM36 —
82164-95781 Wire, Frame
1988-08 → 1992-01 ended
CM30,KM30 —
82164-95781 note Wire, Frame
1988-08 → 1992-01 ended
CM36,KM36 —
82164-95782 note Wire, Frame
1988-08 → 1992-01 ended
KM36 LHD V4D 02S —
82164-95783 note Wire, Frame
1988-08 → 1992-01 ended
KM36 LHD V4D 02S —
82164-95783 note Wire, Frame
1988-08 → 1992-01 ended
KM30 DLX —
82171 — Wire, Roof, NO.1
82171-95700 Wire, Roof, NO.1
1988-08 → 1992-01 ended
KM36 SRF —
82171-95702 Wire, Roof, NO.1
1988-08 → 1992-01 ended
CM3#,KM3# MRF —
82184 — Wire, Back Door, NO.1
82184-95706 Wire, Back Door, NO.1
1988-08 → 1992-01 ended
KM36 SRF —
82184-95715 Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM36,KM36 RHD —
82184-95716 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM36,KM36 RHD —
82184-95718 Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM36,KM36 LHD MRF —
82184-95720 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
KM36 LHD V4D 02S —
82184-95724 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM36,KM36 RHD —
82184-95727 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
KM36 SRF —
82184-95728 Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM30,KM30 —
82184-95728 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
CM36,KM36 LHD MRF —
82184-95729 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
KM30 DLX —
82184-95729 note Wire, Back Door, NO.1
1988-08 → 1992-01 ended
KM36 LHD V4D 02S —
82185 — Wire, Back Door, NO.2
82185-95700 Wire, Back Door, NO.2
1988-08 → 1992-01 ended
CM36,KM36 RHD —
82186 — Wire, Rear Window, NO.1
82186-95703 Wire, Rear Window, NO.1
1988-08 → 1992-01 ended
CM3#,KM3# —
82817A — Protector, Wiring Harness, NO.2
63249-95700 Protector, Wiring Harness, NO.2
1988-08 → 1992-01 ended
CM3#,KM3# VSG —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
