Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 2 illustrations

Illustrations

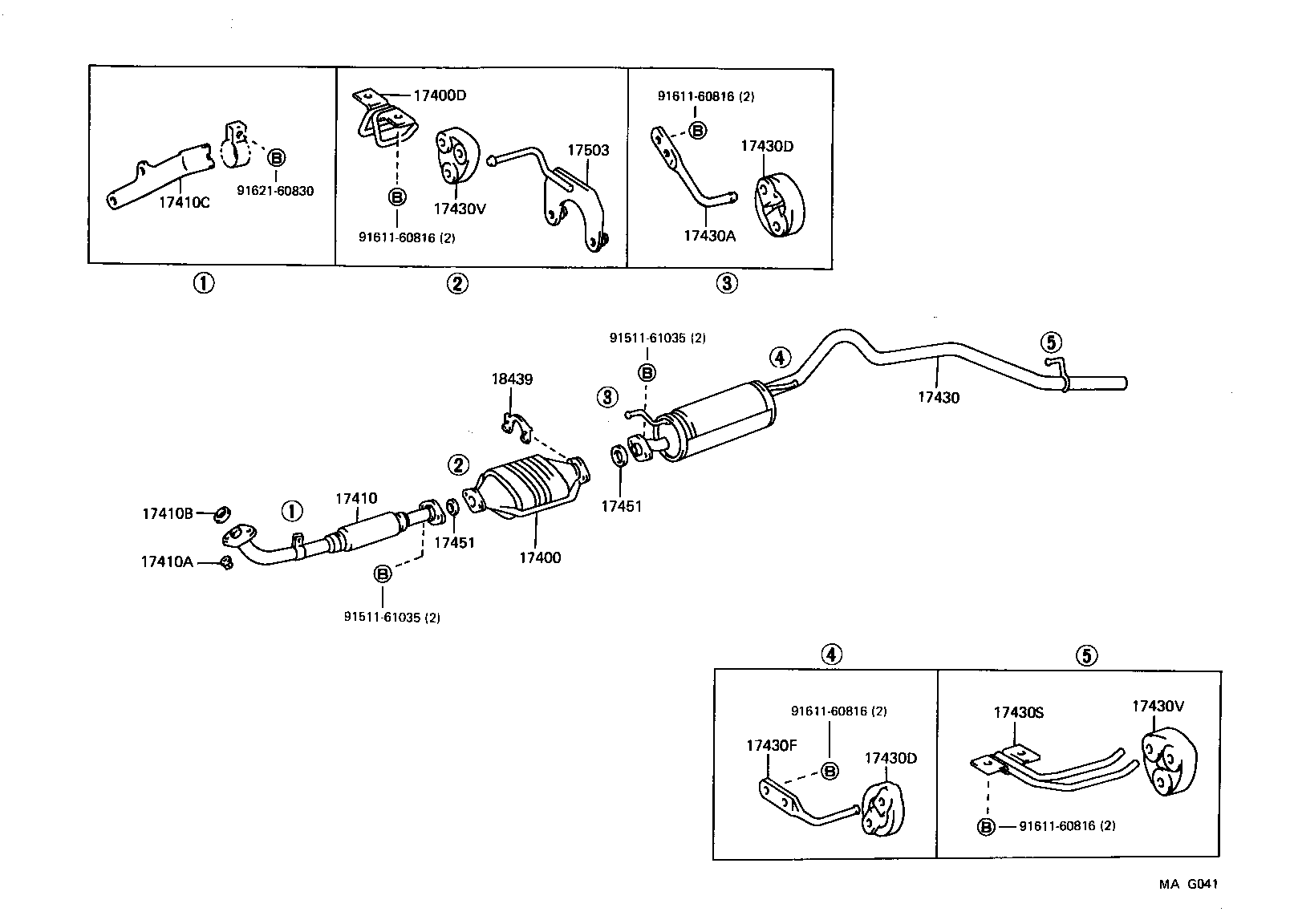

Figure MAB487C MAB487C 1988-08 → — Figure MAG041 MAG041 1988-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17503 Bracket Sub-assy, Catalytic Converter, Rear
18439 Bracket, Convertor Protector, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
