Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09
Starter

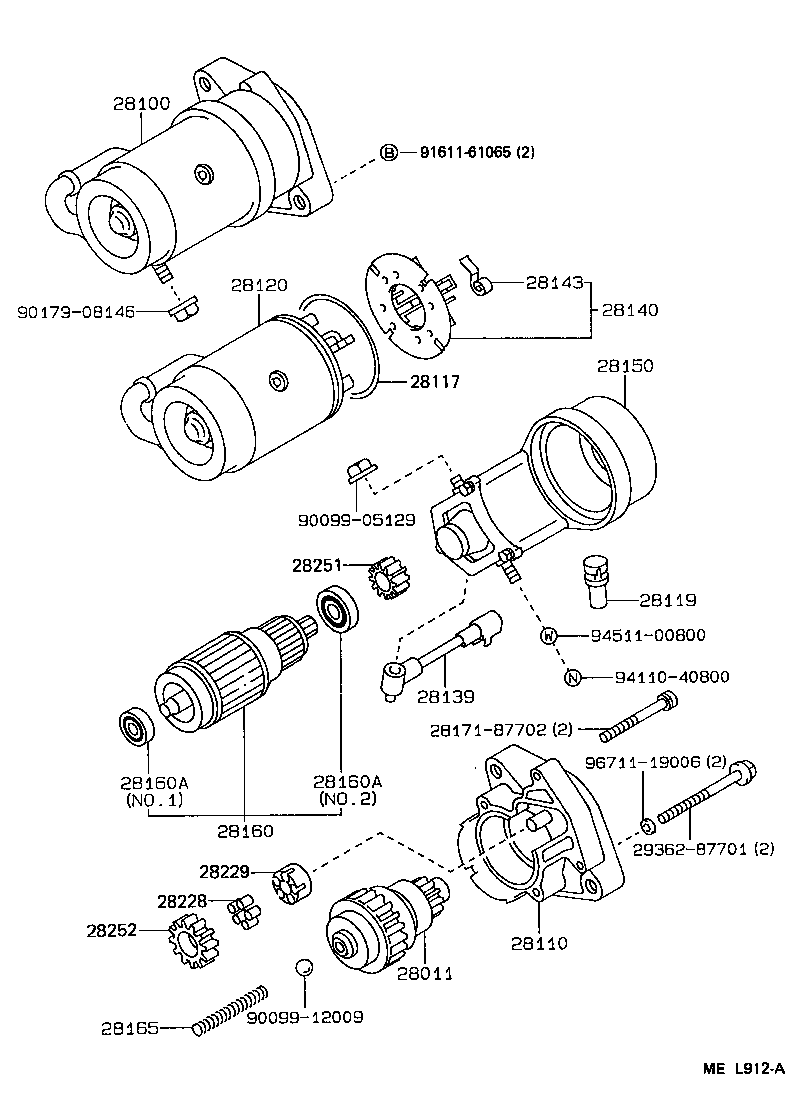

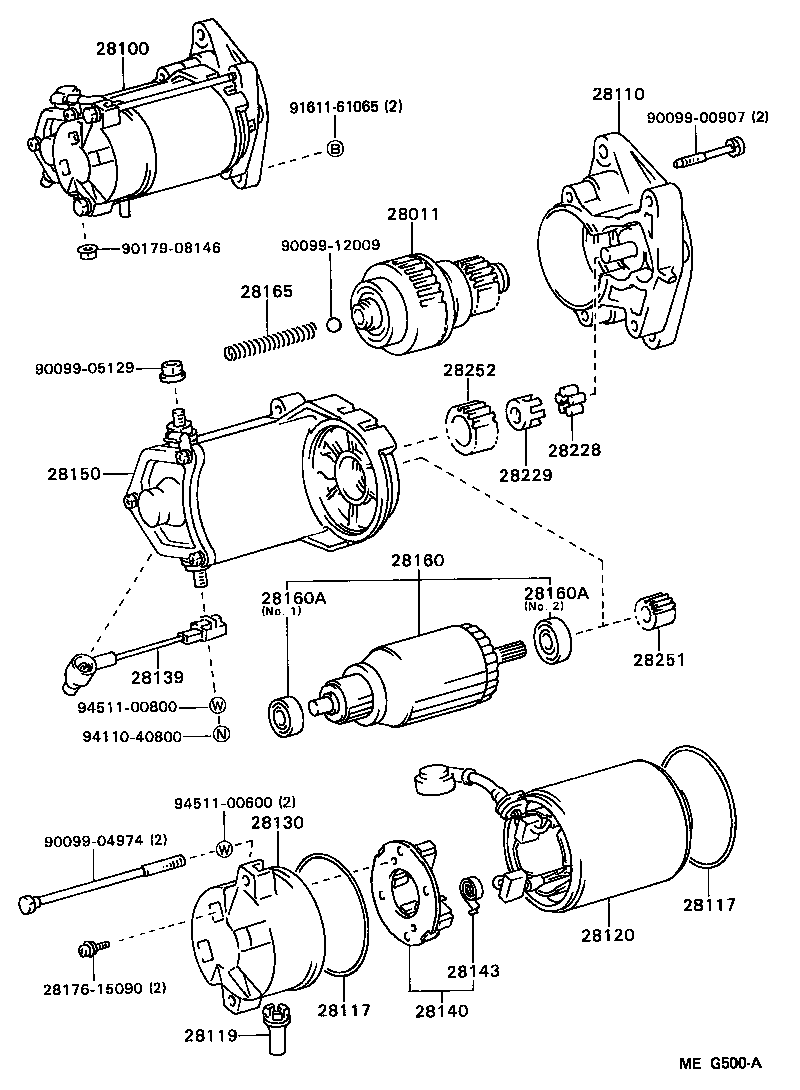

33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28013 | Bearing, Starter Center & Shock Absorber, NO.1 |
| 28013A | Bearing, Starter Center & Shock Absorber, NO.2 |
| 28014 | Shaft Sub-assy, Planet Carrier |
| 28014A | Bush OR Bearing, Planet Carrier Shaft |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28110A | Bearing(FOR STARTER HOUSING) |
| 28113 | Lever, Starter Pinion Drive |
| 28117 | Rubber(FOR STARTER YOKE) |
| 28119 | Cover, Starter End Frame |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28130C | Bearing, Starter Flange |
| 28139 | Wire, Lead, NO.1(FOR STARTER) |
| 28140 | Holder Assy, Starter Brush |
| 28142 | Brush, Starter |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28163 | Nut OR Collar, Pinion Stop, Starter |
| 28165 | Spring, Starter Magnet Switch Return |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28199 | Cover, Starter |
| 28199A | Protector, Dust Starter |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28251 | Pinion, Starter Drive |
| 28252 | Gear, Starter Idle |
| 28255 | Gear, Planet |
| 28256 | Gear, Starter Internal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
