Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

12 part groups · 3 illustrations

Illustrations

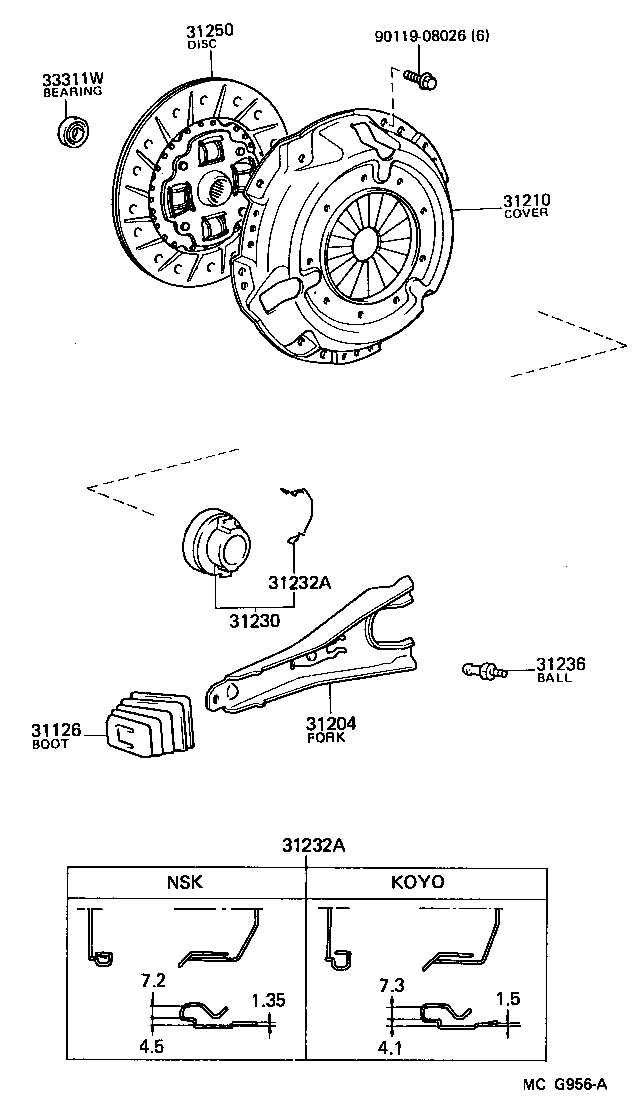

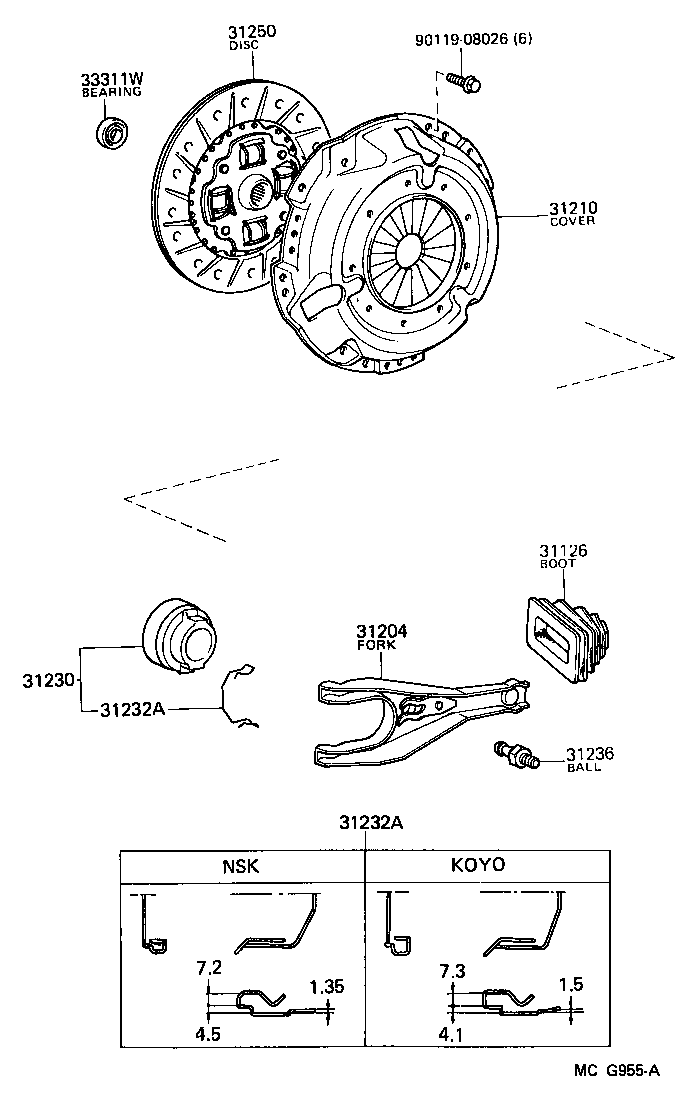

Figure MCG954 MCG954 1988-08 → — Figure MCG955A MCG955A 1988-08 → — Figure MCG956A MCG956A 1988-08 → —

Part groups

PNCDescription
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31231 Hub, Clutch Release Bearing
31231A Bearing, Ball(FOR CLUTCH RELEASE HUB)
31232A Clip, Release Bearing Hub
31236 Ball, Release Fork
31238 Hanger, Release Fork Retracting Spring
31240A Spring, Tension(FOR CLUTCH RELEASE FORK RETURN)
31250 Disc Assy, Clutch
33311W Bearing (FOR INPUT SHAFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
