Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

9 part groups · 2 illustrations

Illustrations

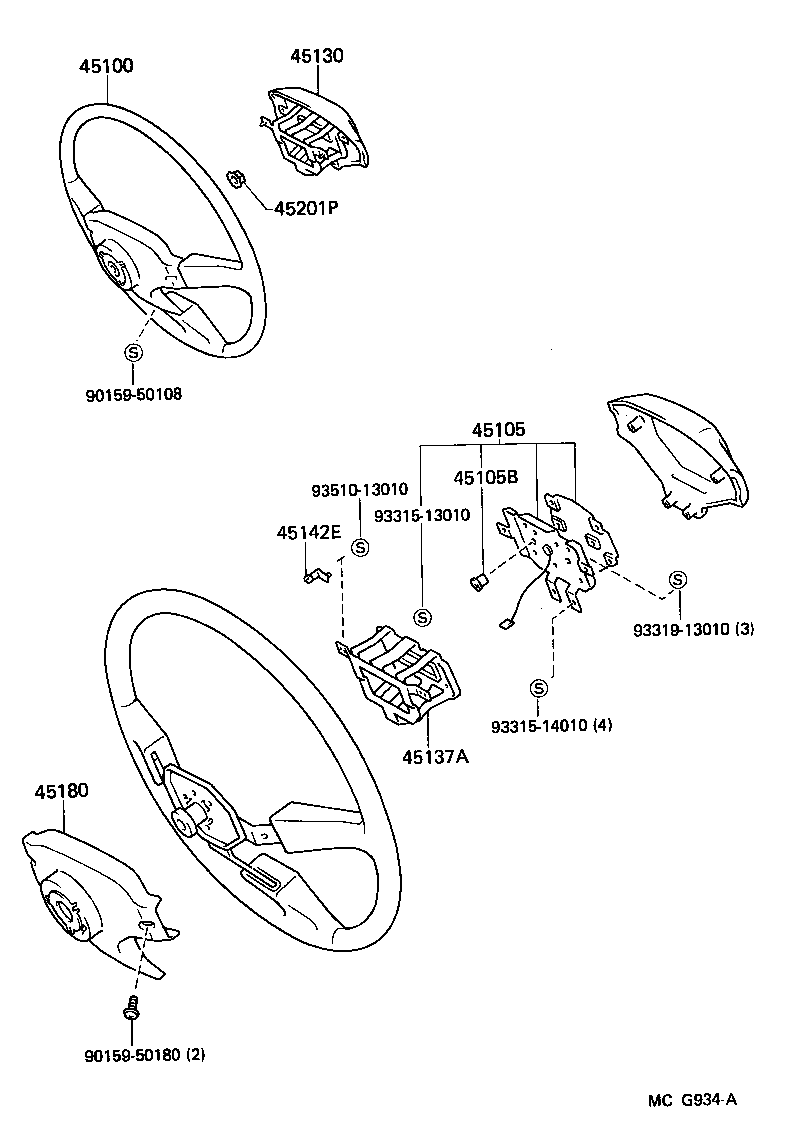

Figure MCH044 MCH044 1988-08 → — Figure MCG934A MCG934A 1988-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45130 Button Assy, Horn
45137A Plate, Horn Button Contact, NO.2
45142E Piece, Horn Contact
45176 Ring, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
