Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

22 part groups · 3 illustrations

Illustrations

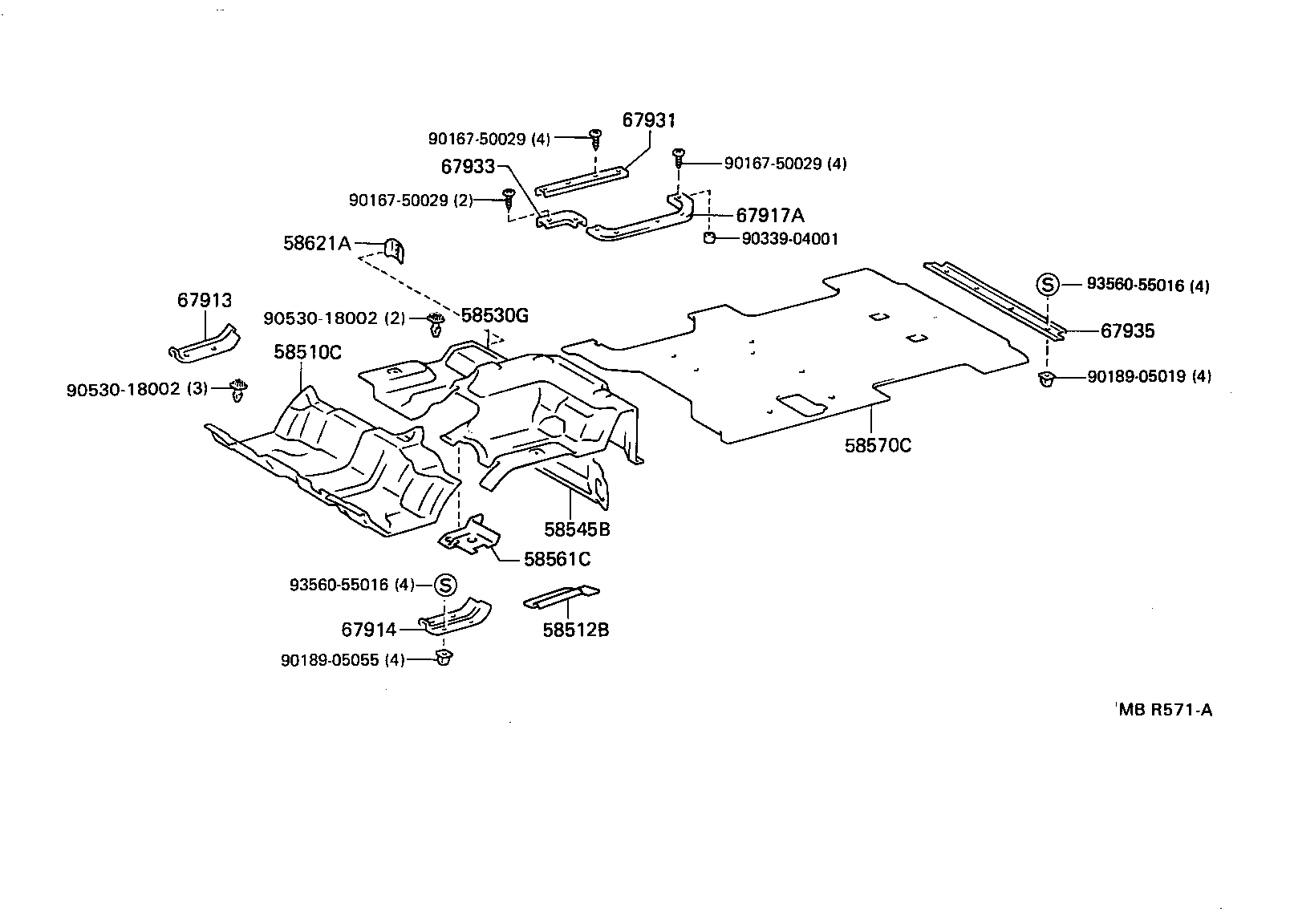

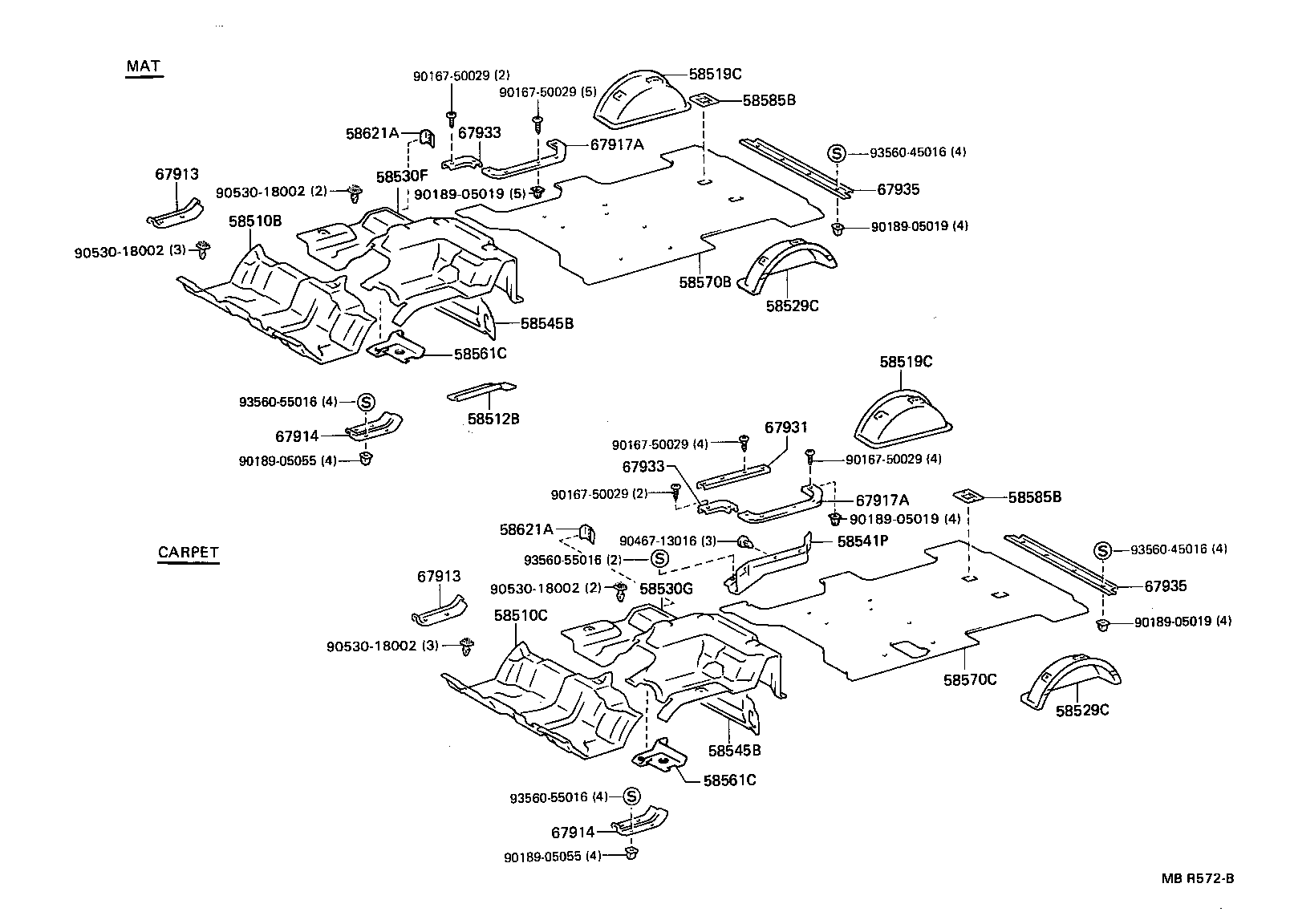

Figure MBR570A MBR570A 1988-08 → — Figure MBR571A MBR571A 1988-08 → — Figure MBR572B MBR572B 1988-08 → —

Part groups

PNCDescription
58510B Mat, Front Floor, Front
58510C Carpet Assy, Front Floor, Front
58512B Mat, Floor, Front LH
58519C Carpet, Rear Wheel House, RH
58529C Carpet, Rear Wheel House, LH
58530F Mat Assy, Header
58530G Carpet Assy, Header
58541P Mat, Step, RH
58545B Silencer, Header Panel
58561C Silencer, Front Floor, NO.1
58570B Mat Assy, Rear Floor
58570C Carpet Assy, Rear Floor
58585B Cover, Rear Floor Seat Lock
58621A Plate, Mat Set, NO.1 LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67931 Plate, Quarter Scuff, Outer RH
67933 Plate, Quarter Scuff, Inner RH
67934 Plate, Quarter Scuff, Inside LH
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
