Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09

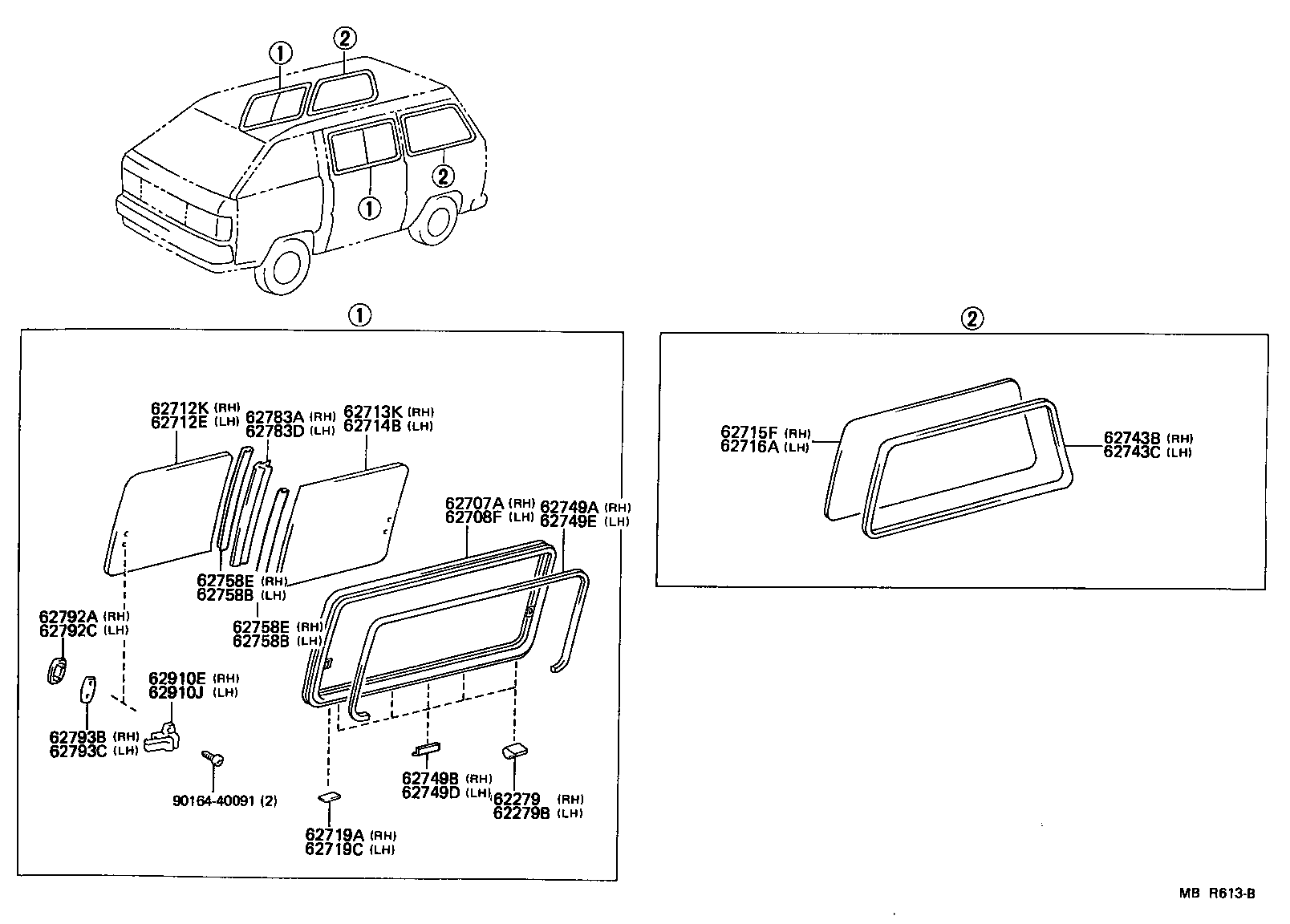

Side Window
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62279 | Spacer, Side Window Frame, Upper |
| 62279B | Spacer, Side Window Frame, LH |
| 62707A | Frame Sub-assy, Side Front Window, RH |
| 62708F | Frame Sub-assy, Side Front Window, LH |
| 62712E | Glass, Side Front Window, LH |
| 62712K | Glass, Side Window, Front RH |
| 62713K | Glass, Side Window, Rear RH |
| 62714B | Glass, Side Window, Rear LH |
| 62715F | Glass, Side Rear Window, RH |
| 62715G | Panel, Side Rear Window, RH |
| 62716A | Glass, Side Rear Window, LH |
| 62716B | Panel, Side Rear Window, LH |
| 62719A | Packing, Side Front Window, Upper |
| 62719C | Packing, Side Front Window |
| 62743B | Weatherstrip, Side Rear Window |
| 62743C | Weatherstrip, Side Rear Window |
| 62749A | Seal, Side Window, Upper |
| 62749B | Seal, Side Window Frame |
| 62749D | Seal, Side Window Flame |
| 62749E | Seal, Side Window Frame |
| 62751 | Stop, Side Window Fix Glass |
| 62751C | Stop, Side Window Fix Glass |
| 62758B | Protector, Side Window Glass, LH |
| 62758E | Protector, Side Window Glass |
| 62783A | Sash, Side Window, Center |
| 62783D | Sash, Side Window, Center |
| 62792A | Packing, Side Window Lock, RH |
| 62792C | Packing, Side Window Lock, LH |
| 62793B | Retainer, Side Window Lock, RH |
| 62793C | Retainer, Side Window Lock, LH |
| 62897 | Tube, Side Window Guard |
| 62898A | Tube, Side Window Guard, LH |
| 62910E | Lock Assy, Side Window |
| 62910J | Lock Assy, Side Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
