Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

125 part groups · 7 illustrations

Illustrations

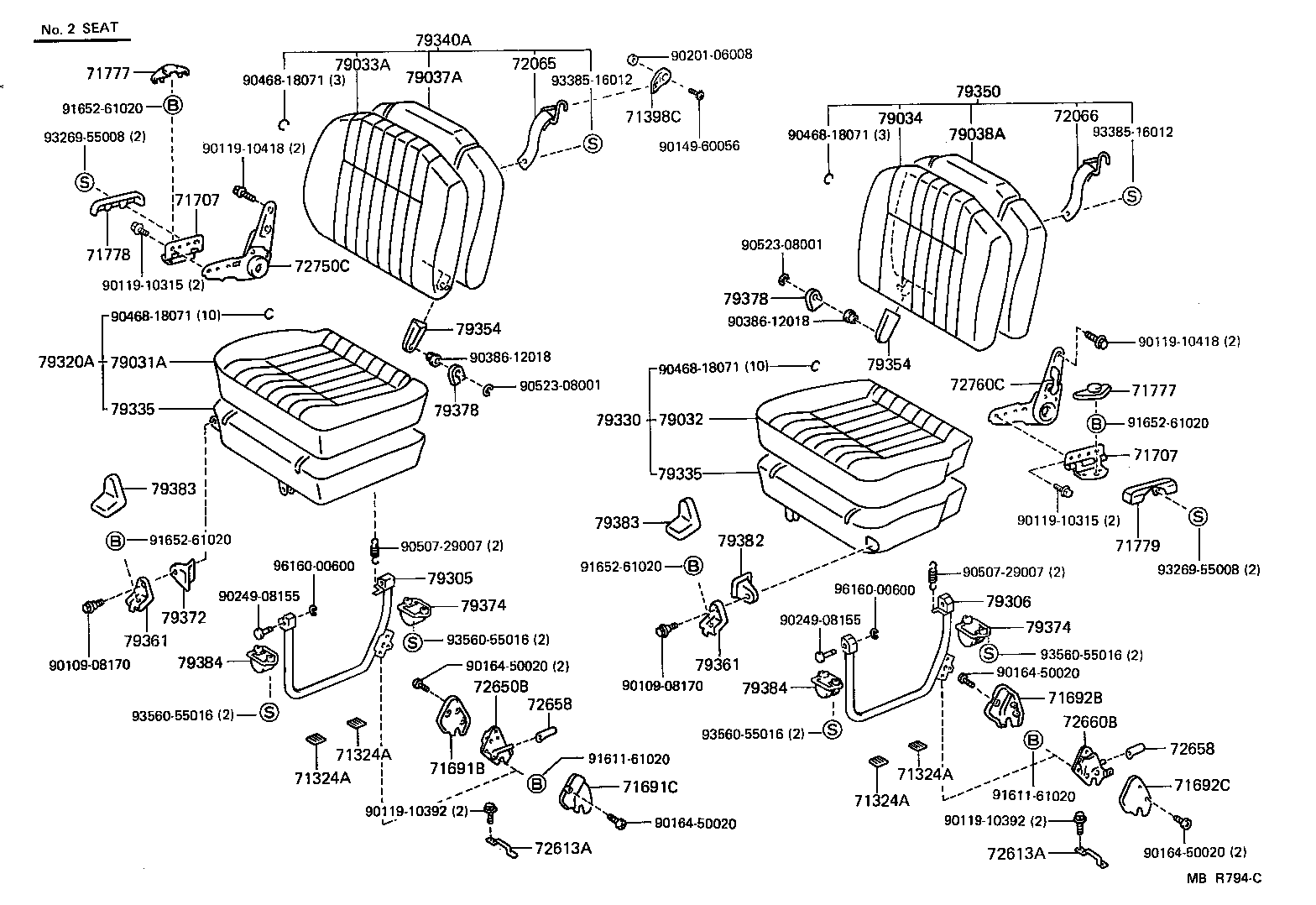

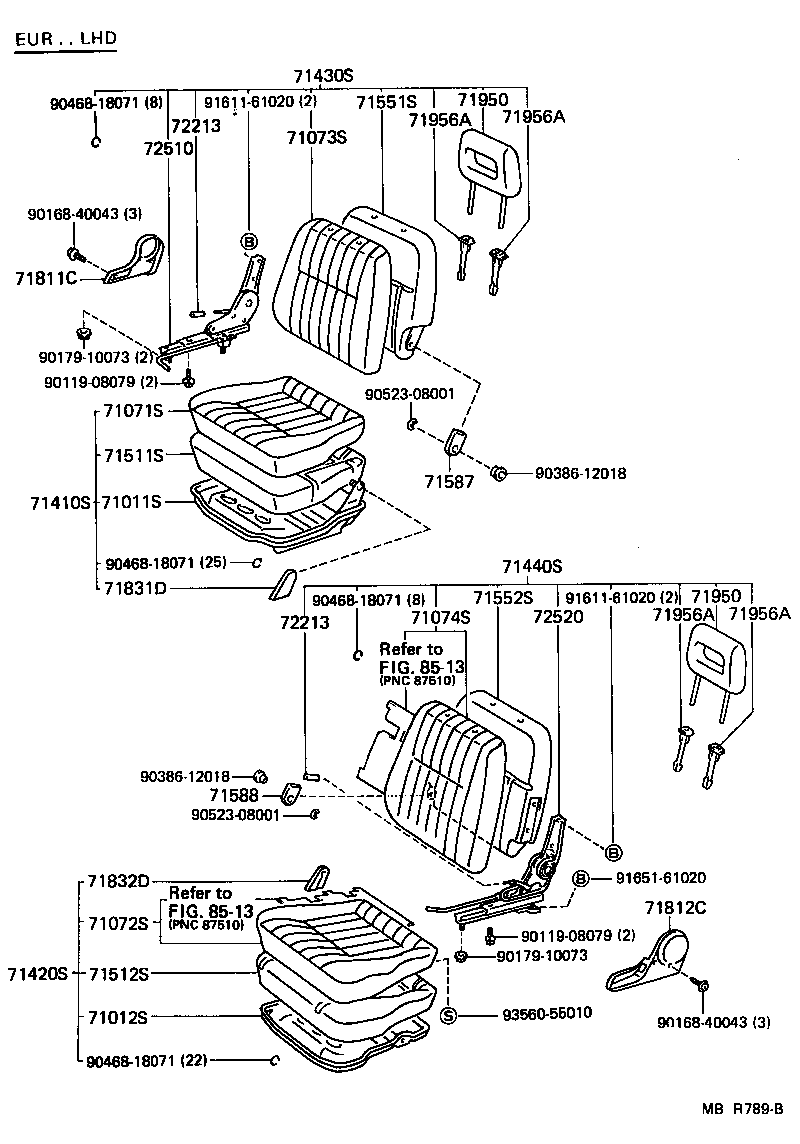

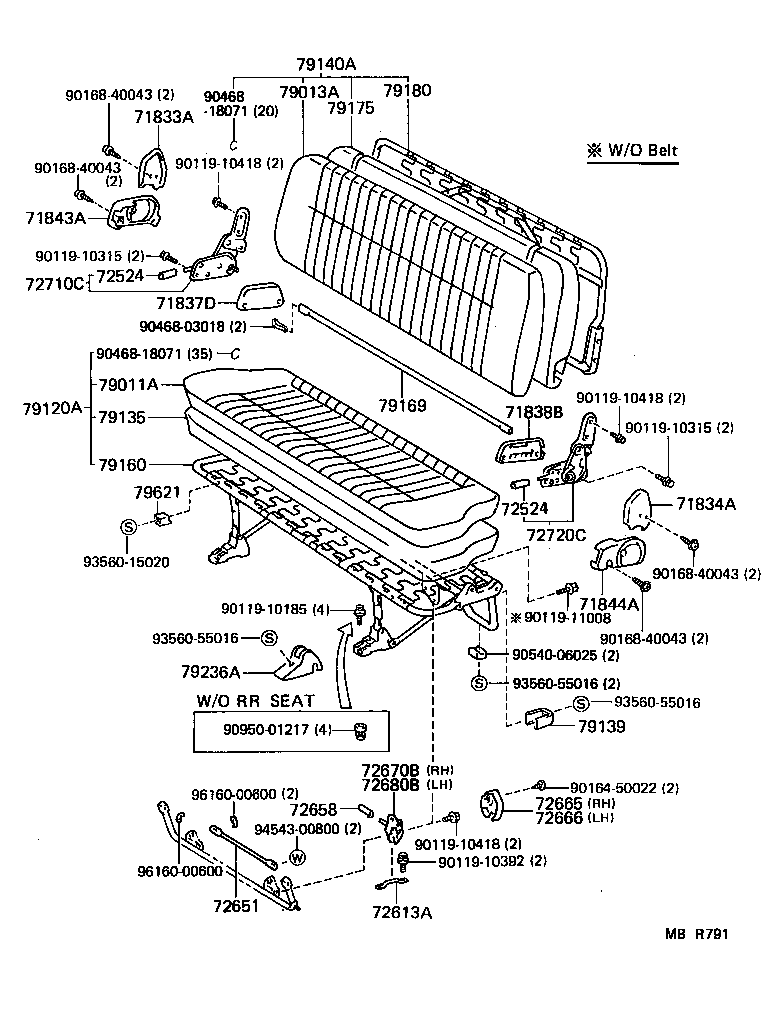

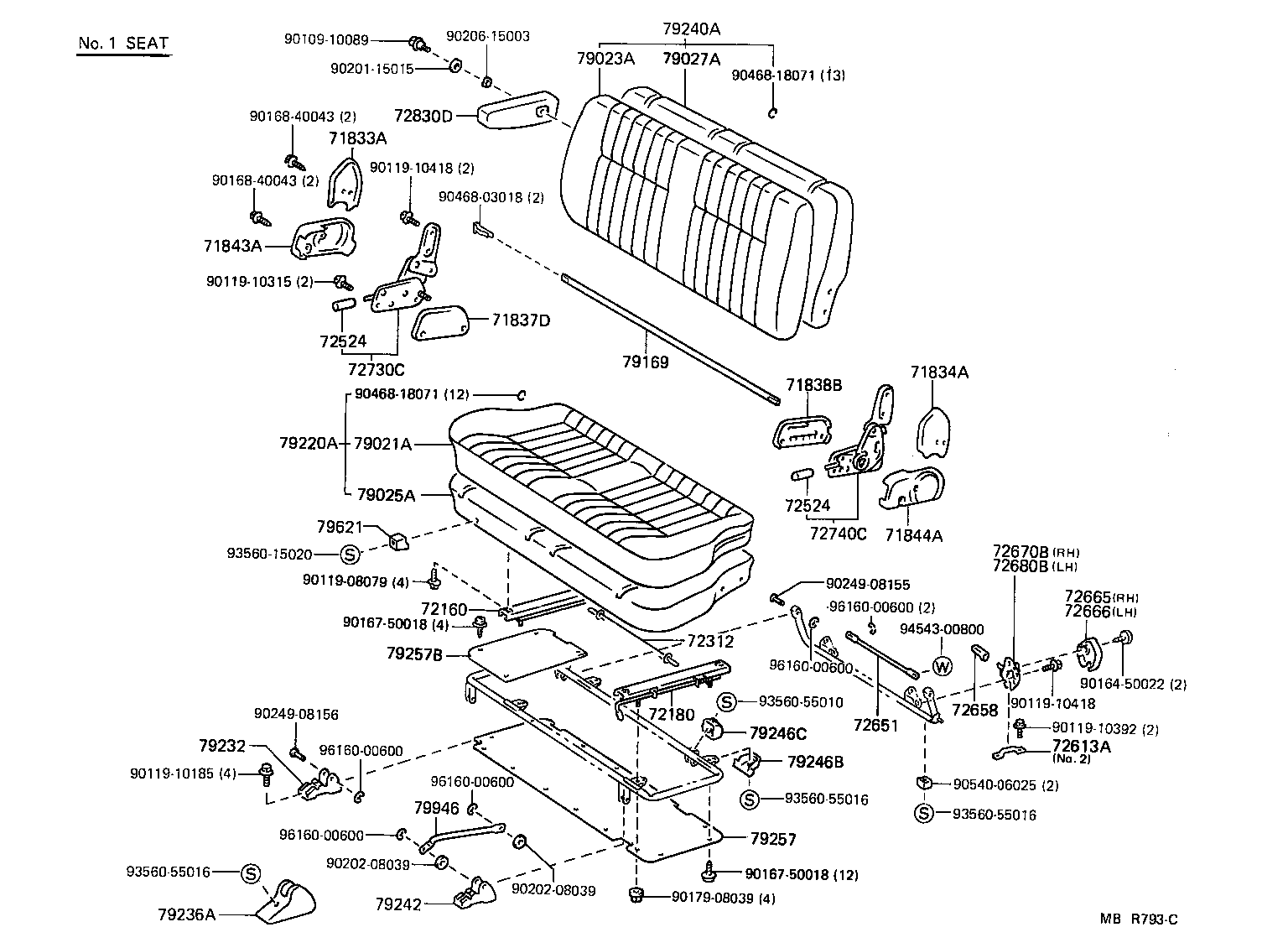

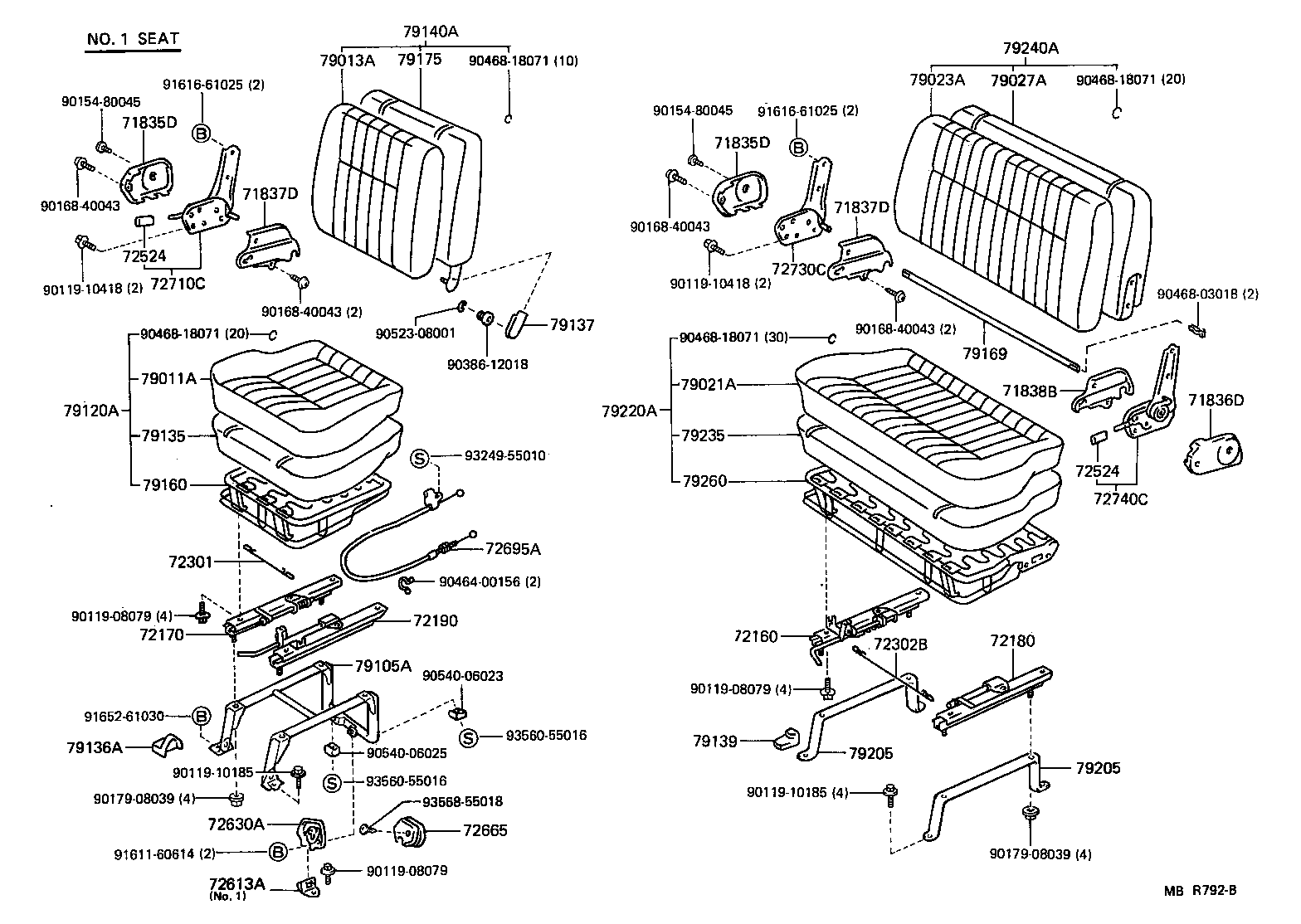

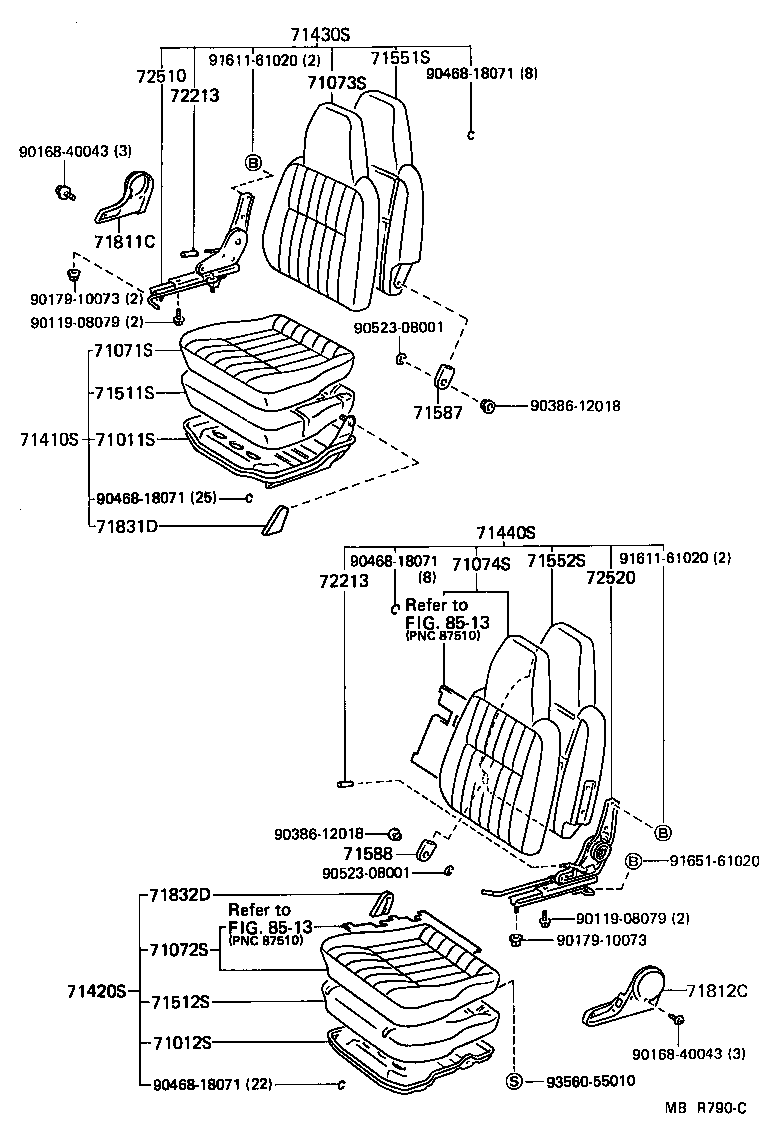

Figure MBR788A MBR788A 1988-08 → — Figure MBR789B MBR789B 1988-08 → — Figure MBR790C MBR790C 1988-08 → — Figure MBR791 MBR791 1988-08 → — Figure MBR792B MBR792B 1988-08 → — Figure MBR793C MBR793C 1988-08 → — Figure MBR794C MBR794C 1988-08 → —

Part groups

PNCDescription
58936A Band, Engine Service Hole Cover Support
71011S Frame Sub-assy, Front Seat Cushion, RH
71012S Frame Sub-assy, Front Seat Cushion, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71280A Hinge Assy, Front Seatback, LH
71324A Cushion, Rear Seat
71398C Holder, Rear Seatback
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71691B Cover, Rear Seat Lock, Outer RH
71691C Cover, Rear Seat Lock, Inner RH
71692B Cover, Rear Seat Lock, Outer LH
71692C Cover, Rear Seat Lock, Inner LH
71707 Hinge Sub-assy, Rear Seat Side
71777 Cover, Rear Seat Side Hinge Female
71778 Cover, Rear Seat Side Hinge Male, RH
71779 Cover, Rear Seat Side Hinge Male, LH
71811C Cover, Reclining Adjuster, RH
71812C Cover, Reclining Adjuster, LH
71831D Cover, Front Seat Hinge, RH
71832D Cover, Front Seat Hinge, LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71835D Cover, Rear Seat Reclining, Lower RH
71836D Cover, Rear Seat Reclining, Lower LH
71837D Cover, Rear Seat Reclining, Inner RH
71838B Cover, Rear Seat Reclining, Inner LH
71843A Cover, Rear Seat Reclining, NO.2 RH
71844A Cover, Rear Seat Reclining, NO.2 LH
71950 Headrest Assy, Front Seat
71956A Support, Front Seat Headrest
72065 Belt Sub-assy, Rear Seat Hook, RH
72066 Belt Sub-assy, Rear Seat Hook, LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180 Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72213 Knob, Seat Track Adjusting Handle
72301 Wire Sub-assy, Seat Track Equalizing
72302B Wire Sub-assy, Rear Seat Track Equalizing
72312 Wire, Rear Seat Track Equalizing
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72613A Striker, Front Seat Lock
72630A Lock Assy, Rear NO.1 Seat
72650B Lock Assy, Rear NO.3 Seat, RH
72651 Rod, Rear Seatback Lock
72658 Knob, Rear Seat Handle
72660B Lock Assy, Rear NO.3 Seat, LH
72665 Cover, Rear Seatback Lock, RH
72666 Cover, Rear Seatback Lock, LH
72670B Lock Assy, Rear Seat Cushion, RH
72680B Lock Assy, Rear Seat Cushion, LH
72695A Cable, Rear Seat Lock Control
72710C Adjuster Assy, NO.1 Seat Reclining, RH
72720C Adjuster Assy, NO.1 Seat Reclining, LH
72730C Adjuster Assy, NO.2 Seat Reclining, RH
72740C Adjuster Assy, NO.2 Seat Reclining, LH
72750C Adjuster Assy, NO.3 Seat Reclining, RH
72760C Adjuster Assy, NO.3 Seat Reclining, LH
72830D Armrest Assy, Rear Seat, RH
79011A Cover Sub-assy, NO.1 Seat Cushion
79013A Cover Sub-assy, NO.1 Seatback
79021A Cover Sub-assy, NO.2 Seat Cushion
79023A Cover Sub-assy, NO.2 Seatback
79025A Pad Sub-assy, NO.2 Seat Cushion, RH
79027A Pad Sub-assy, NO.2 Seatback, RH
79031A Cover Sub-assy, NO.3 Seat Cushion
79032 Cover Sub-assy, NO.3 Seat Cushion, LH
79033A Cover Sub-assy, NO.3 Seatback
79034 Cover Sub-assy, NO.3 Seatback, LH
79037A Pad Sub-assy, NO.3 Seatback, RH
79038A Pad Sub-assy, NO.3 Seatback, LH
79105A Leg Sub-assy, NO.1 Seat
79120A Cushion Assy, NO.1 Seat
79135 Pad, NO.1 Seat Cushion
79136A Cover, NO.1 Seat Leg, A
79137 Cover, NO.1 Seat Hinge
79139 Cover, Rear Seat Leg
79140A Back Assy, NO.1 Seat
79160 Spring Assy, NO.1 Seat Cushion
79169 Rod, Rear Seat Hinge Connector
79175 Pad, NO.1 Seatback
79180 Spring Assy, NO.1 Seatback
79205 Leg Sub-assy, NO.2 Seat
79220A Cushion Assy, NO.2 Seat
79232 Leg, Rear NO.2 Seat, RH
79235 Pad, NO.2 Seat Cushion
79236A Cover, NO.2 Seat Leg
79240A Back Assy, NO.2 Seat
79242 Leg, Rear NO.2 Seat, LH
79246B Cover, NO.2 Seat Leg, B
79246C Cover, NO.2 Seat Leg, Upper
79257 Board, NO.2 Seat
79257B Board, NO.2 Seat, Upper
79260 Spring Assy, NO.2 Seat Cushion
79305 Leg Sub-assy, NO.3 Seat
79306 Leg Sub Assy, NO.3 Seat, LH
79320A Cushion Assy, NO.3 Seat
79330 Cushion Assy, NO.3 Seat, LH
79335 Pad, NO.3 Seat Cushion
79340A Back Assy, NO.3 Seat
79350 Back Assy, NO.3 Seat, LH
79354 Cover, NO.3 Seatback Hinge
79361 Bracket, NO.3 Seat Support
79372 Cover, NO.3 Seat Front Bracket, RH
79374 Cover, NO.3 Seat Leg, Rear RH
79378 Cover, NO.3 Seat Cushion Hinge
79382 Cover, NO.3 Seat Front Bracket, LH
79383 Cover, NO.3 Seat Bracket Support
79384 Cover, NO.3 Seat Leg, Rear LH
79621 Stopper, NO.2 Seat Cushion
79946 Stay, Seat Leg, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
