Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09
Body Stripe

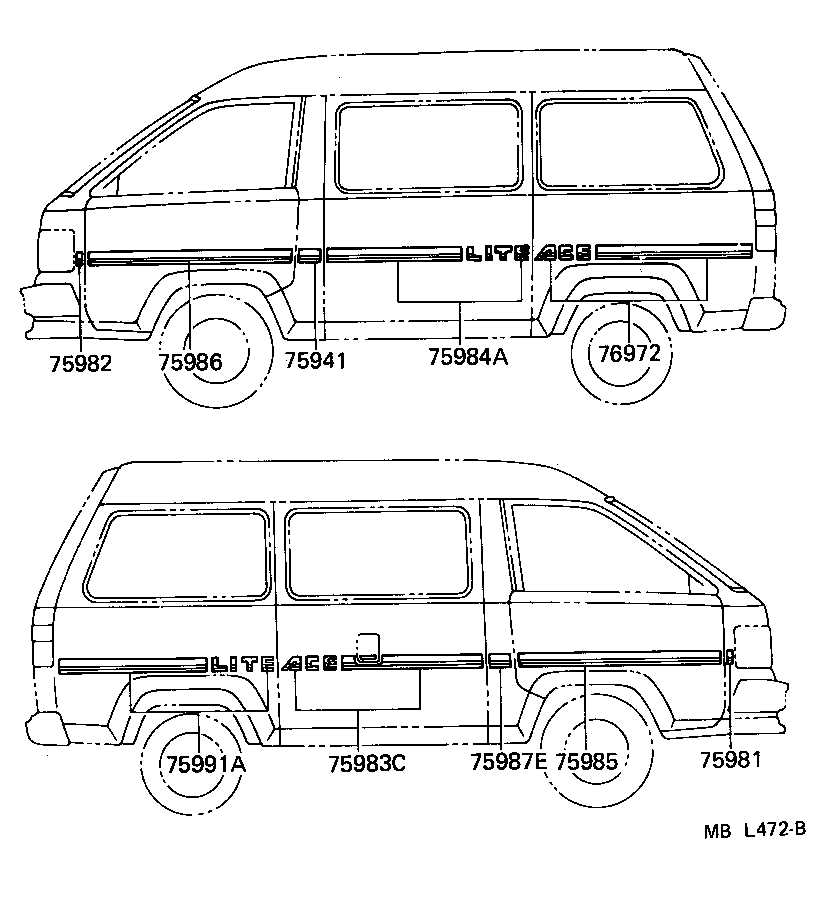

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 75941 | Stripe, Center Pillar, RH |
| 75981 | Stripe, Front Fender, RH NO.1 |
| 75982 | Stripe, Front Fender, LH NO.1 |
| 75983C | Stripe, Slide Door, RH |
| 75984A | Stripe, Slide Door |
| 75985 | Stripe, Front Door, RH |
| 75986 | Stripe, Front Door, LH |
| 75987E | Stripe, Center Pillar, RH |
| 75991A | Stripe, Quarter, RH |
| 76972 | Stripe, Quarter, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
