Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

12 part groups · 4 illustrations

Illustrations

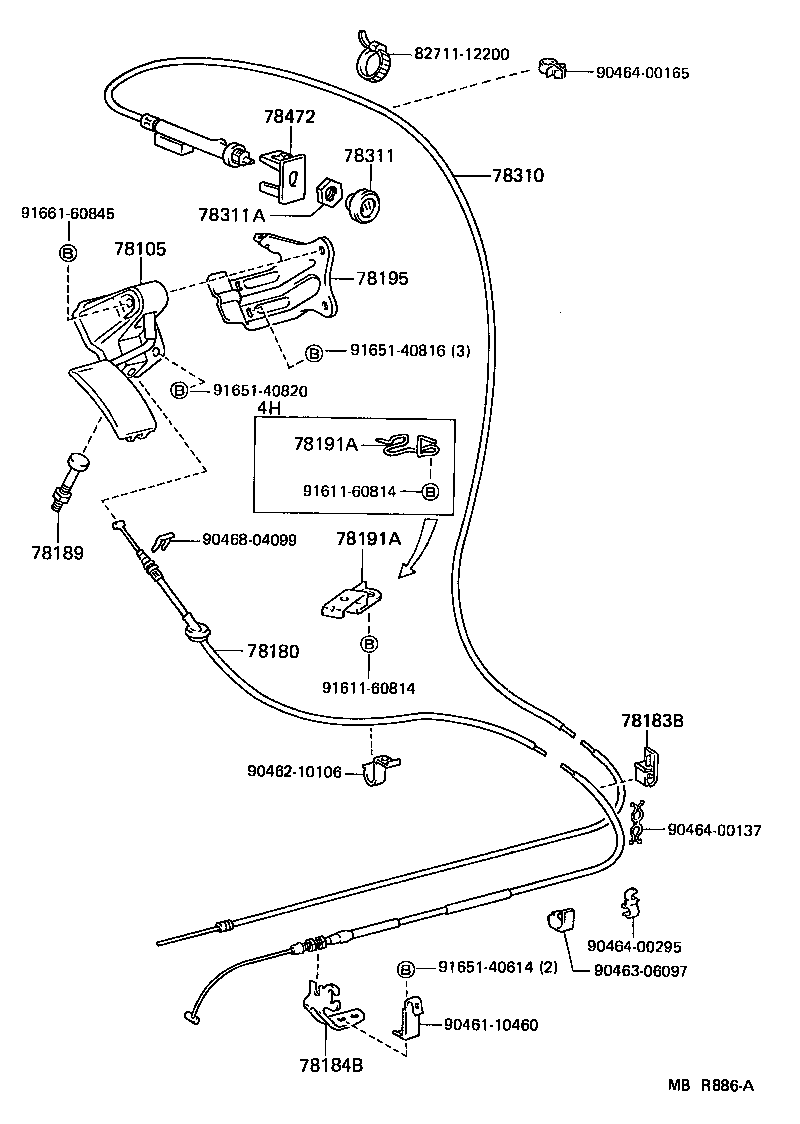

Figure MBT704A MBT704A 1988-08 → — Figure MBR886A MBR886A 1988-08 → — Figure MBR884B MBR884B 1988-08 → — Figure MBR887B MBR887B 1988-08 → —

Part groups

PNCDescription
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78129B Seal, Accelerator Pedal Arm
78180 Wire Assy, Accelerator
78183B Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78189 Bolt, Accelerator Pedal Stopper
78191A Clamp (FOR ACCELERATOR WIRE SET)
78195 Bracket, Accelerator Link
78310 Cable Assy, Choke
78311 Knob, Choke Control Cable
78311A Nut, Choke Shaft Set
78472 Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
