Toyota Liteace Van,Wagon
1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe
Discontinued model
Data version 1992-09
Switch & Relay & Computer
73 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|

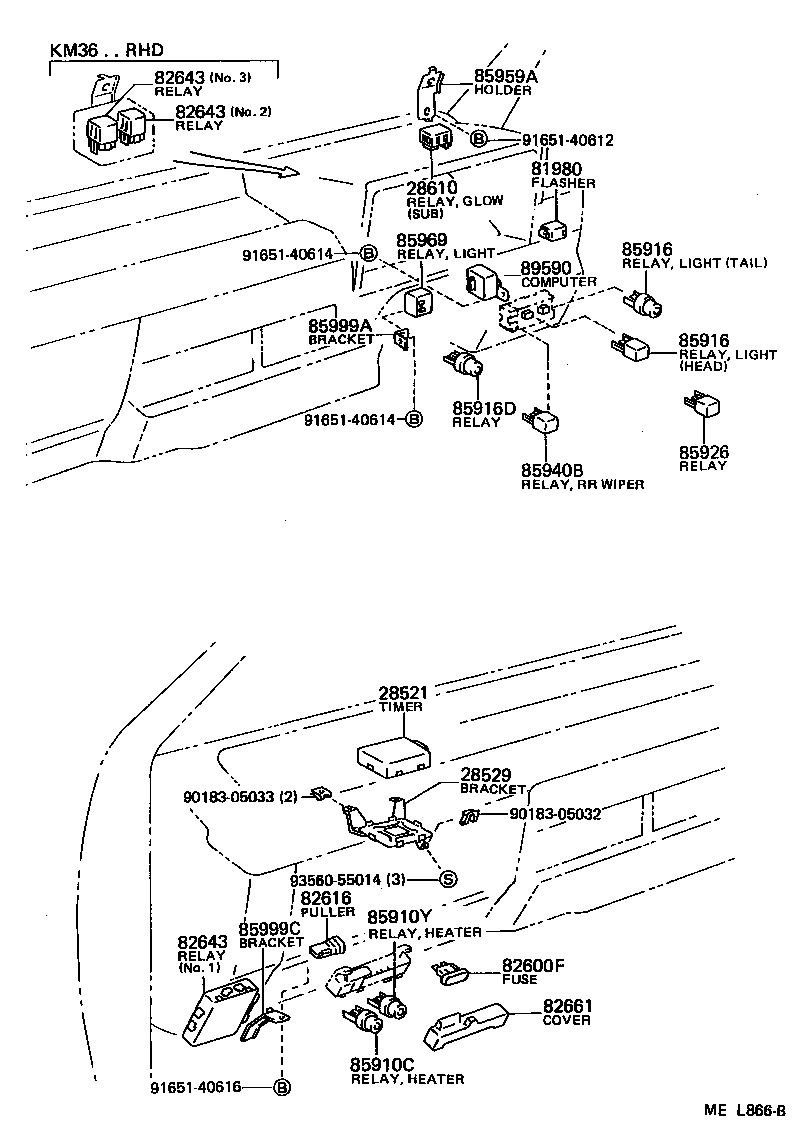

| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82642A | Relay, Running Light |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82642C | Relay, Day Time Running Light, NO.2 |
| 82643 | Relay, Dim-dip Lamp |
| 82661 | Cover, Relay Block, NO.1 |

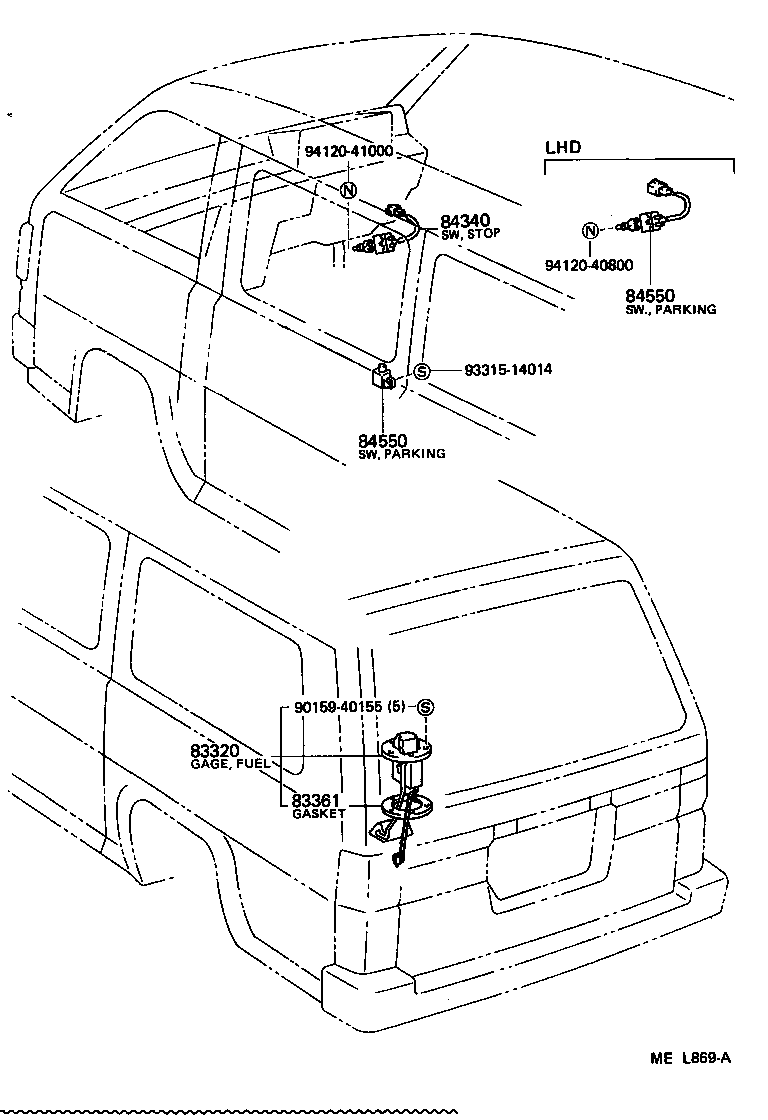

| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |

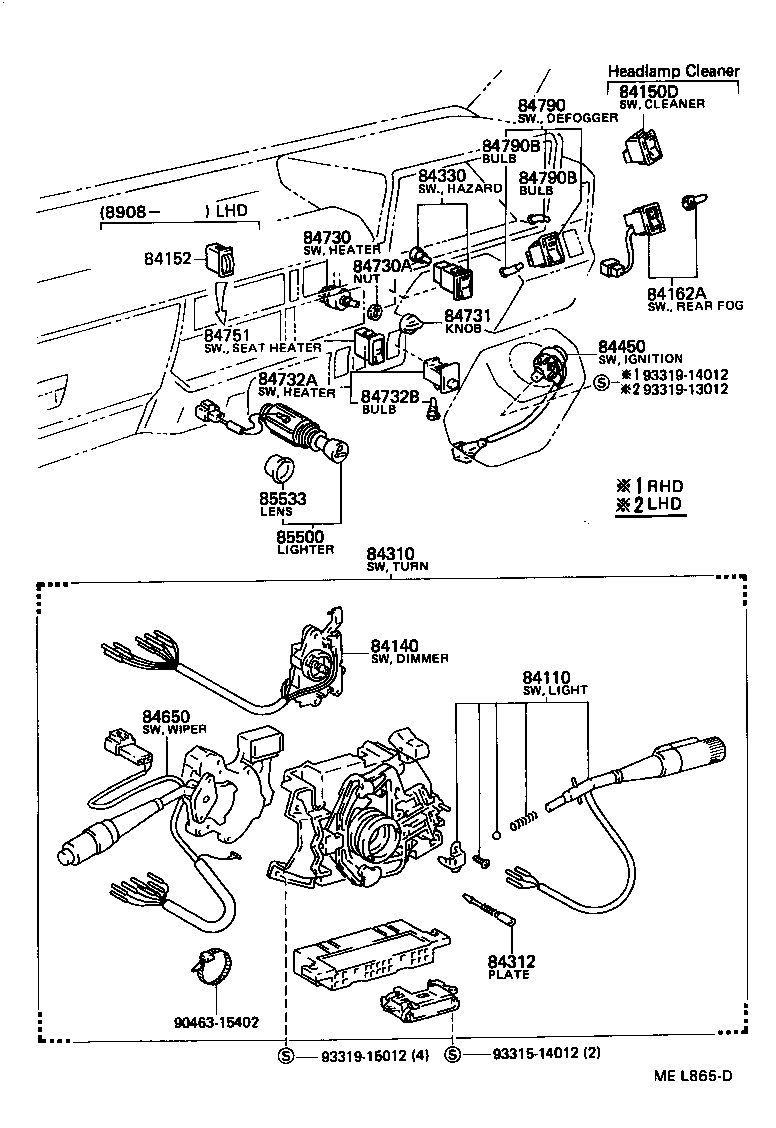

| 84110 | Switch Assy, Light Control, NO.1 |
| 84113A | Bracket, Switch, NO.1 |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84162A | Switch, Rear Fog Lamp |
| 84210 | Switch Assy, Back-up Lamp |

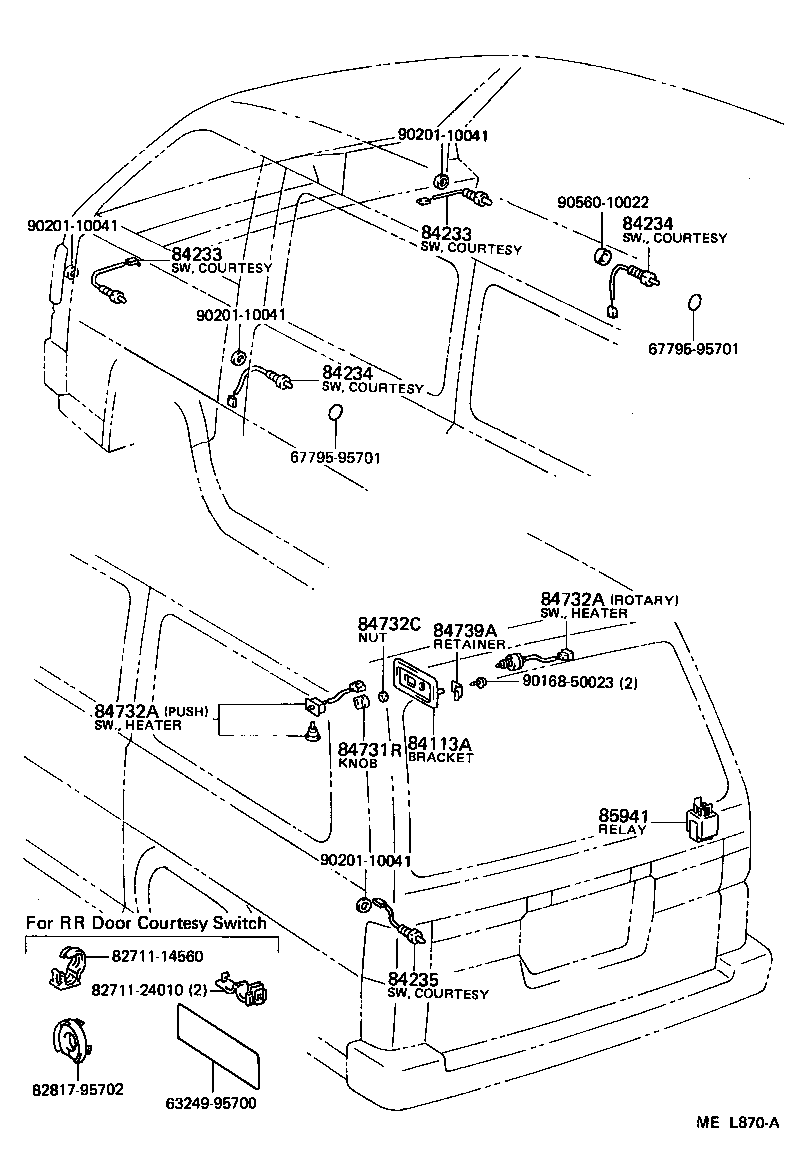

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730A | Nut, Heater Blower Switch |
| 84731 | Knob, Heater Blower Switch |
| 84731R | Knob, Rear Heater Blower Switch |
| 84732A | Switch, Rear Heater Blower |
| 84732B | Bulb, Rear Heater Blower Switch |
| 84732C | Nut, Rear Heater Blower Switch |
| 84739A | Retainer, Switch |
| 84751 | Switch, Seat Heater |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 85278A | Relay Assy, Headlamp Cleaner Control |
| 85336 | Switch Assy, Reserve Tank Level Warning |
| 85430 | Valve, Outer Vent Control |
| 85500 | Lighter Assy, Cigarette |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85909C | Bracket Sub-assy, Relay, NO.1 |
| 85909D | Bracket Sub-assy, Relay, NO.2 |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85910Y | Relay, Rear Heater |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85925A | Relay, Red Indicator |
| 85926 | Relay, Headlamp Dimmer |
| 85940B | Relay Assy, Rear Wiper |
| 85941 | Relay, Windshield Washer |
| 85959A | Holder, Relay |
| 85969 | Relay, Light Reminder |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 89429 | Sensor, Oil Temperature |
| 89491 | Sensor, Engine Oil Level |

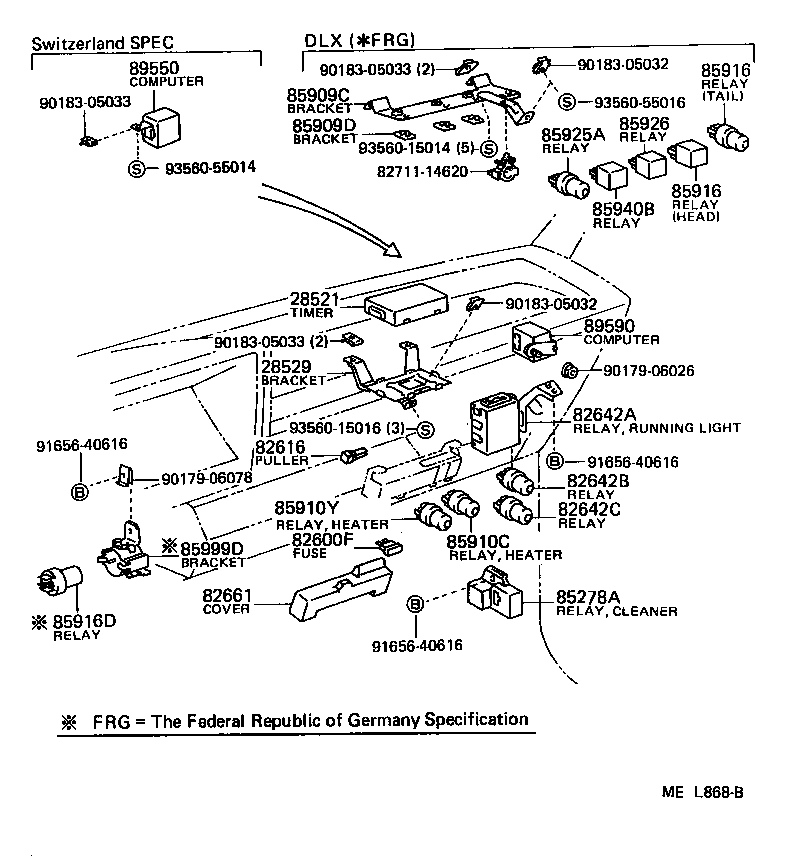

| 89550 | Computer Assy, Emission Control |
| 89590 | Computer Assy, Condition Indicator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
