Toyota Liteace Van,Wagon

1988-08 → 1992-01 · chassis KM3#,CM3# · catalogue 631540 · Europe

Discontinued model Data version 1992-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 3 illustrations

Illustrations

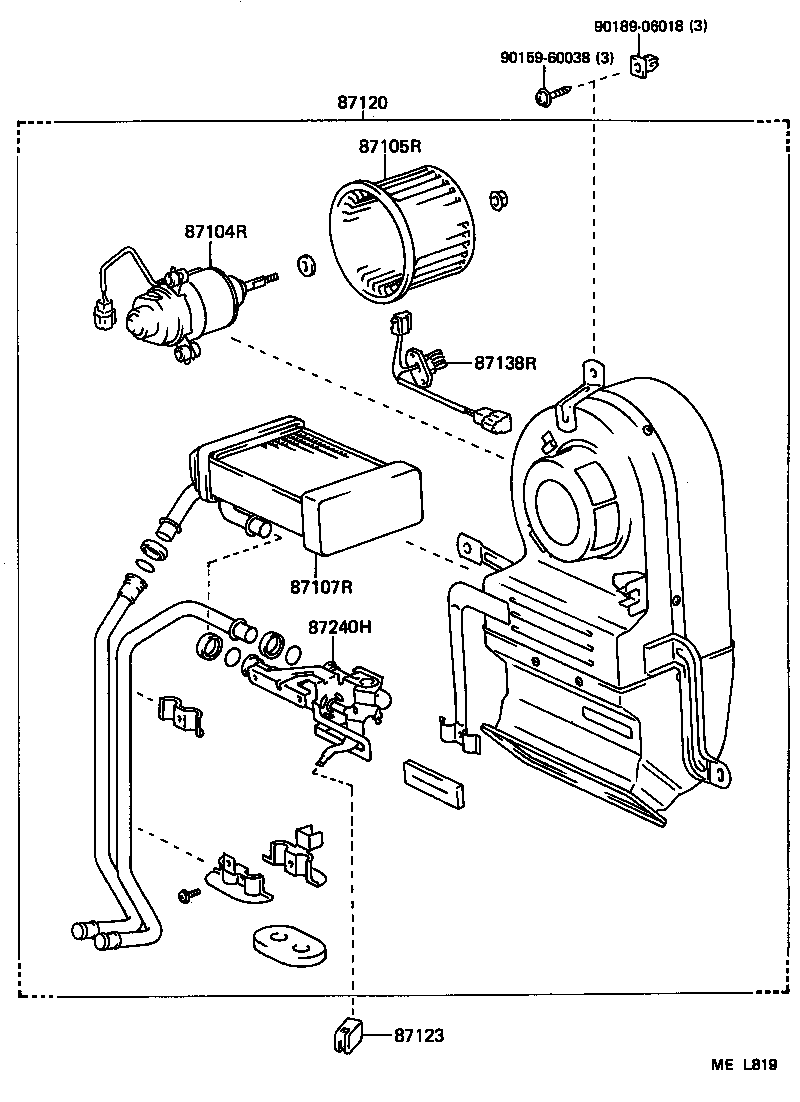

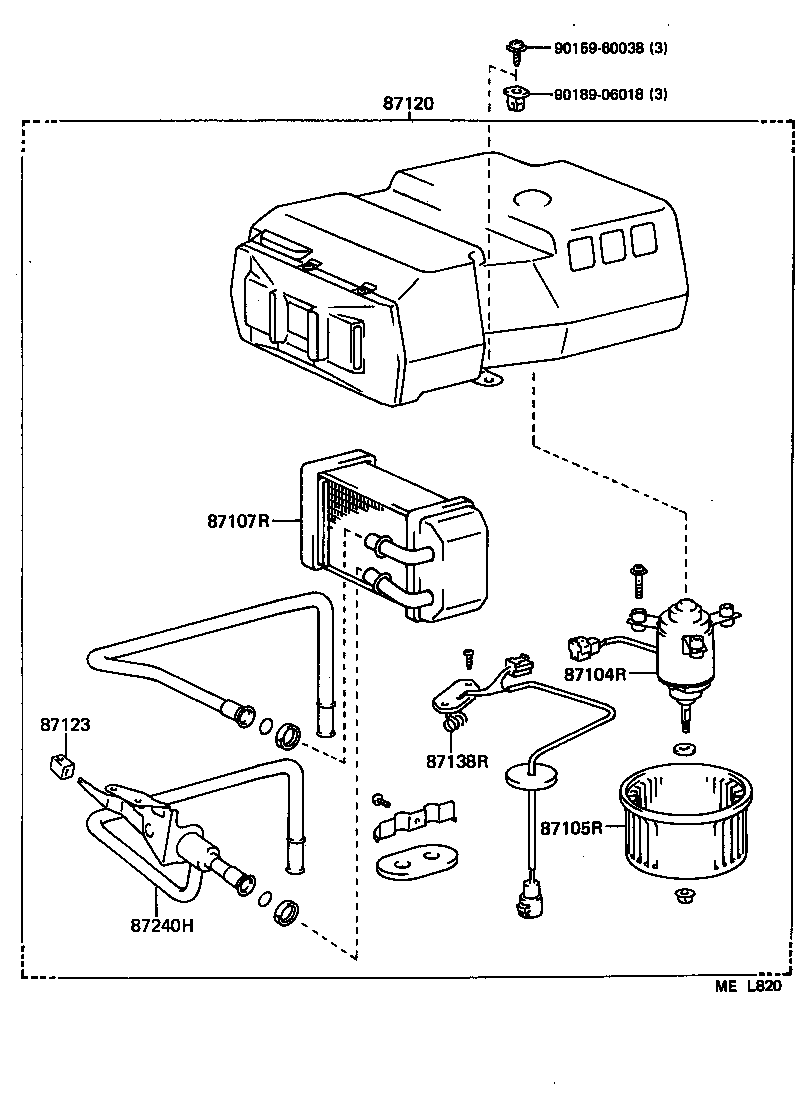

Figure MEL818 MEL818 1988-08 → — Figure MEL819 MEL819 1988-08 → — Figure MEL820 MEL820 1988-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87120 Heater Assy, Rear
87123 Knob, Heater
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87240H Valve Assy, Water Unit
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
