Heating & Air Conditioning - Water Piping

17 part groups · 2 illustrations

Illustrations

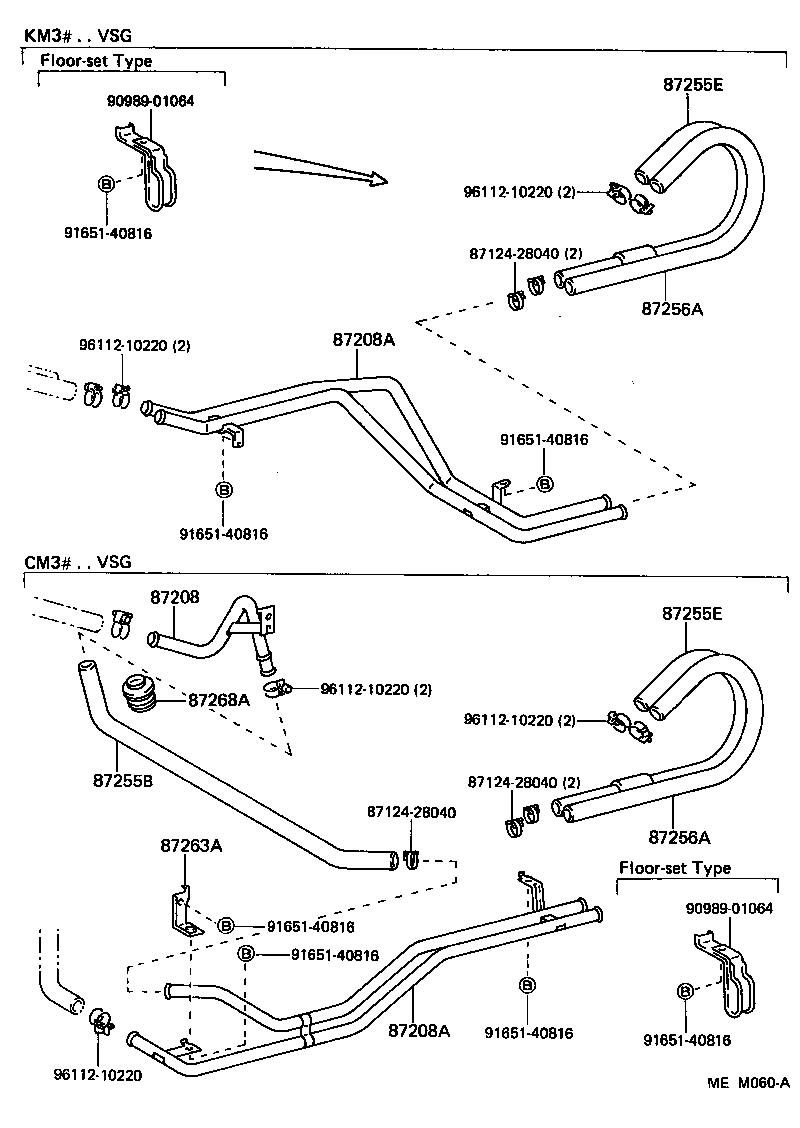

Figure MEM059B MEM059B 1988-08 → — Figure MEM060A MEM060A 1988-08 → —

Part groups

PNCDescription
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87263A Bracket, Heater Water Pipe, NO.2
87268A Protector, Rear Heater Pipe
