Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

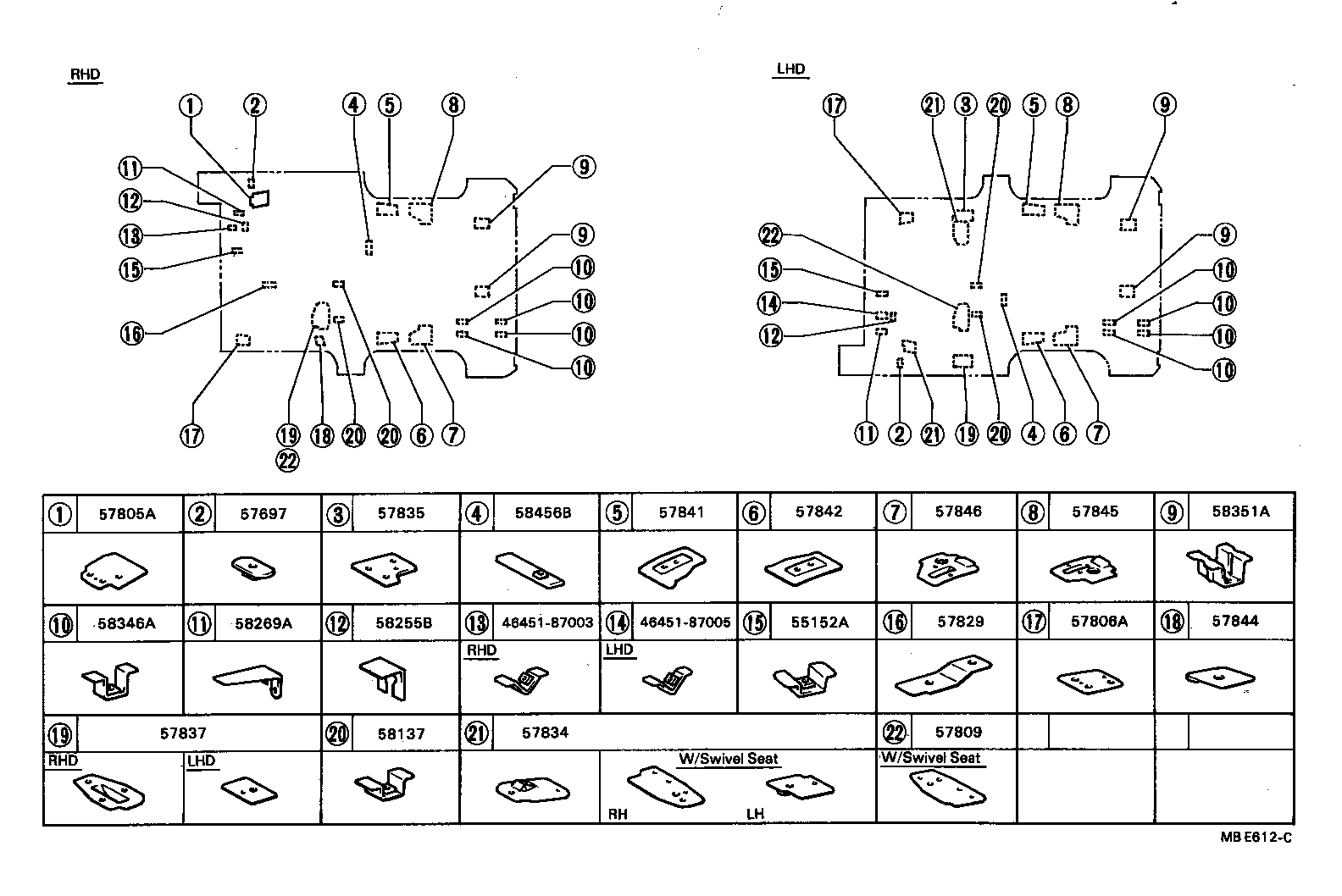

Exploded illustration MBE612C 57842 — REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH (1 parts) 57846 — REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH (1 parts) 57845 — REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH (1 parts) 58351A — BRACKET, SPARE WHEEL CARRIER (1 parts) 57841 — REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH (1 parts) 57835 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1 (1 parts) 58456B — BRACKET, BRAKE TUBE CLAMP (1 parts) 57805A — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1 (1 parts) 57697 — RETAINER, REAR SEAT CUSHION (1 parts) 57844 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.6 (3 parts) 57829 — REINFORCEMENT, SEAT LEG (1 parts) 57806A — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2 (3 parts) 4645187005 — not listed in this catalogue 55152A — BRACKET, 3 WAY ATTACHING (3 parts) 58346A — BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 (2 parts) 58269A — BRACKET, PARKING BRAKE CABLE GUIDE, NO.3 (1 parts) 58255B — BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 (1 parts) 4645187003 — not listed in this catalogue 57834 — REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4 (3 parts) 57809 — REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.5 (2 parts) 57837 — REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3 (2 parts) 58137 — BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 (2 parts)
MBE612C · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
55152A — Bracket, 3 Way Attaching
55152-87001 Bracket, 3 Way Attaching
1982-11 → 1988-08 ended
CR21,YR2# LHD —
55152-87001 Bracket, 3 Way Attaching
1986-01 → 1988-08 ended
YR31 —
55152-87701 Bracket, 3 Way Attaching
1982-11 → 1988-08 ended
CR21,YR2# RHD —
57697 — Retainer, Rear Seat Cushion
57697-87701 Retainer, Rear Seat Cushion
1985-08 → 1988-08 ended
CR21,YR2#,31 —
57805A — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
57805-87002 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.1
1982-11 → 1988-08 ended
CR21,YR2#,31 RHD —
57806A — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
57806-28010 note Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
1985-08 → 1988-08 ended
YR2#,31 LHD GL EUR —
57806-87001 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
1982-11 → 1983-12 ended
CR21,YR20 RHD —
57832-87001 Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.2
1985-08 → 1988-08 ended
CR21,YR2# RHD —
57809 — Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
57809-28010 note Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
1985-08 → 1988-08 ended
YR2#,31 LHD GL EUR —
57809-87001 note Reinforce Sub-assy, NO.1 Seat Leg, Rear NO.5
1985-08 → 1988-08 ended
YR22 4FC ARL —
57829 — Reinforcement, Seat Leg
57829-87001 Reinforcement, Seat Leg
1982-11 → 1988-08 ended
CR21,YR2#,31 RHD —
57834 — Reinforcement, Rear NO.1 Seat Leg, Front NO.4
57808-28010 Reinforcement, Rear NO.1 Seat Leg, Front NO.4
1982-11 → 1988-08 ended
CR21,YR2# LHD —
57808-28030 note Reinforcement, Rear NO.1 Seat Leg, Front NO.4
1985-08 → 1988-08 ended
YR2#,31 LHD GL EUR —
57808-28060 note Reinforcement, Rear NO.1 Seat Leg, Front NO.4
1985-08 → 1988-08 ended
YR2#,31 LHD GL EUR —
57835 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
57835-28030 note Reinforcement, Rear NO.1 Seat Leg, Rear NO.1
1985-08 → 1988-08 ended
YR2#,31 LHD GL EUR —
57837 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
57837-28010 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
1982-11 → 1988-08 ended
CR21,YR2#,31 LHD —
57837-87002 Reinforcement, Rear NO.1 Seat Leg, Rear NO.3
1982-11 → 1988-08 ended
CR21,YR2#,31 RHD —
57841 — Reinforcement, Rear NO.2 Seat Leg, Front RH
57841-87001 Reinforcement, Rear NO.2 Seat Leg, Front RH
1982-11 → 1985-08 ended
CR21,YR2# —
57842 — Reinforcement, Rear NO.2 Seat Leg, Front LH
57842-87001 Reinforcement, Rear NO.2 Seat Leg, Front LH
1982-11 → 1985-08 ended
CR21,YR2# —
57844 — Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
57844-87001 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1982-11 → 1985-08 ended
CR21,YR2# RHD —
57844-87001 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1985-08 → 1988-08 ended
YR22 4FC ARL —
57844-87001 Reinforcement, Rear NO.1 Seat Leg, Rear NO.6
1986-01 → 1988-08 ended
YR31 —
57845 — Reinforcement, Rear NO.2 Seat Leg, Rear RH
57845-87001 Reinforcement, Rear NO.2 Seat Leg, Rear RH
1982-11 → 1985-08 ended
CR21,YR2# —
57846 — Reinforcement, Rear NO.2 Seat Leg, Rear LH
57846-87001 Reinforcement, Rear NO.2 Seat Leg, Rear LH
1982-11 → 1985-08 ended
CR21,YR2# —
58137 — Bracket, Center Floor Heat Insulator, NO.4
58236-14010 Bracket, Center Floor Heat Insulator, NO.4
1982-11 → 1986-08 ended
CR21,YR2#,31 —
58236-14010 Bracket, Center Floor Heat Insulator, NO.4
1986-08 → 1988-08 ended
CR21,YR2#,31 —
58255B — Bracket, Parking Brake Cable Guide, NO.1
58267-87003 Bracket, Parking Brake Cable Guide, NO.1
1982-11 → 1988-08 ended
CR21,YR2#,31 —
58269A — Bracket, Parking Brake Cable Guide, NO.3
58269-87002 Bracket, Parking Brake Cable Guide, NO.3
1982-11 → 1988-08 ended
CR21,YR2#,31 —
58346A — Bracket, Rear Floor Heat Insulator, NO.2
44797-87002 Bracket, Rear Floor Heat Insulator, NO.2
1982-11 → 1983-08 ended
CR21,YR20 —
44797-87003 Bracket, Rear Floor Heat Insulator, NO.2
1983-08 → 1988-08 ended
CR21,YR2#,31 —
58351A — Bracket, Spare Wheel Carrier
51938-87003 Bracket, Spare Wheel Carrier
1982-11 → 1988-08 ended
CR21,YR2#,31 —
58456B — Bracket, Brake Tube Clamp
58456-87002 Bracket, Brake Tube Clamp
1982-11 → 1983-05 ended
YR20 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
