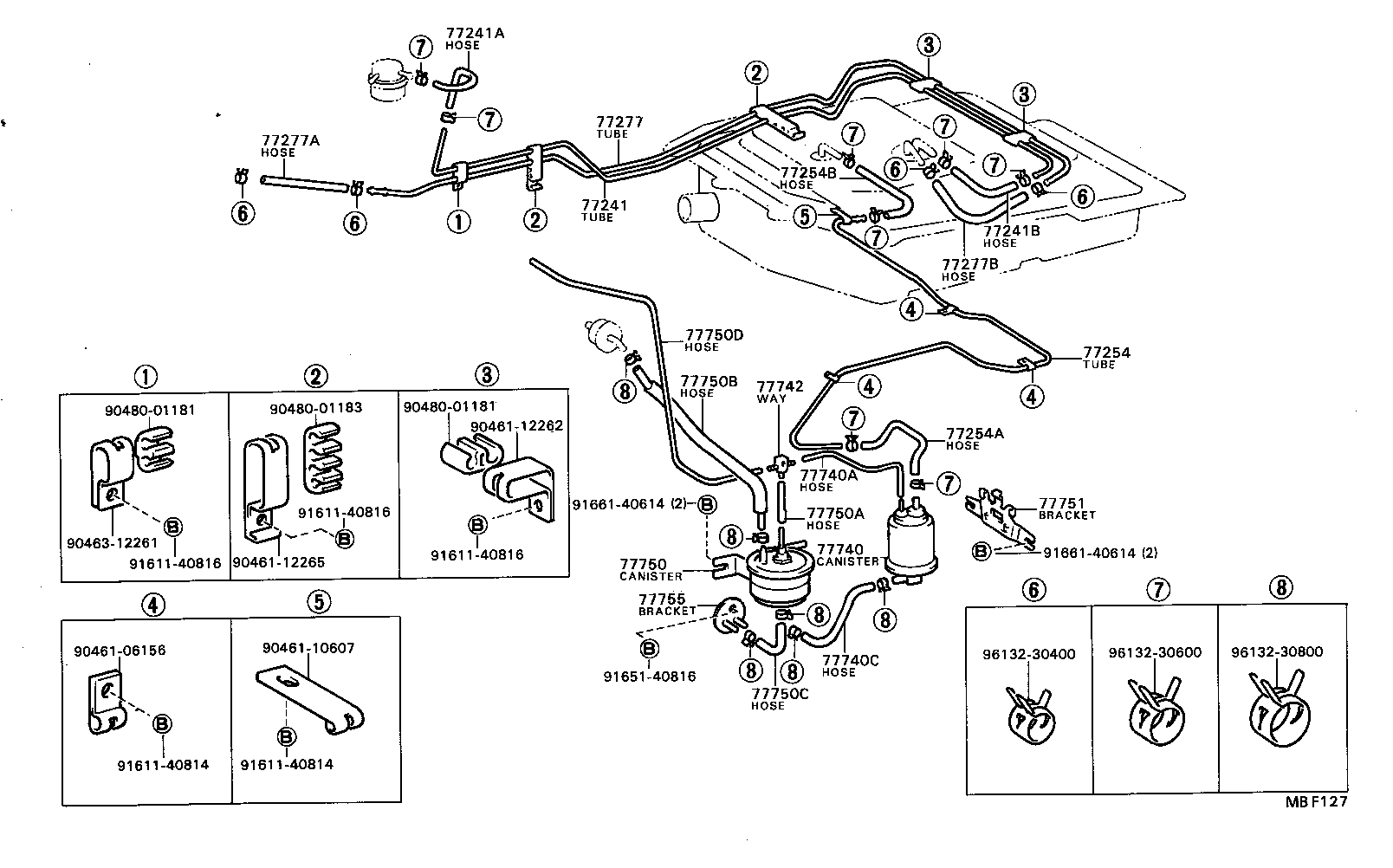

Exploded illustration MBF127 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (4 parts) 77277 — TUBE, FUEL RETURN, NO.1 (7 parts) 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (5 parts) 77254B — HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) (4 parts) 77241 — TUBE, FUEL MAIN, NO.1 (10 parts) 77241B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) (6 parts) 77277B — HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) (9 parts) 77750D — HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) (1 parts) 77254 — TUBE, FUEL EMISSION, NO.1 (4 parts) 77750B — HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) (7 parts) 77742 — WAY, 3(FOR CANISTER) (1 parts) 9048001181 — not listed in this catalogue 9048001183 — not listed in this catalogue 9048001181 — not listed in this catalogue 9046112262 — not listed in this catalogue 77254A — HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) (5 parts) 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (6 parts) 9166140614 — not listed in this catalogue 77751 — BRACKET, CHARCOAL CANISTER BASE (5 parts) 9161140816 — not listed in this catalogue 77750A — HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) (11 parts) 9046312261 — not listed in this catalogue 77740 — CANISTER ASSY, CHARCOAL (9 parts) 9166140614 — not listed in this catalogue 9161140816 — not listed in this catalogue 9046112265 — not listed in this catalogue 9161140816 — not listed in this catalogue 77750 — CANISTER ASSY, CHARCOAL (4 parts) 77755 — BRACKET, CHARCOAL CANISTER OUTLET HOSE (9 parts) 9046110607 — not listed in this catalogue 9046106156 — not listed in this catalogue 9613230800 — not listed in this catalogue 9613230600 — not listed in this catalogue 9613230400 — not listed in this catalogue 77740C — HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) (6 parts) 9165140816 — not listed in this catalogue 77750C — HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER) (5 parts) 9161140814 — not listed in this catalogue 9161140814 — not listed in this catalogue
MBF127 · 20 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
118 parts on this figure
Part number Description Fitment Price
77241 — Tube, Fuel Main, NO.1
77251-28030 Tube, Fuel Main, NO.1
1982-11 → 1982-12 ended
YR20 —
77251-28031 Tube, Fuel Main, NO.1
1982-12 → 1985-08 ended
YR2# —
77251-28040 Tube, Fuel Main, NO.1
1983-05 → 1984-08 ended
CR21 —
77251-28041 Tube, Fuel Main, NO.1
1984-08 → 1988-08 ended
CR21 —
77251-28050 Tube, Fuel Main, NO.1
1985-08 → 1988-08 ended
YR22 —
77251-28060 Tube, Fuel Main, NO.1
1985-08 → 1986-08 ended
YR21 —
77251-28061 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR21 —
77251-28080 Tube, Fuel Main, NO.1
1986-01 → 1986-05 ended
YR31 —
77251-28081 Tube, Fuel Main, NO.1
1986-05 → 1986-08 ended
YR31 —
77251-28082 Tube, Fuel Main, NO.1
1986-08 → 1988-08 ended
YR31 —
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77279-28020 Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-12 → 1988-08 ended
YR20,21 —
95332-06020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1982-11 → 1982-12 ended
YR20 —
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1983-05 → 1987-02 ended
CR21 —
95333-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR21 —
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1982-11 → 1983-10 ended
YR20 —
95332-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1983-10 → 1986-05 ended
YR20,21 —
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1983-05 → 1984-08 ended
CR21 —
95332-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1984-08 → 1987-02 ended
CR21 —
95333-06020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1986-05 → 1988-08 ended
YR21 —
95333-08030 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1987-02 → 1988-08 ended
CR21 —
77254 — Tube, Fuel Emission, NO.1
77263-28050 Tube, Fuel Emission, NO.1
1982-11 → 1984-01 ended
YR20 ARL —
77263-28050 Tube, Fuel Emission, NO.1
1984-01 → 1984-08 ended
YR21 —
77263-28050 Tube, Fuel Emission, NO.1
1984-08 → 1988-08 ended
YR2#,31 ARL —
77263-28060 Tube, Fuel Emission, NO.1
1986-08 → 1988-08 ended
YR22,31 EUR —
77254A — Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77249-28020 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1982-11 → 1984-01 ended
YR20 ARL —
77249-28020 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1984-01 → 1985-08 ended
YR21 ARL —
77249-28030 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1986-08 → 1988-08 ended
YR22,31 EUR —
77249-28040 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1984-01 → 1984-08 ended
YR21 GEN —
77249-28050 Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1985-08 → 1988-08 ended
YR2#,31 ARL —
77254B — Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1982-11 → 1984-01 ended
YR20 ARL —
95332-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1984-01 → 1984-08 ended
YR21 —
95332-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1984-08 → 1987-02 ended
YR2#,31 ARL —
95333-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1987-02 → 1988-08 ended
YR2#,31 ARL —
77277 — Tube, Fuel Return, NO.1
77255-28010 Tube, Fuel Return, NO.1
1982-11 → 1985-08 ended
YR2# —
77255-28020 Tube, Fuel Return, NO.1
1983-05 → 1984-08 ended
CR21 —
77255-28021 Tube, Fuel Return, NO.1
1984-08 → 1988-08 ended
CR21 —
77255-28030 Tube, Fuel Return, NO.1
1985-08 → 1986-08 ended
YR22,31 —
77255-28031 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR22,31 —
77255-28040 Tube, Fuel Return, NO.1
1985-08 → 1986-08 ended
YR21 —
77255-28041 Tube, Fuel Return, NO.1
1986-08 → 1988-08 ended
YR21 —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-73030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1985-08 → 1988-08 ended
YR22,31 —
90447-12063 Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1985-08 → 1988-08 ended
CR21 —
95332-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-11 → 1987-02 ended
YR20,21 —
95332-06040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1983-05 → 1985-08 ended
CR21 —
95333-04030 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
YR21 —
77277B — Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
95332-04030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-11 → 1986-11 ended
YR20,21 —
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-05 → 1983-08 ended
CR21 —
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-08 → 1983-10 ended
CR21 —
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1983-10 → 1984-08 ended
CR21 —
95332-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1985-08 → 1986-05 ended
YR22,31 —
95332-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1984-08 → 1987-02 ended
CR21 —
95333-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-05 → 1986-11 ended
YR22,31 —
95333-06020 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1986-11 → 1988-08 ended
YR2#,31 —
95333-06030 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1987-02 → 1988-08 ended
CR21 —
77740 — Canister Assy, Charcoal
77704-27100 Canister Assy, Charcoal
1986-01 → 1987-08 ended
YR2#,31 ARL —
77704-28080 Canister Assy, Charcoal
1985-08 → 1986-01 ended
YR2# ARL —
77704-28080 Canister Assy, Charcoal
1986-01 → 1987-08 ended
YR22,31 ARL —
77704-28100 Canister Assy, Charcoal
1987-08 → 1988-08 ended
YR21 ARL —
77704-28110 Canister Assy, Charcoal
1987-08 → 1988-08 ended
YR22,31 ARL —
77704-60050 Canister Assy, Charcoal
1984-01 → 1984-08 ended
YR21 —
77704-60050 Canister Assy, Charcoal
1982-11 → 1984-01 ended
YR20 ARL —
77704-60050 Canister Assy, Charcoal
1984-08 → 1985-08 ended
YR21 ARL —
77740-28100 Canister Assy, Charcoal
1986-08 → 1988-08 ended
YR22,31 EUR —
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
90447-04071 Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR21 ARL —
90999-92004 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
YR22,31 —
95411-10630 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1982-11 → 1984-01 ended
YR20 ARL —
95411-10695 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1984-01 → 1984-08 ended
YR21 —
95411-10695 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1984-08 → 1985-08 ended
YR21 ARL —
95411-19995 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1985-08 → 1988-03 ended
YR22,31 —
77740C — Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
90445-12121 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR2# ARL —
95332-08020 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1984-01 → 1984-08 ended
YR21 —
95332-08020 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1984-08 → 1985-08 ended
YR21 ARL —
95332-08020 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1982-11 → 1984-01 ended
YR20 ARL —
95332-08030 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1986-01 → 1987-02 ended
YR31 ARL —
95333-08030 note Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
1987-02 → 1988-08 ended
YR31 ARL —
77742 — Way, 3(FOR CANISTER)
90413-04005 Way, 3(FOR CANISTER)
1982-11 → 1984-01 ended
YR20 ARL —
77750 — Canister Assy, Charcoal
77704-28090 Canister Assy, Charcoal
1985-08 → 1988-08 ended
YR21 ARL —
77740-28080 Canister Assy, Charcoal
1982-11 → 1984-08 ended
YR20 ARL,EUR —
77740-28080 Canister Assy, Charcoal
1984-01 → 1985-08 ended
YR21 —
77740-28080 Canister Assy, Charcoal
1985-08 → 1988-08 ended
YR21 EUR —
77750A — Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
90445-08201 Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1984-01 → 1984-08 ended
YR21 GEN —
90447-04070 Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR21 ARL —
90447-14007 Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1984-08 → 1988-08 ended
YR21 GEN —
90447-14007 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1985-11 → 1988-08 ended
YR21 GL ARL —
90447-14007 Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1982-11 → 1984-08 ended
YR20 GEN —
90999-92004 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1988-03 → 1988-08 ended
YR21 EUR —
95411-10495 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1984-01 → 1985-08 ended
YR21 ARL —
95411-10630 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1982-11 → 1984-01 ended
YR20 ARL —
95411-10660 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1984-08 → 1985-08 ended
YR21 EUR —
95411-10660 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1982-11 → 1984-08 ended
YR20 EUR —
95411-10695 note Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
1985-08 → 1988-03 ended
YR21 EUR —
77750B — Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
23829-72020 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1985-08 → 1987-08 ended
YR21 ARL —
23829-72050 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1987-08 → 1988-08 ended
YR21 ARL —
90447-14001 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1982-11 → 1984-08 ended
YR20 ARL,EUR —
90447-14001 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1984-01 → 1984-08 ended
YR21 —
90447-14001 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1984-08 → 1985-08 ended
YR21 ARL,EUR —
90447-14001 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1985-08 → 1987-08 ended
YR21 EUR —
90447-14032 Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
1987-08 → 1988-08 ended
YR21 EUR —
77750C — Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
23826-72010 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR21 ARL —
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1984-08 → 1985-08 ended
YR21 ARL,EUR —
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1982-11 → 1984-08 ended
YR20 ARL,EUR —
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1985-08 → 1988-08 ended
YR21 EUR —
90910-05165 Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER)
1984-01 → 1984-08 ended
YR21 —
77750D — Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
95411-10660 note Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER)
1982-11 → 1984-01 ended
YR20 ARL —
77751 — Bracket, Charcoal Canister Base
77751-14090 Bracket, Charcoal Canister Base
1984-01 → 1984-08 ended
YR21 GEN —
77751-28060 Bracket, Charcoal Canister Base
1982-11 → 1985-08 ended
YR2# ARL —
77751-28070 note Bracket, Charcoal Canister Base
1985-08 → 1988-08 ended
YR21 ARL —
77751-28080 note Bracket, Charcoal Canister Base
1985-08 → 1987-08 ended
YR2#,31 ARL —
77751-28090 note Bracket, Charcoal Canister Base
1987-08 → 1988-08 ended
YR2#,31 ARL —
77755 — Bracket, Charcoal Canister Outlet Hose
77755-28010 Bracket, Charcoal Canister Outlet Hose
1982-11 → 1983-06 ended
YR20 ARL —
77755-28011 Bracket, Charcoal Canister Outlet Hose
1983-06 → 1984-01 ended
YR20 ARL —
77755-28011 Bracket, Charcoal Canister Outlet Hose
1984-01 → 1984-08 ended
YR21 —
77755-28011 Bracket, Charcoal Canister Outlet Hose
1984-08 → 1988-08 ended
YR2#,31 ARL —
77755-28020 Bracket, Charcoal Canister Outlet Hose
1982-11 → 1983-06 ended
YR20 EUR,GEN —
77755-28021 Bracket, Charcoal Canister Outlet Hose
1983-06 → 1984-08 ended
YR20 EUR,GEN —
77755-28021 Bracket, Charcoal Canister Outlet Hose
1984-08 → 1988-08 ended
YR2# EUR,GEN —
77755-28021 note Bracket, Charcoal Canister Outlet Hose
1985-11 → 1988-08 ended
YR21 GL ARL —
77755-28030 Bracket, Charcoal Canister Outlet Hose
1986-08 → 1988-08 ended
YR31 EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
