Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

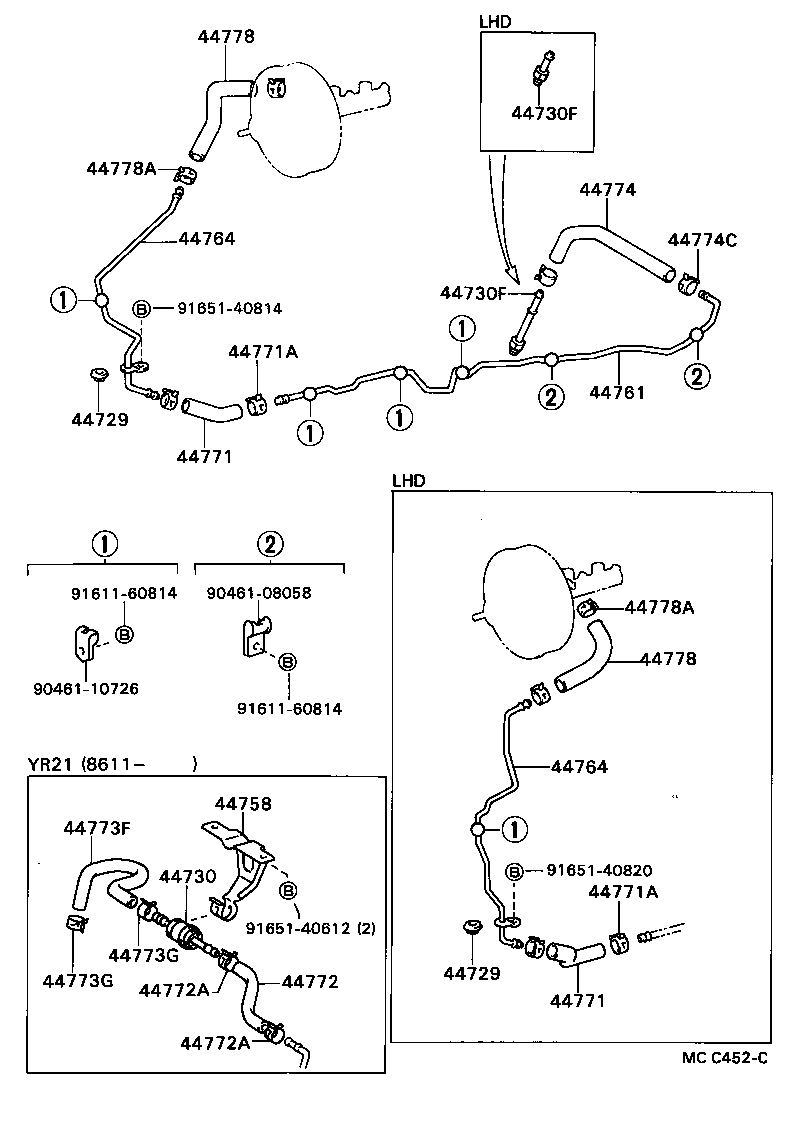

Exploded illustration MCC452C 44778 — HOSE, CONNECTOR TO CHECK VALVE (4 parts) 44730F — UNION, VACUUM HOSE(FOR MANIFOLD SIDE) (3 parts) 44778A — CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) (2 parts) 44774 — HOSE, UNION TO CONNECTOR TUBE (4 parts) 44764 — TUBE, BOOSTER VACUUM (8 parts) 44774C — CLIP(FOR UNION TO CONNECTOR TUBE HOSE) (3 parts) 44730F — UNION, VACUUM HOSE(FOR MANIFOLD SIDE) (3 parts) 9165140814 — not listed in this catalogue 44771A — CLIP(FOR VACUUM TUBE CONNECTOR HOSE) (2 parts) 44761 — TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR (6 parts) 44729 — GASKET, VACUUM TUBE (1 parts) 44771 — HOSE, VACUUM TUBE CONNECTOR (5 parts) 9161160814 — not listed in this catalogue 9046108058 — not listed in this catalogue 44778A — CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) (2 parts) 44778 — HOSE, CONNECTOR TO CHECK VALVE (4 parts) 9046110726 — not listed in this catalogue 9161160814 — not listed in this catalogue 44764 — TUBE, BOOSTER VACUUM (8 parts) 44758 — BRACKET, VACUUM CHECK VALVE (6 parts) 44773F — HOSE, UNION TO CHECK VALVE (2 parts) 9165140820 — not listed in this catalogue 44730 — VALVE ASSY, VACUUM CHECK(FOR BRAKE) (17 parts) 44771A — CLIP(FOR VACUUM TUBE CONNECTOR HOSE) (2 parts) 9165140612 — not listed in this catalogue 44773G — CLIP(FOR UNION TO CHECK VALVE HOSE) (2 parts) 44729 — GASKET, VACUUM TUBE (1 parts) 44773G — CLIP(FOR UNION TO CHECK VALVE HOSE) (2 parts) 44772 — HOSE, CHECK VALVE TO CONNECTOR TUBE (2 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (1 parts) 44771 — HOSE, VACUUM TUBE CONNECTOR (5 parts) 44772A — CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) (1 parts)
MCC452C · 25 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
44729 — Gasket, Vacuum Tube
44729-25010 Gasket, Vacuum Tube
1982-11 → 1988-08 ended
CR21,YR2#,31 —
44730 — Valve Assy, Vacuum Check(FOR BRAKE)
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-02 ended
YR2#,31 —
44730-14050 Valve Assy, Vacuum Check(FOR BRAKE)
1986-02 → 1986-08 ended
YR21 LHD —
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-02 → 1986-08 ended
YR2#,31 RHD —
44730-14050 Valve Assy, Vacuum Check(FOR BRAKE)
1986-08 → 1986-11 ended
YR2#,31 EUR,GEN —
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-08 → 1986-11 ended
YR2#,31 ARL —
44730-14050 Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
YR22,31 EUR —
44730-14050 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
YR22,31 ARL —
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1987-05 ended
YR21,31 ARL —
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1985-08 → 1986-02 ended
YR2#,31 —
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-02 → 1986-08 ended
YR2#,31 RHD —
44730-14060 note Valve Assy, Vacuum Check(FOR BRAKE)
1986-08 → 1986-11 ended
YR2#,31 ARL —
44730-20060 Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
YR2# ARL,GEN —
44730-22090 Valve Assy, Vacuum Check(FOR BRAKE)
1982-11 → 1985-08 ended
YR2# EUR —
44730-24020 Valve Assy, Vacuum Check(FOR BRAKE)
1986-11 → 1988-08 ended
YR21 —
44730-28010 Valve Assy, Vacuum Check(FOR BRAKE)
1987-05 → 1988-08 ended
YR22,31 EUR —
44730-28010 Valve Assy, Vacuum Check(FOR BRAKE)
1987-05 → 1988-08 ended
YR21,31 ARL —
44730-60040 Valve Assy, Vacuum Check(FOR BRAKE)
1983-05 → 1988-08 ended
CR21 —
44730F — Union, Vacuum Hose(FOR MANIFOLD SIDE)
90404-51007 Union, Vacuum Hose(FOR MANIFOLD SIDE)
1982-11 → 1985-08 ended
YR2# —
90404-51031 Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-08 → 1988-08 ended
YR21 —
90404-51319 Union, Vacuum Hose(FOR MANIFOLD SIDE)
1985-08 → 1988-08 ended
YR22,31 —
44758 — Bracket, Vacuum Check Valve
44758-28020 Bracket, Vacuum Check Valve
1982-11 → 1985-08 ended
YR2# LHD —
44758-28050 Bracket, Vacuum Check Valve
1982-11 → 1985-08 ended
YR2# RHD —
44758-28060 Bracket, Vacuum Check Valve
1985-08 → 1986-11 ended
YR2#,31 RHD —
44758-28060 Bracket, Vacuum Check Valve
1986-11 → 1988-08 ended
YR22,31 ARL —
44758-28070 Bracket, Vacuum Check Valve
1985-08 → 1986-11 ended
YR21 LHD —
44758-28080 Bracket, Vacuum Check Valve
1986-11 → 1988-08 ended
YR21 —
44761 — Tube, Intake Manifold OR Vacuum Pump TO Connector
44761-28050 Tube, Intake Manifold OR Vacuum Pump TO Connector
1982-11 → 1983-05 ended
YR20 —
44761-28051 Tube, Intake Manifold OR Vacuum Pump TO Connector
1983-05 → 1985-08 ended
YR2# —
44761-28080 Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08 ended
YR21 —
44761-28100 Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08 ended
CR21 —
44761-28110 Tube, Intake Manifold OR Vacuum Pump TO Connector
1986-01 → 1988-08 ended
YR31 —
44761-28120 Tube, Intake Manifold OR Vacuum Pump TO Connector
1985-08 → 1988-08 ended
YR22 —
44764 — Tube, Booster Vacuum
44764-28010 Tube, Booster Vacuum
1985-08 → 1988-08 ended
YR2#,31 RHD —
44764-28010 Tube, Booster Vacuum
1982-11 → 1985-08 ended
CR21,YR2# RHD —
44764-28020 Tube, Booster Vacuum
1982-11 → 1985-08 ended
CR21,YR2# LHD —
44764-28030 note Tube, Booster Vacuum
1984-08 → 1987-01 ended
YR22 EUR;YR21 LHD DLX +4 —
44764-28030 note Tube, Booster Vacuum
1987-01 → 1988-08 ended
YR22 5F EUR —
44764-28030 note Tube, Booster Vacuum
1982-11 → 1984-08 ended
YR20 LHD EUR —
44764-28040 Tube, Booster Vacuum
1985-08 → 1988-08 ended
CR21 —
44764-28050 Tube, Booster Vacuum
1985-08 → 1988-08 ended
YR21,31 LHD;YR22 GL EUR —
44771 — Hose, Vacuum Tube Connector
44771-28010 Hose, Vacuum Tube Connector
1982-11 → 1985-08 ended
CR21,YR2# RHD —
44771-28010 Hose, Vacuum Tube Connector
1985-08 → 1988-08 ended
YR2#,31 RHD —
44771-28020 Hose, Vacuum Tube Connector
1982-11 → 1985-08 ended
CR21,YR2# LHD —
44771-28020 Hose, Vacuum Tube Connector
1985-08 → 1988-08 ended
YR21,31 LHD —
44771-28030 Hose, Vacuum Tube Connector
1985-08 → 1988-08 ended
CR21 —
44771A — Clip(FOR VACUUM TUBE CONNECTOR HOSE)
90467-16002 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1985-08 → 1988-08 ended
CR21,YR2#,31 —
90467-16141 Clip(FOR VACUUM TUBE CONNECTOR HOSE)
1982-11 → 1985-08 ended
CR21,YR2# —
44772 — Hose, Check Valve TO Connector Tube
44772-28030 Hose, Check Valve TO Connector Tube
1985-08 → 1988-08 ended
CR21 —
44772-28040 Hose, Check Valve TO Connector Tube
1986-11 → 1988-08 ended
YR21 —
44772A — Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002 Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
1985-08 → 1988-08 ended
YR21 —
44773F — Hose, Union TO Check Valve
44750-28020 Hose, Union TO Check Valve
1983-05 → 1985-08 ended
CR21 —
44773-28020 Hose, Union TO Check Valve
1986-11 → 1988-08 ended
YR21 —
44773G — Clip(FOR UNION TO CHECK VALVE HOSE)
90467-16002 Clip(FOR UNION TO CHECK VALVE HOSE)
1986-11 → 1988-08 ended
YR21 —
90467-16141 Clip(FOR UNION TO CHECK VALVE HOSE)
1983-05 → 1985-08 ended
CR21 —
44774 — Hose, Union TO Connector Tube
44774-28070 Hose, Union TO Connector Tube
1982-11 → 1985-08 ended
YR2# —
44774-28070 Hose, Union TO Connector Tube
1985-08 → 1986-11 ended
YR21 —
44774-28080 Hose, Union TO Connector Tube
1985-08 → 1988-08 ended
YR22,31 —
44774-28100 Hose, Union TO Connector Tube
1985-08 → 1988-08 ended
CR21 —
44774C — Clip(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002 Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1985-08 → 1986-11 ended
YR2#,31 —
90467-16002 Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1986-11 → 1988-08 ended
YR22,31 —
90467-16141 Clip(FOR UNION TO CONNECTOR TUBE HOSE)
1982-11 → 1985-08 ended
YR2# —
44778 — Hose, Connector TO Check Valve
44778-28010 Hose, Connector TO Check Valve
1982-11 → 1985-08 ended
CR21,YR2# RHD —
44778-28020 Hose, Connector TO Check Valve
1982-11 → 1985-08 ended
CR21,YR2# LHD —
44778-28030 Hose, Connector TO Check Valve
1985-08 → 1988-08 ended
CR21,YR2#,31 RHD —
44778-28040 Hose, Connector TO Check Valve
1985-08 → 1988-08 ended
YR21,31 LHD —
44778A — Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
90467-16002 Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1985-08 → 1988-08 ended
CR21,YR2#,31 —
90467-16141 Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
1982-11 → 1985-08 ended
CR21,YR2# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
