Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

10 part groups · 2 illustrations

Illustrations

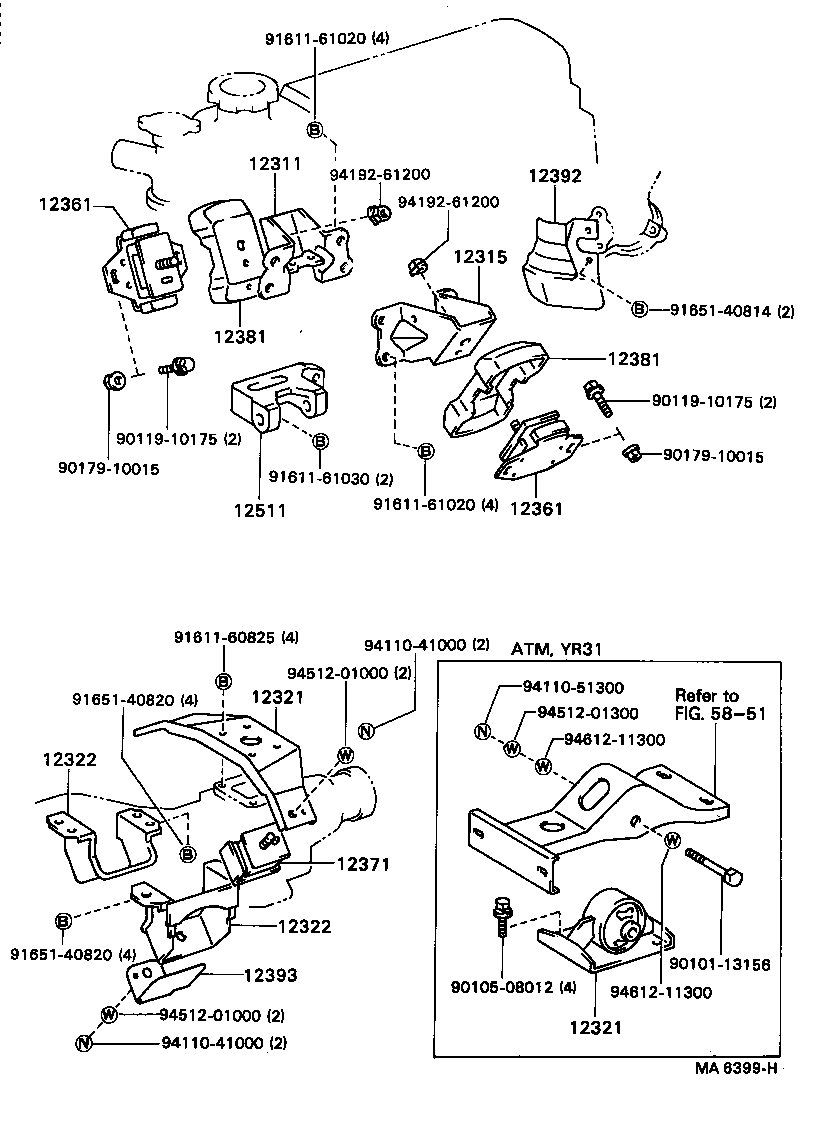

Figure MA6766C MA6766C 1983-05 → — Figure MA6399H MA6399H 1982-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12393 Insulator, Engine Mounting Heat, Front
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
