Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 6 illustrations

Illustrations

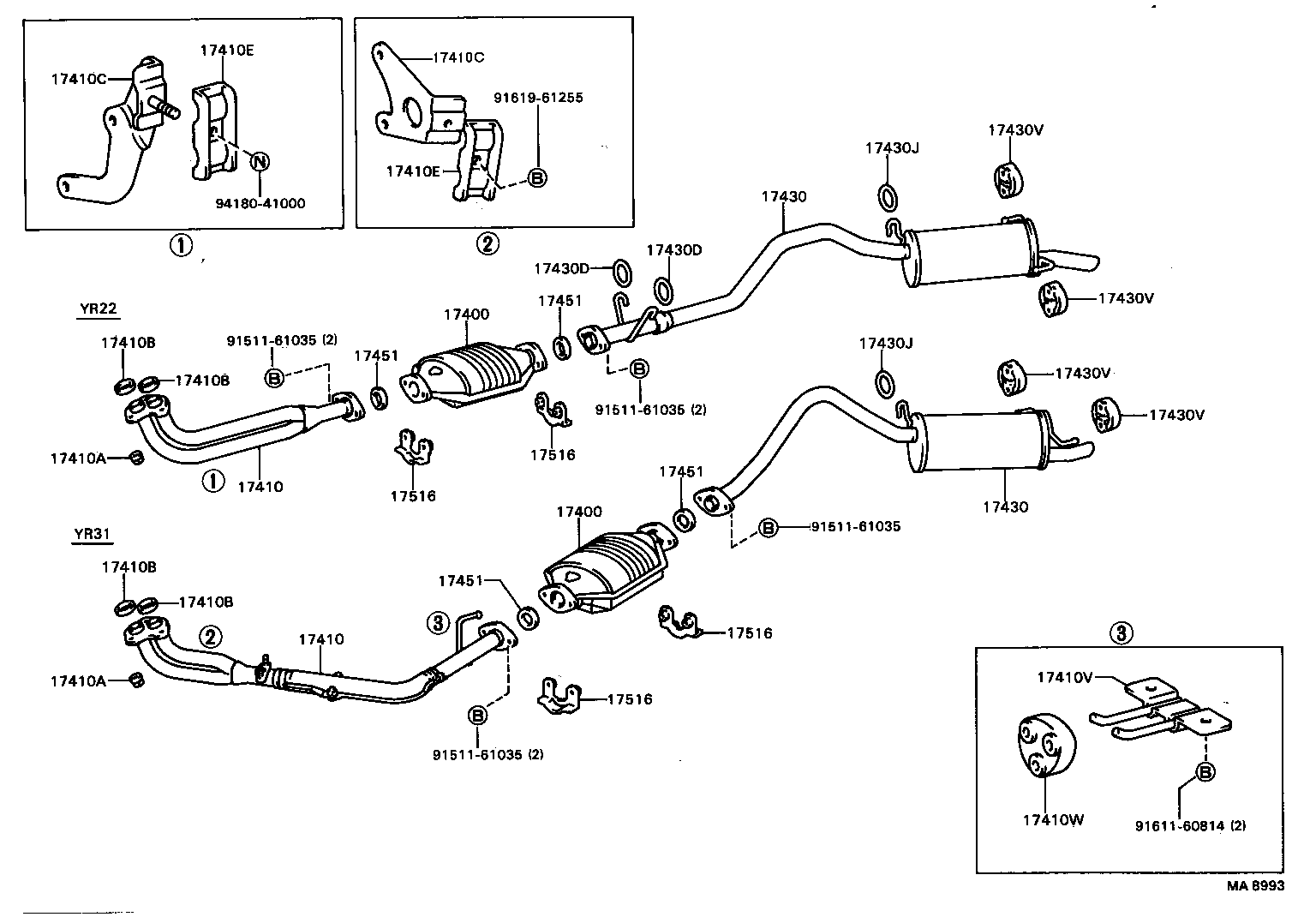

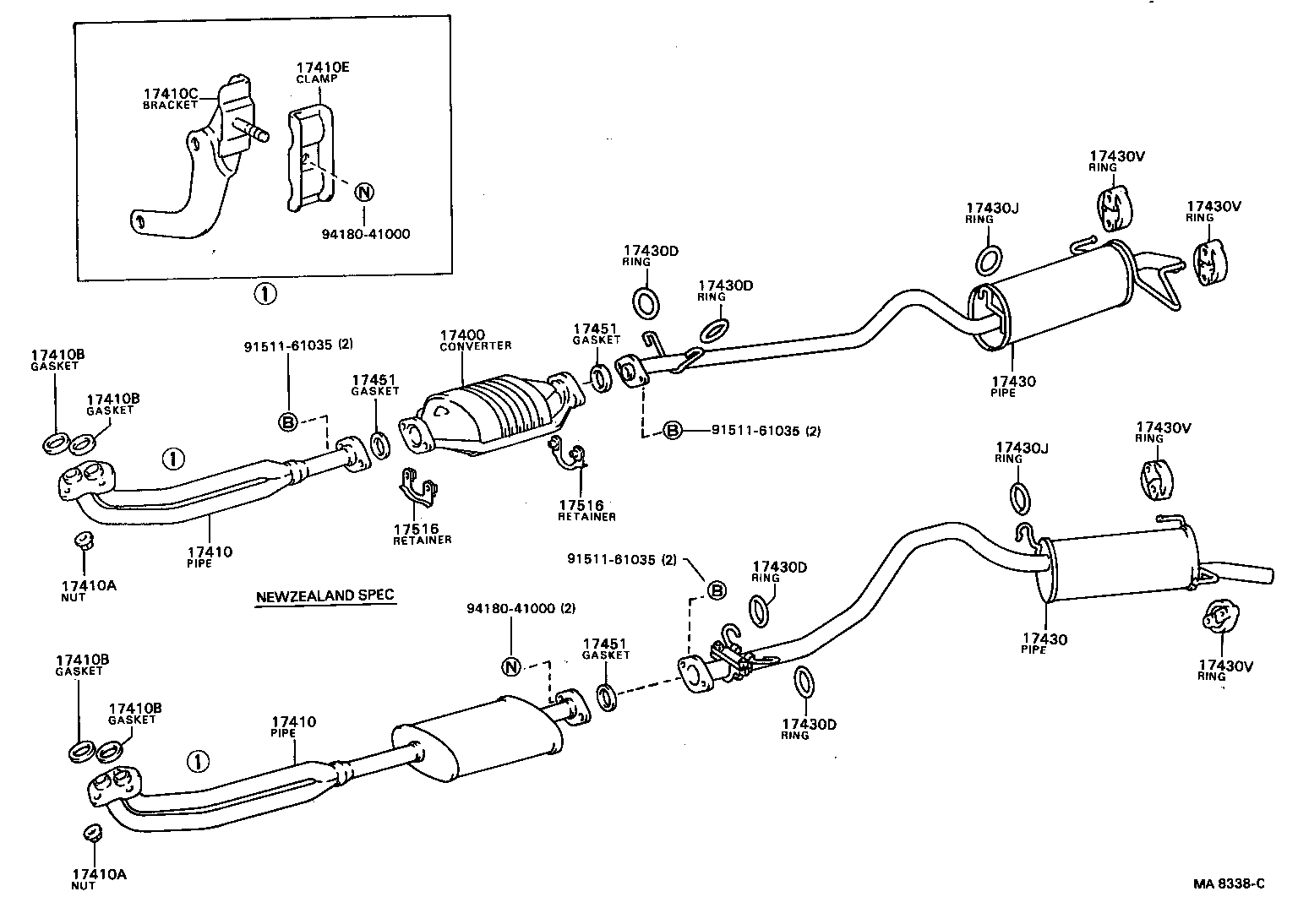

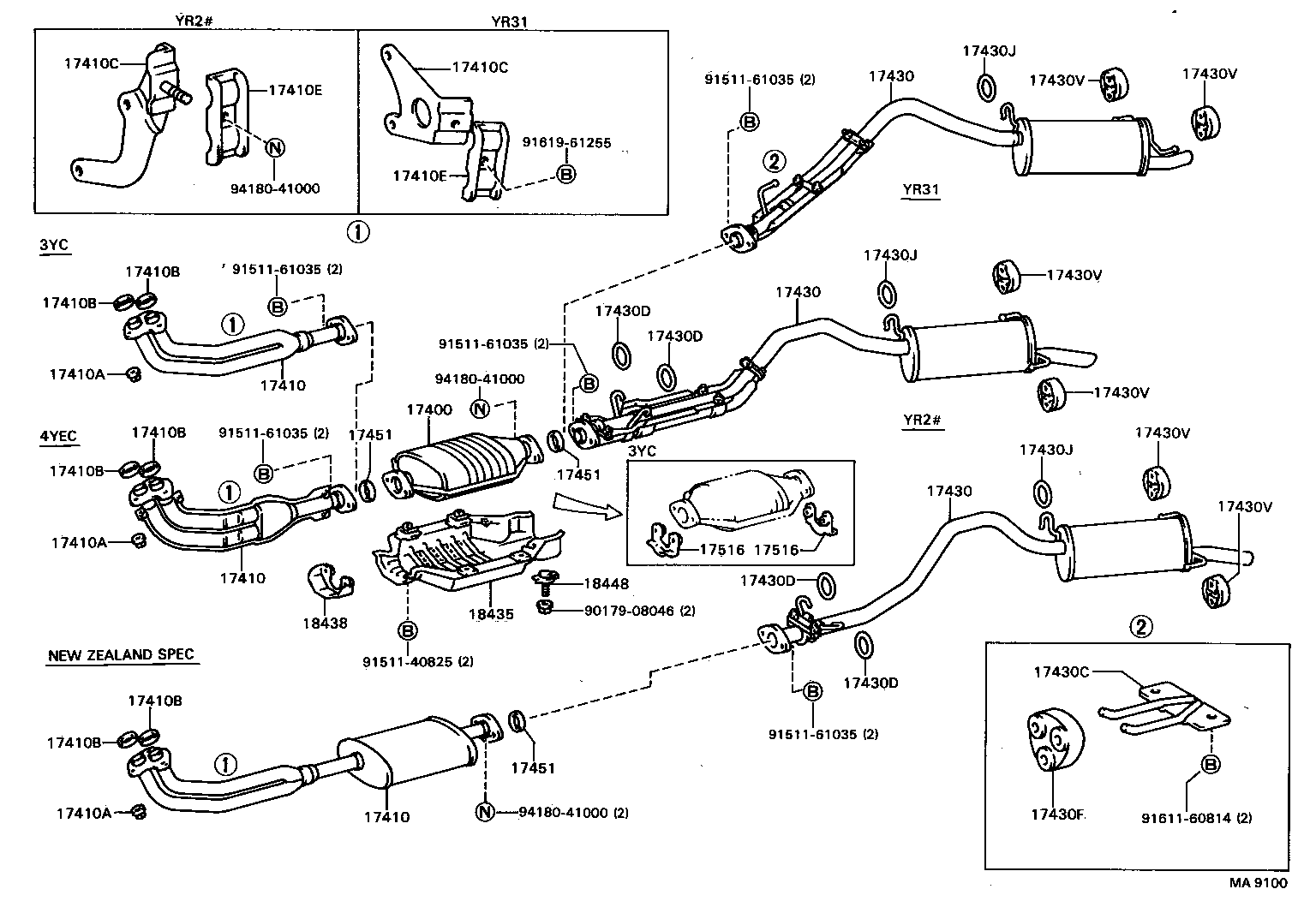

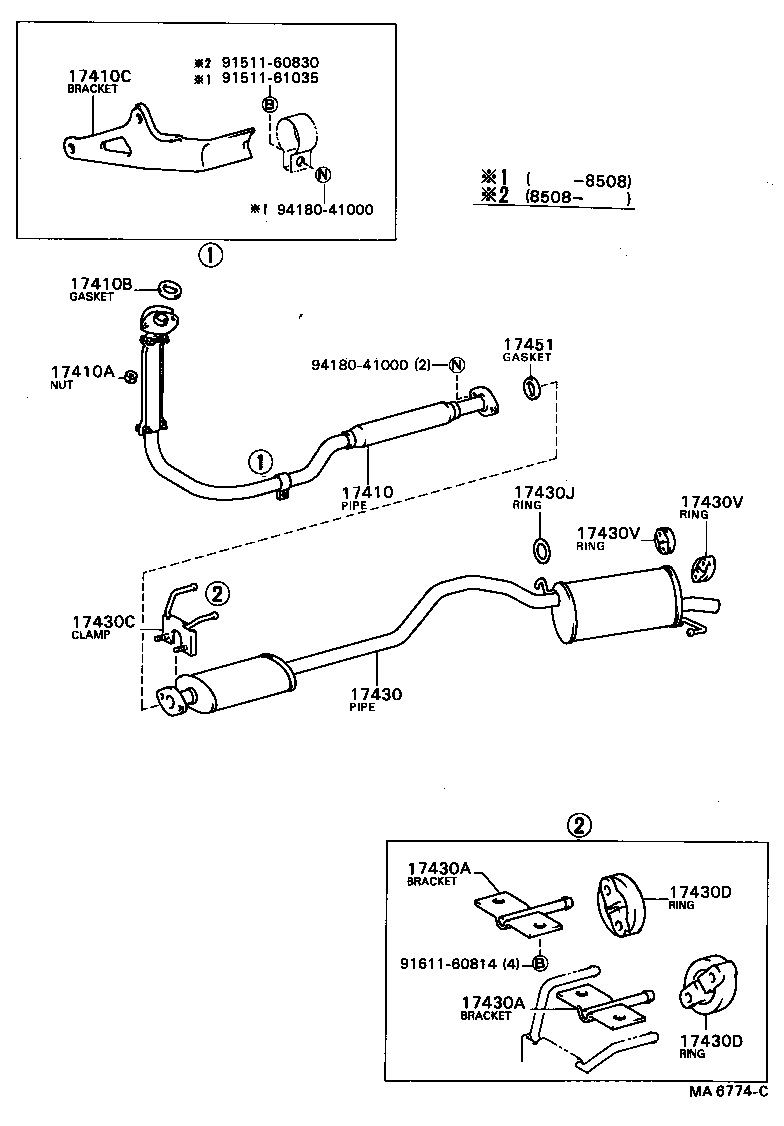

Figure MA6333B MA6333B 1982-11 → 1985-08 Figure MA6333B MA6333B 1985-08 → — Figure MA8338C MA8338C 1985-08 → 1985-12 Figure MA9100 MA9100 1985-12 → — Figure MA8993 MA8993 1986-08 → — Figure MA6774C MA6774C 1983-05 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430J Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17516 Retainer, Exhaust Pipe, NO.2
18435 Protector, Catalytic Converter
18438 Bracket, Connector Protector, Front
18448 Bracket, Converter Protector, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
