Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

35 part groups · 8 illustrations

Illustrations

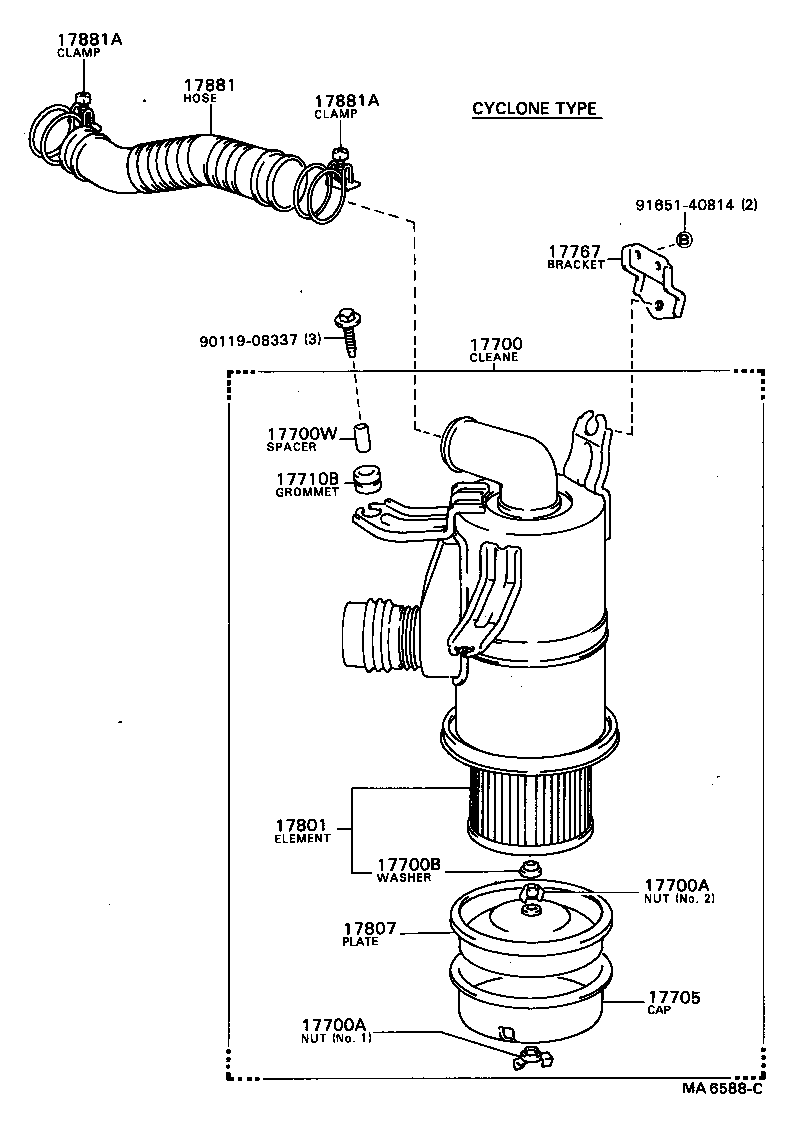

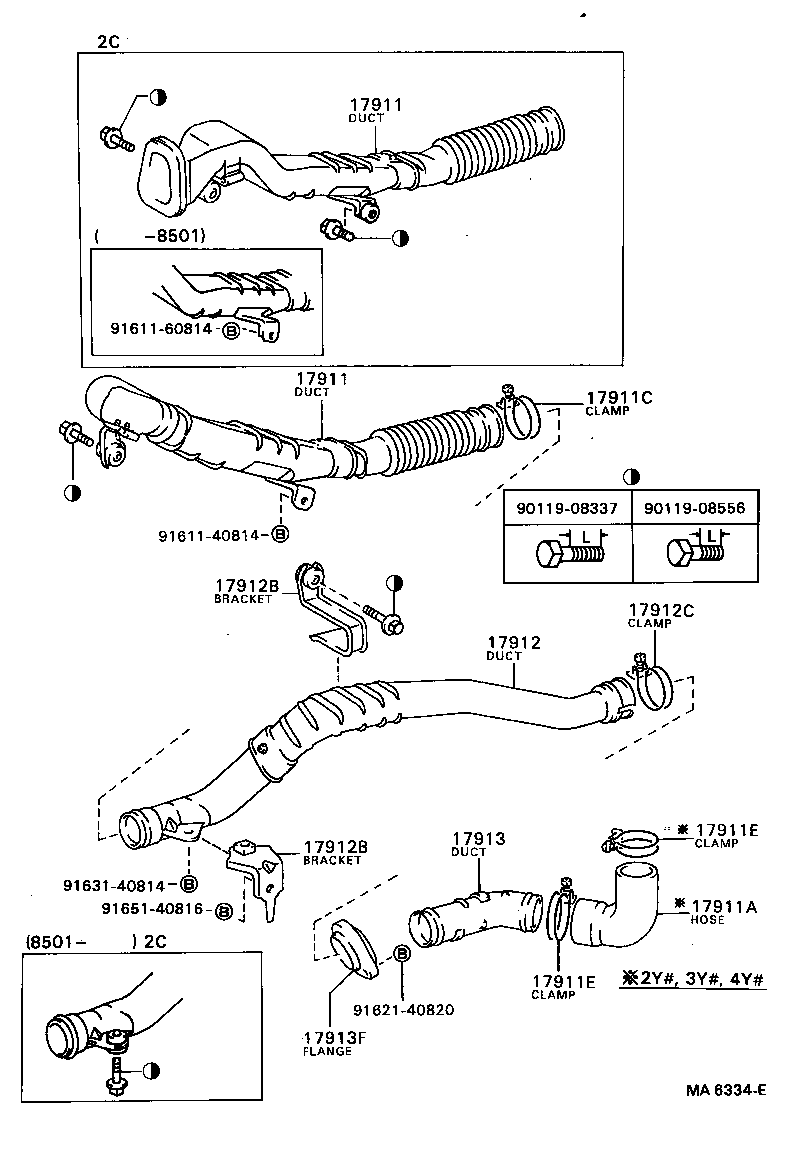

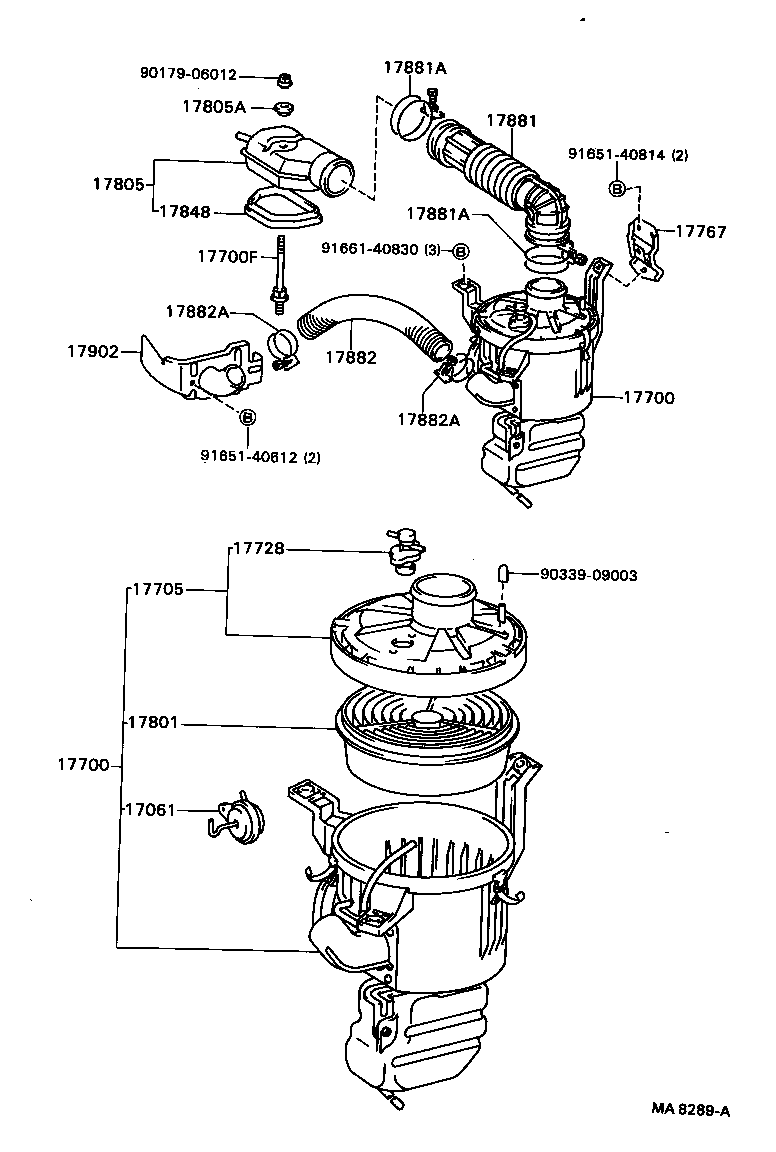

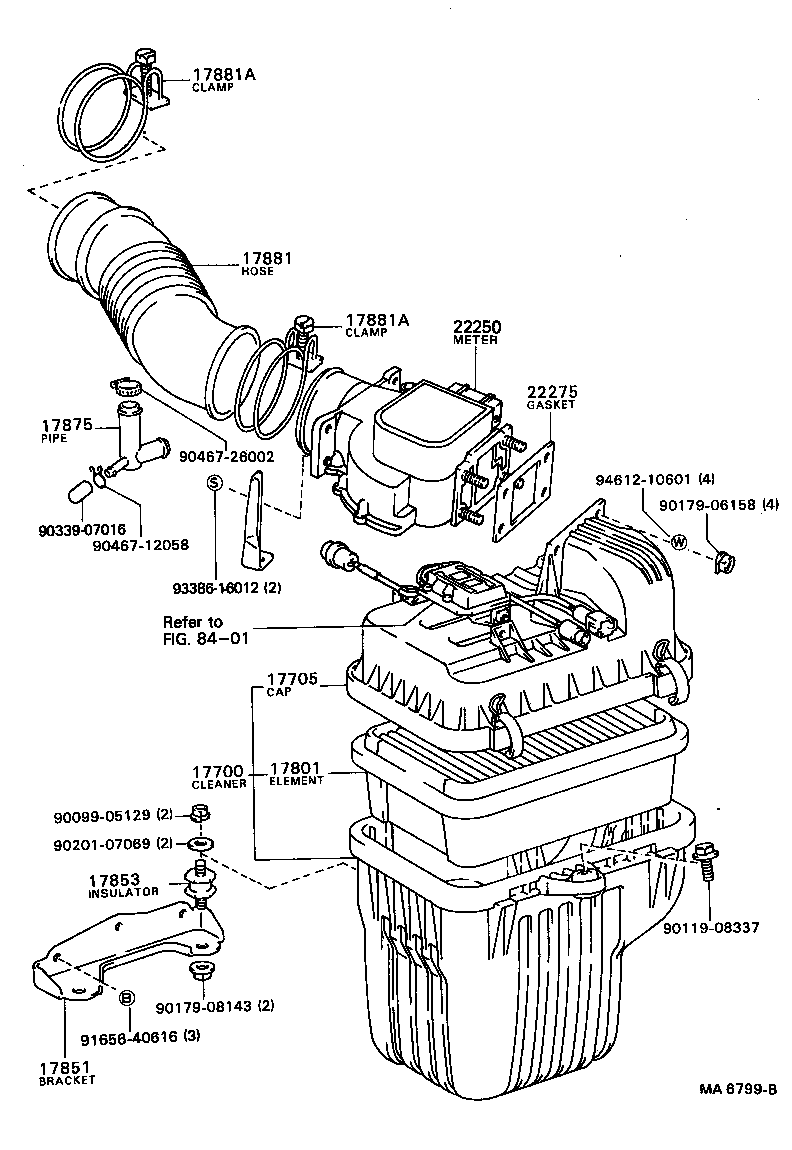

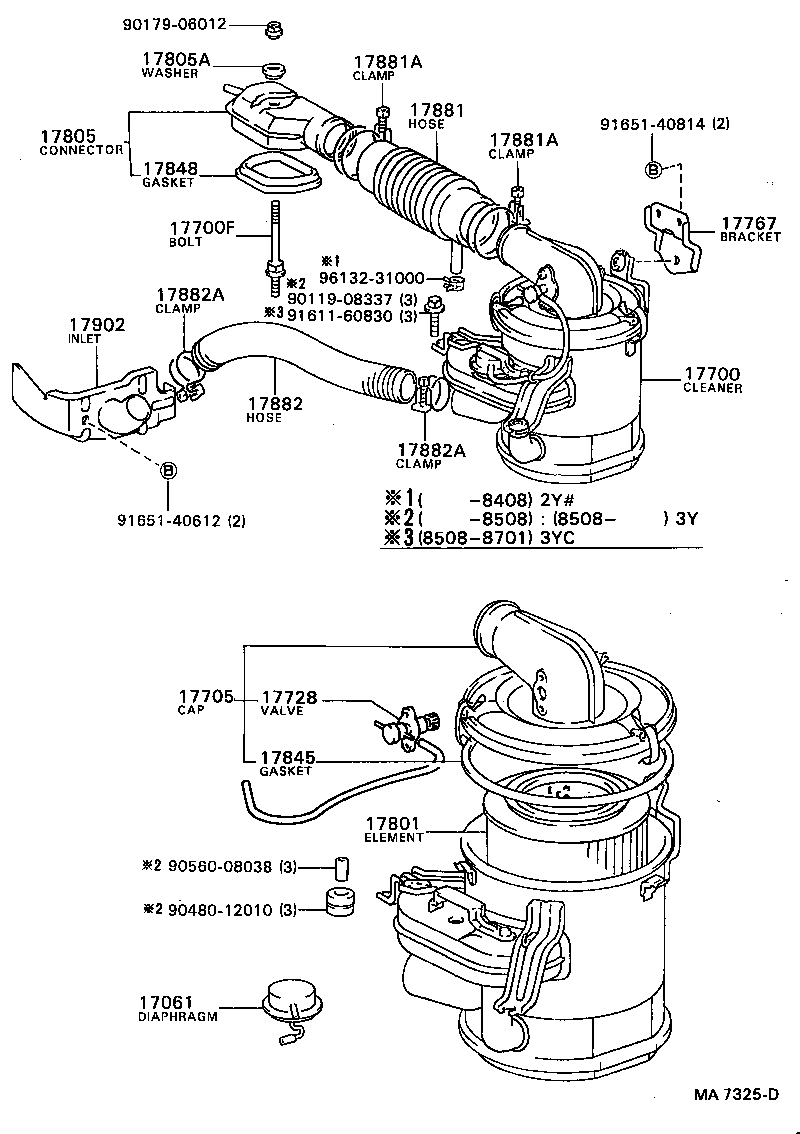

Figure MA6345 MA6345 1983-05 → 1984-08 Figure MA6588C MA6588C 1983-05 → — Figure MA6334E MA6334E 1982-11 → — Figure MA7325D MA7325D 1982-11 → 1985-08 Figure MA7325D MA7325D 1985-08 → — Figure MA8289A MA8289A 1985-08 → — Figure MA6799B MA6799B 1985-08 → — Figure MA6334E MA6334E 1982-11 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17700W Spacer(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17728 Valve, Thermostatic
17767 Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17807 Plate Sub-assy, Air Cleaner Filter Set
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17853 Insulator, Air Cleaner Bracket
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17911 Duct, Cool Air Intake, NO.1
17911A Hose, Cool Air Intake, NO.1
17911C Clamp, Cool Air Intake Duct, NO.1
17911E Clamp, Cool Air Intake Hose, NO.1
17912 Duct, Cool Air Intake, NO.2
17912B Bracket, Cool Air Intake Duct, NO.2
17912C Clamp, Cool Air Intake Duct, NO.2
17913 Duct, Cool Air Intake, NO.3
17913F Flange, Cool Air Intake Duct, NO.3
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
