Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

27 part groups · 9 illustrations

Illustrations

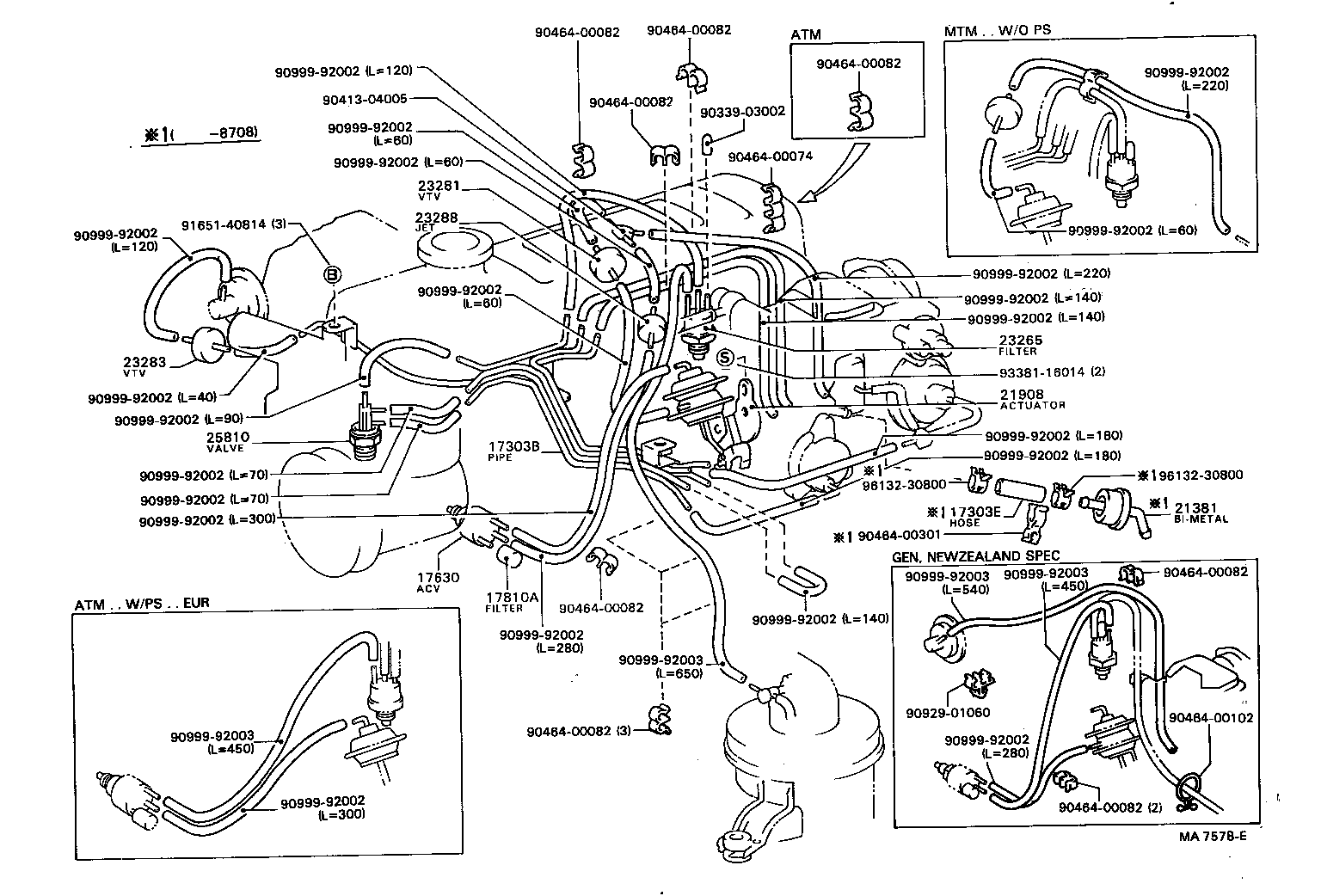

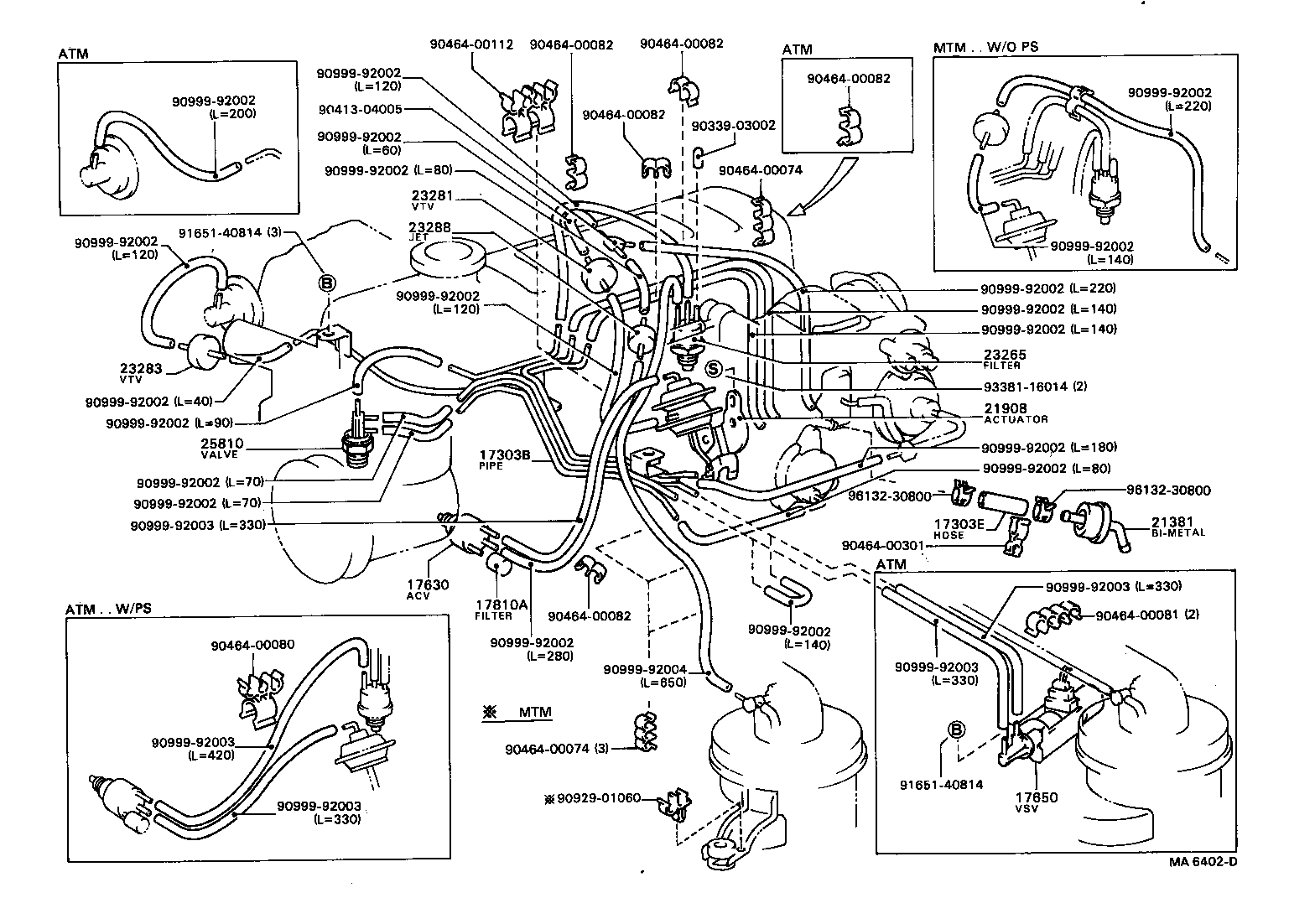

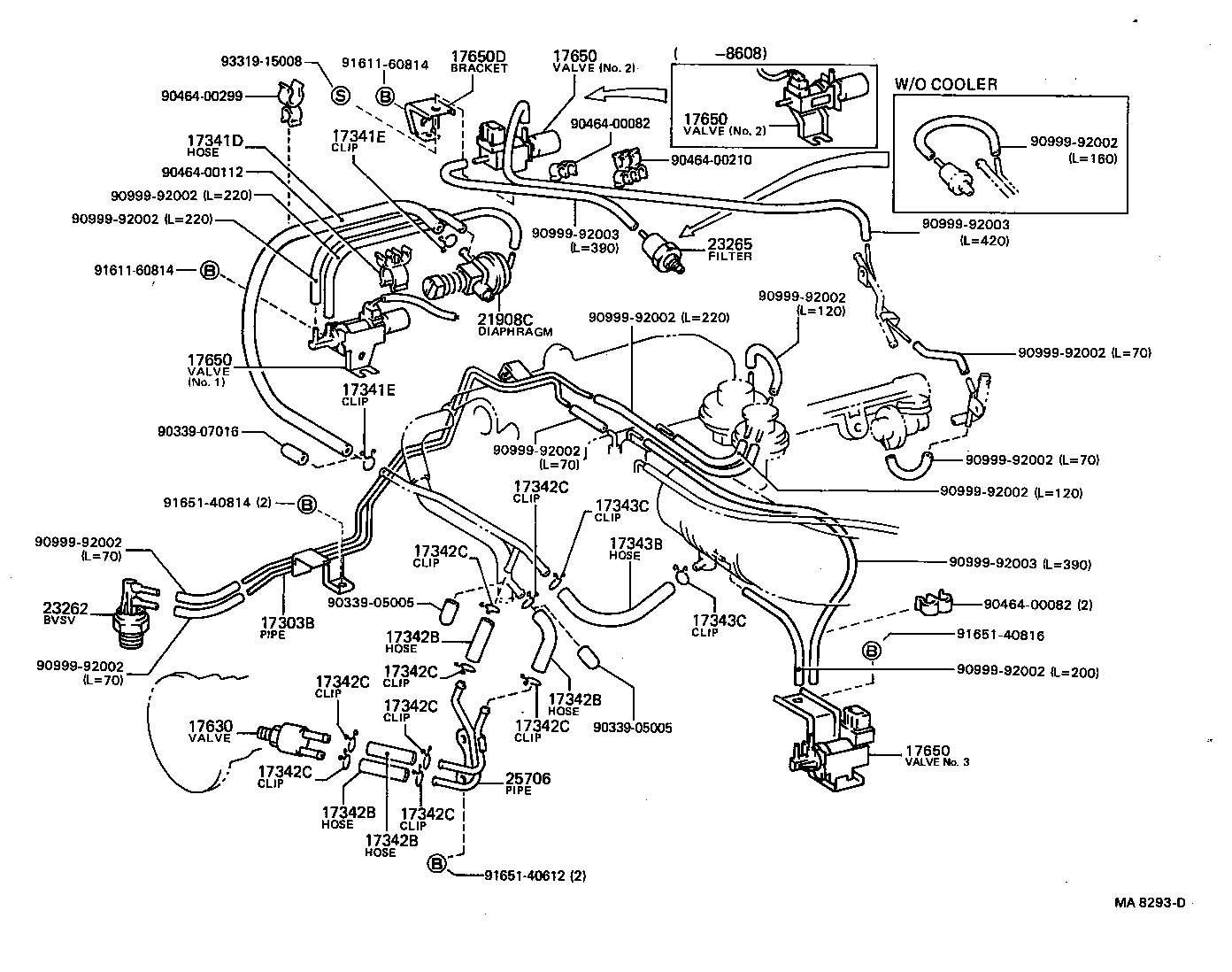

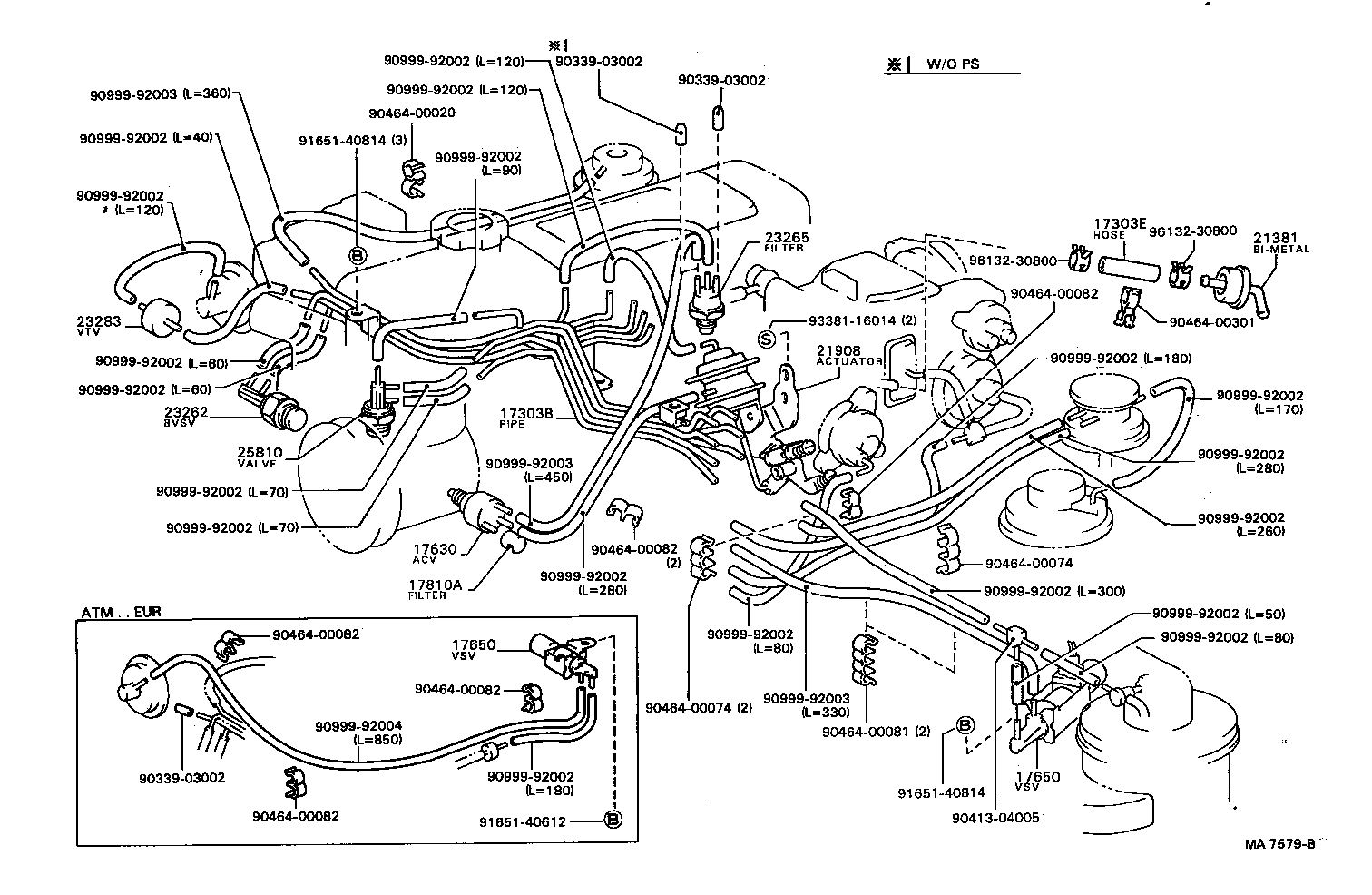

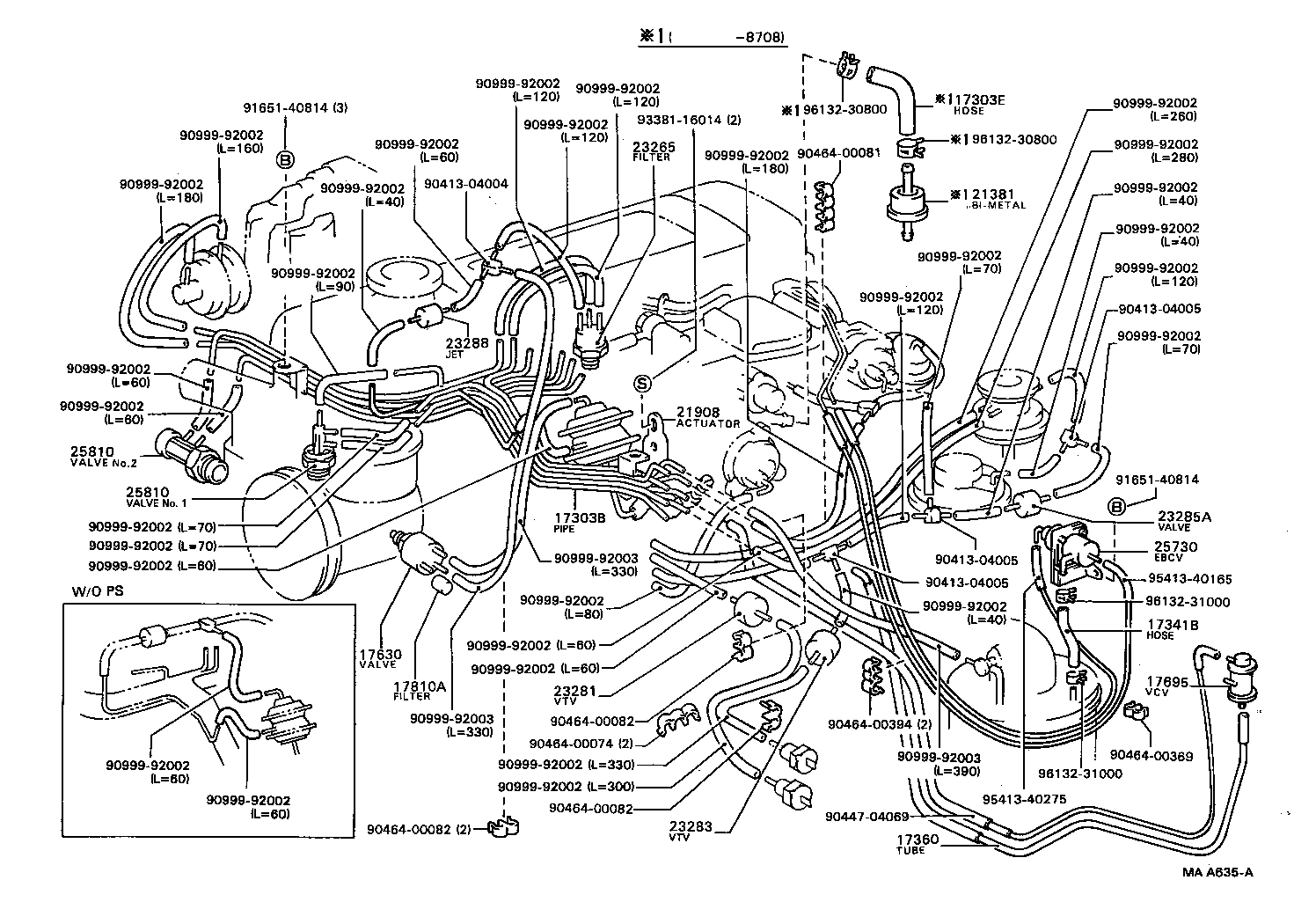

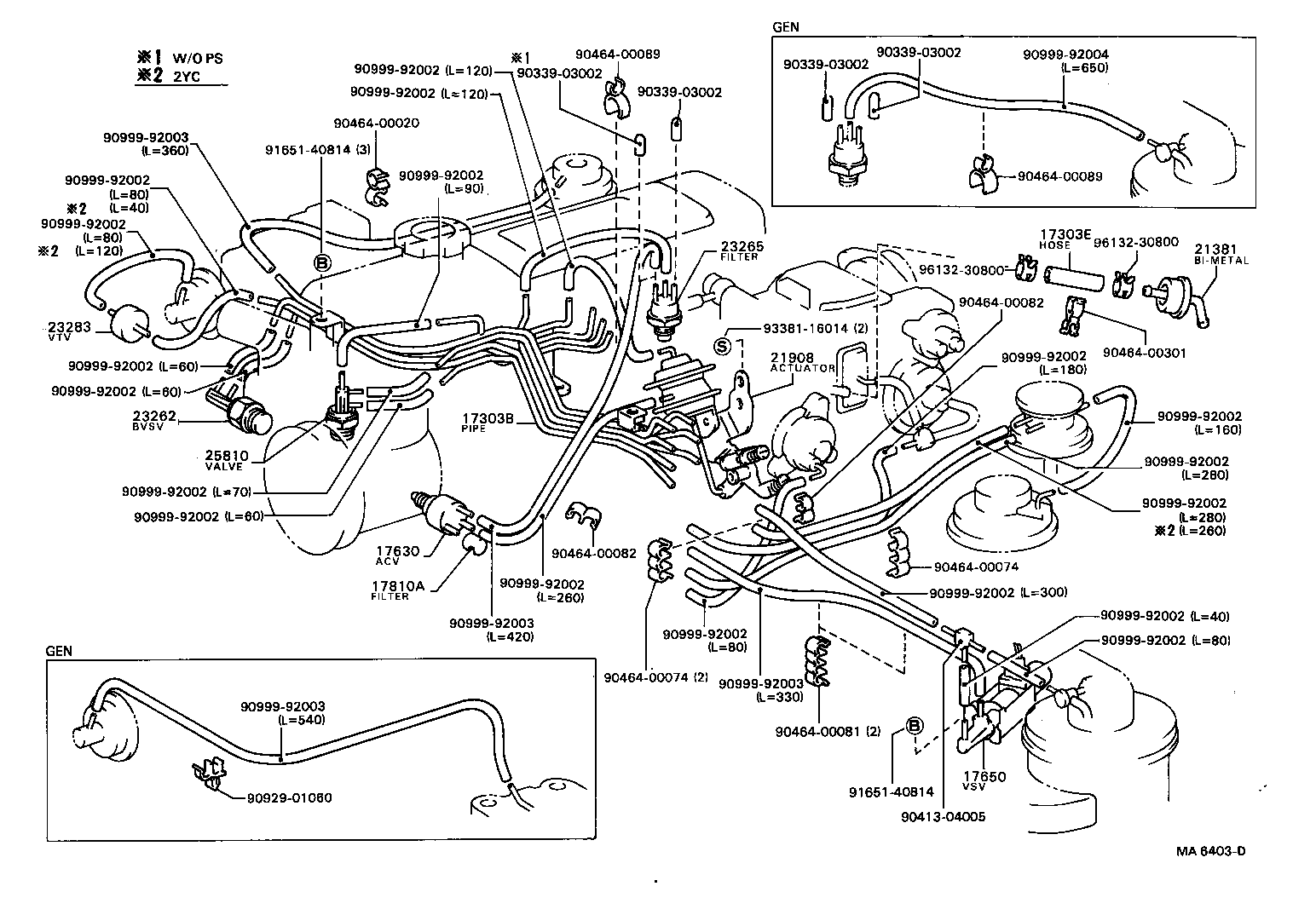

Figure MA9504B MA9504B 1982-11 → — Figure MA6402D MA6402D 1982-11 → 1984-08 Figure MA6402D MA6402D 1984-01 → 1984-08 Figure MA7578E MA7578E 1984-08 → — Figure MA6403D MA6403D 1982-11 → 1984-08 Figure MA7579B MA7579B 1984-08 → 1985-08 Figure MA7579B MA7579B 1985-08 → 1987-01 Figure MAA635A MAA635A 1985-08 → — Figure MA8293D MA8293D 1985-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17360 Tube Assy, Air
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
17695 Valve Assy, Vacuum Control
17810A Filter Assy, Air
21381 Bimetal, Thermostatic
21908 Actuator Sub-assy, Idle-up
21908C Diaphragm Sub-assy, Idle-up
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25730 Valve Assy, Electric Bleed Air Control
25810 Valve Assy, Bimetal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
