Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe
Discontinued model
Data version 1988-12

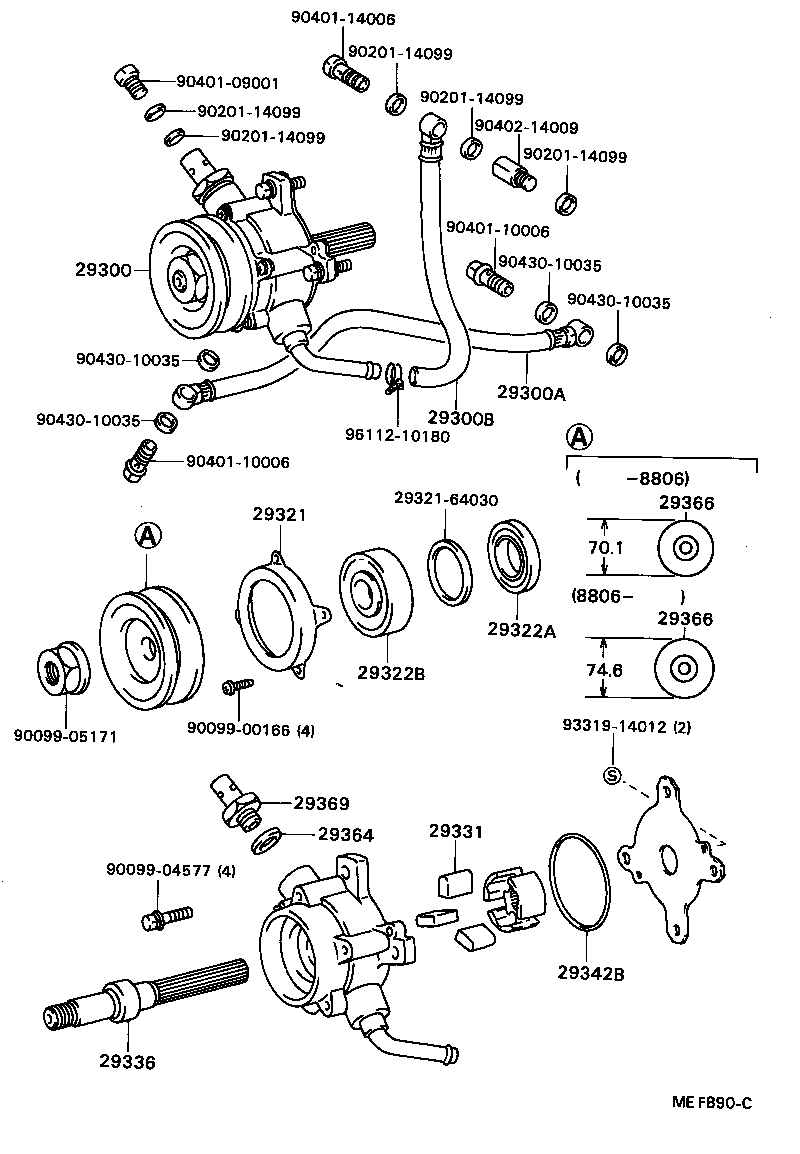

Vacuum Pump
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29321 | Ring, Oil Seal Stop, Vacuum Pump |
| 29322A | Seal, Vacuum Pump Oil |
| 29322B | Bearing, Vacuum Pump |
| 29331 | Blade, Vacuum Pump, A |
| 29336 | Shaft, Vacuum Pump |
| 29342 | Packing, Vacuum Pump |
| 29342B | Ring, O |
| 29364 | Washer, Vacuum Pump |
| 29366 | Pulley, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
| 29603 | Pipe, Vacuum Pump Oil Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
