Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

25 part groups · 2 illustrations

Illustrations

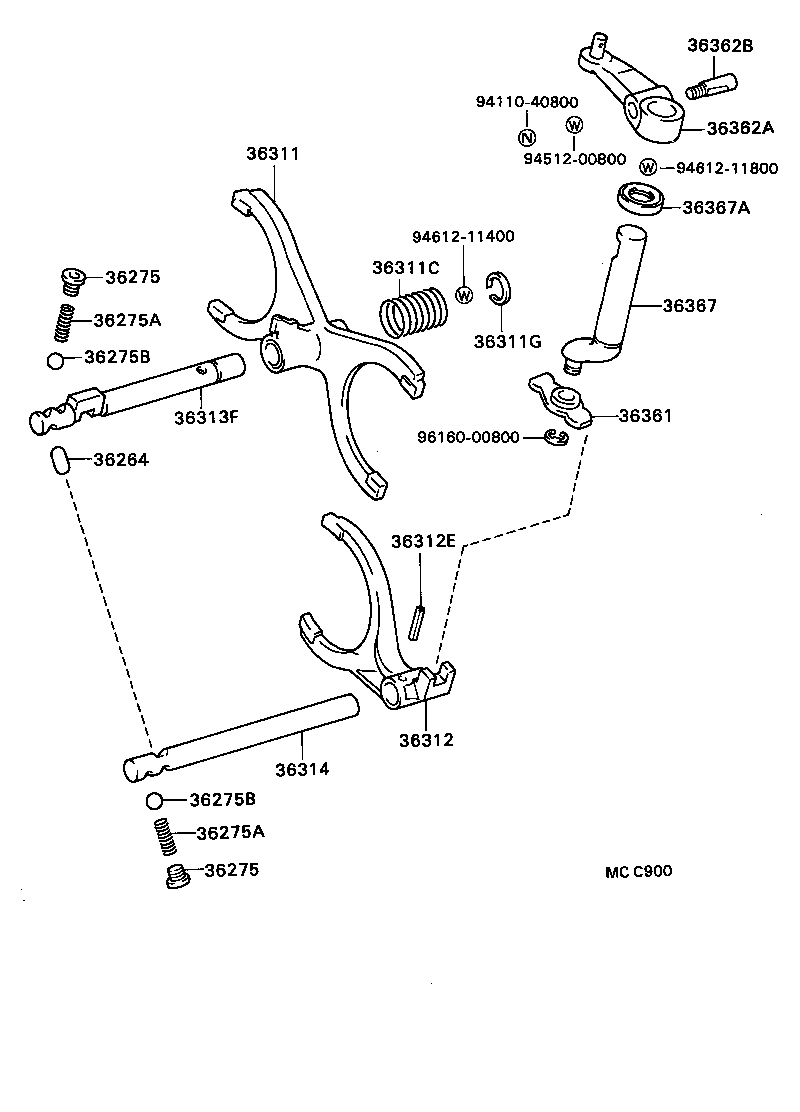

Figure MCD234B MCD234B 1986-01 → — Figure MCC900 MCC900 1986-01 → —

Part groups

PNCDescription
33820D Cable Assy, Transfer Control
33823B Bracket, Transfer Control Cable
36264 Pin OR Roller, Shift Inter-lock
36275 Plug, Shift Detent Ball Spring
36275A Spring, Compression (FOR SHIFT DETENT BALL)
36275B Ball, Shift Detent
36303 Knob Sub-assy, Shift Lever
36304 Retainer Sub-assy, Transfer Control Shift Lever
36311 Fork, Transfer Gear Shift, NO.1
36311C Spring, Compresion (FOR SHIFT FORK)
36311G Ring, Shaft Snap (FOR TRANSFER GEAR SHIFT FORK)
36312 Fork, Transfer Gear Shift, NO.2
36312E Pin, Slotted Spring (FOR TRANSFER GEAR SHIFT FORK)
36313F Shaft, Transfer Front Drive Shift Fork
36314 Shaft, Transfer High And Low Shift Fork
36320 Lever Assy, Transfer Shift
36320A Bush (FOR TRANSFER SHIFT LEVER)
36325 Cap, Transfer Front Drive Shift Lever
36360B Seat, Transfer Shift Lever Ball
36361 Lever, Transfer Shift, Inner
36362A Lever, Transfer Shift, Outer
36362B Pin, Lever Lock (FOR TRANSFER SHIFT LEVER OUTER)
36367 Shaft, Transfer Shift Inner Lever
36367A Seal, Oil (FOR TRANSFER SHIFT INNER LEVER SHAFT)
36385 Spring, Transfer Shift Lever Torsion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
