Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

34 part groups · 11 illustrations

Illustrations

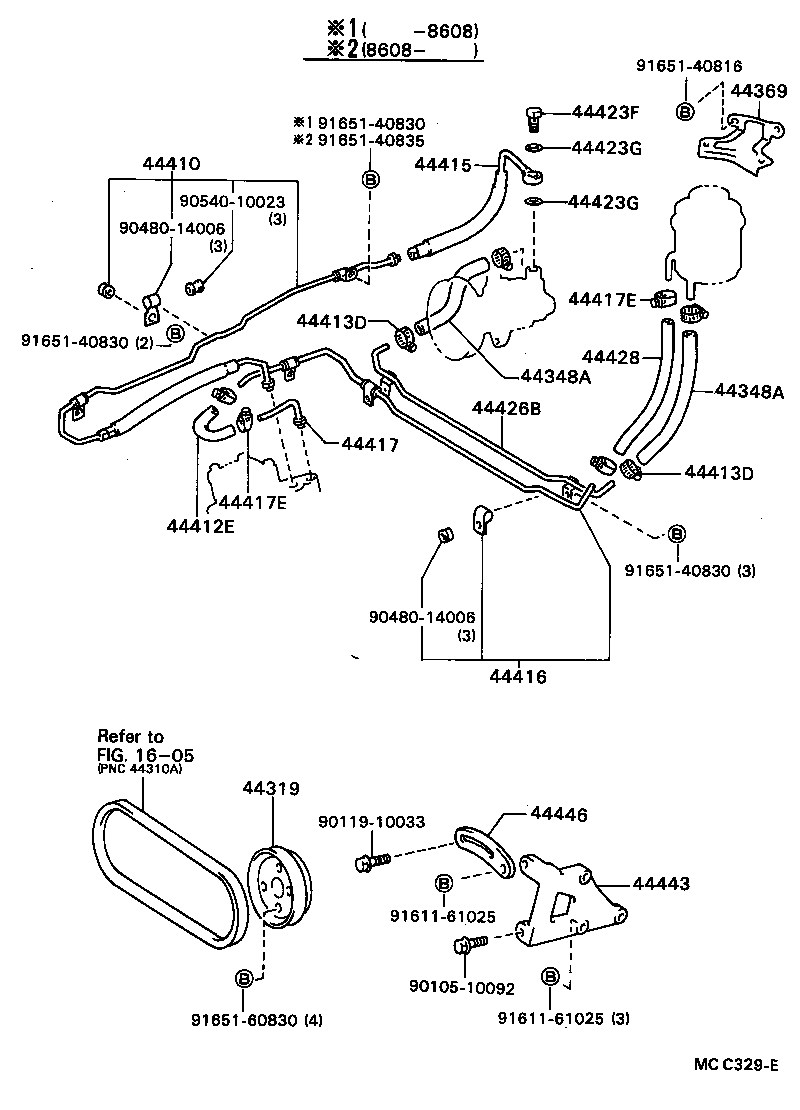

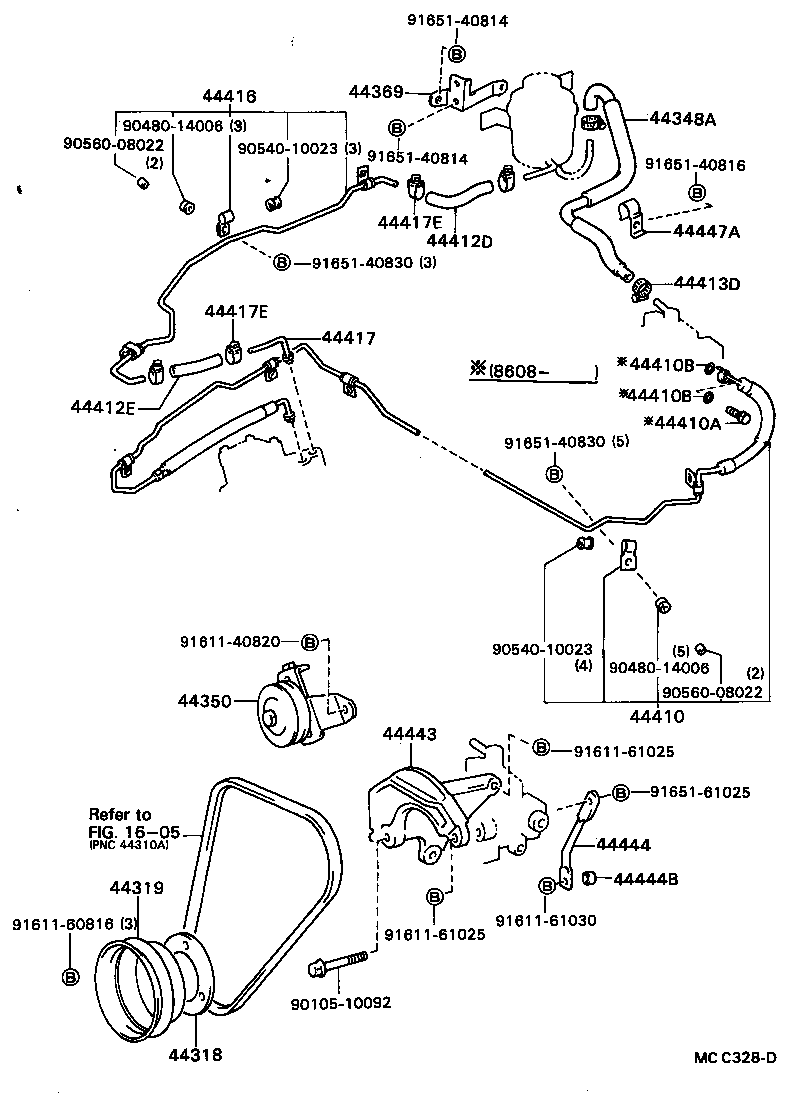

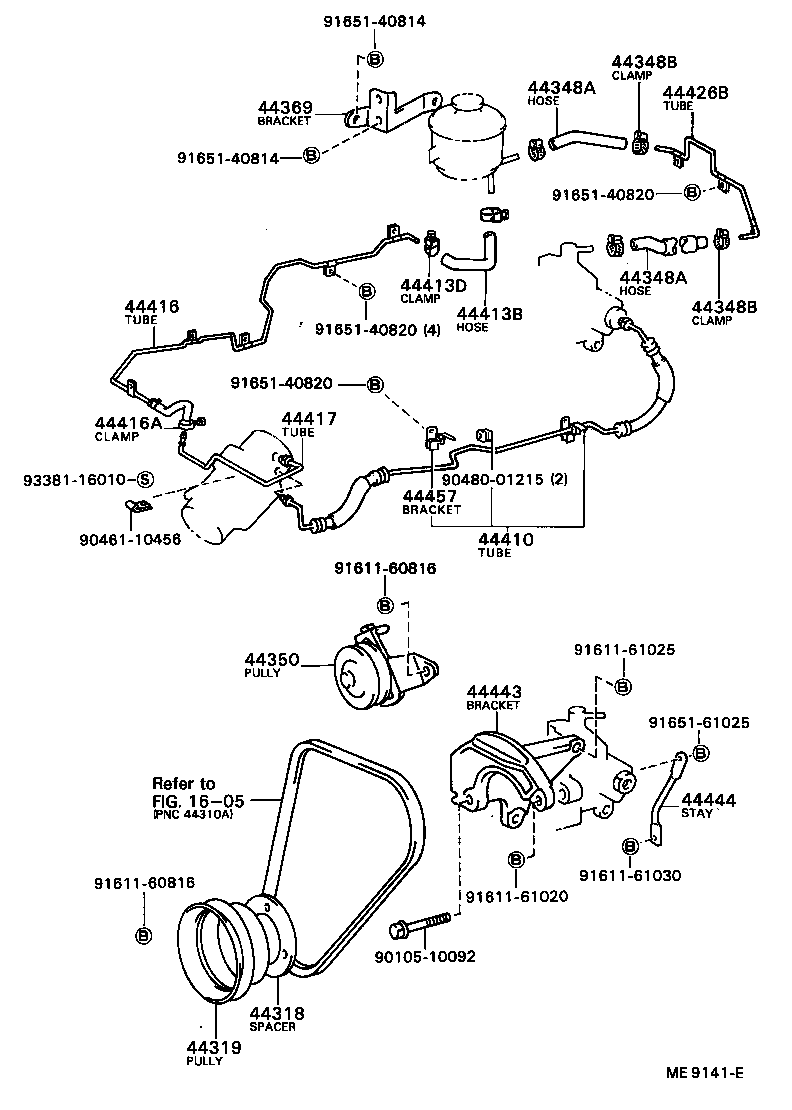

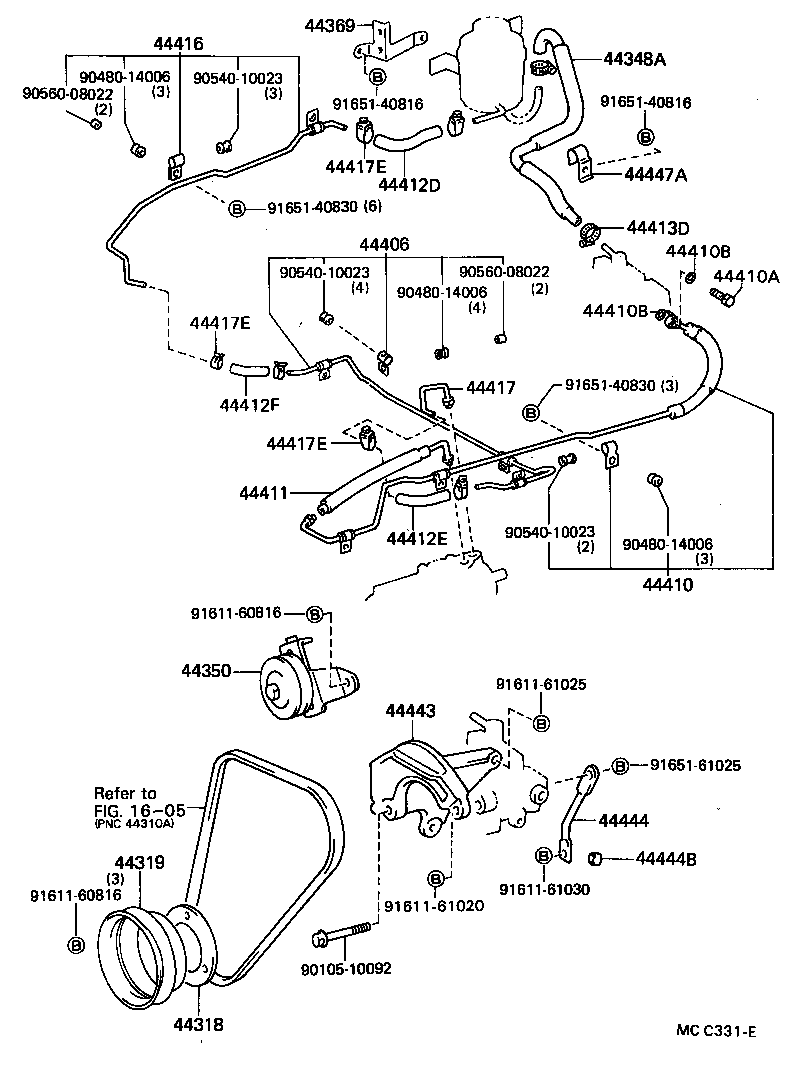

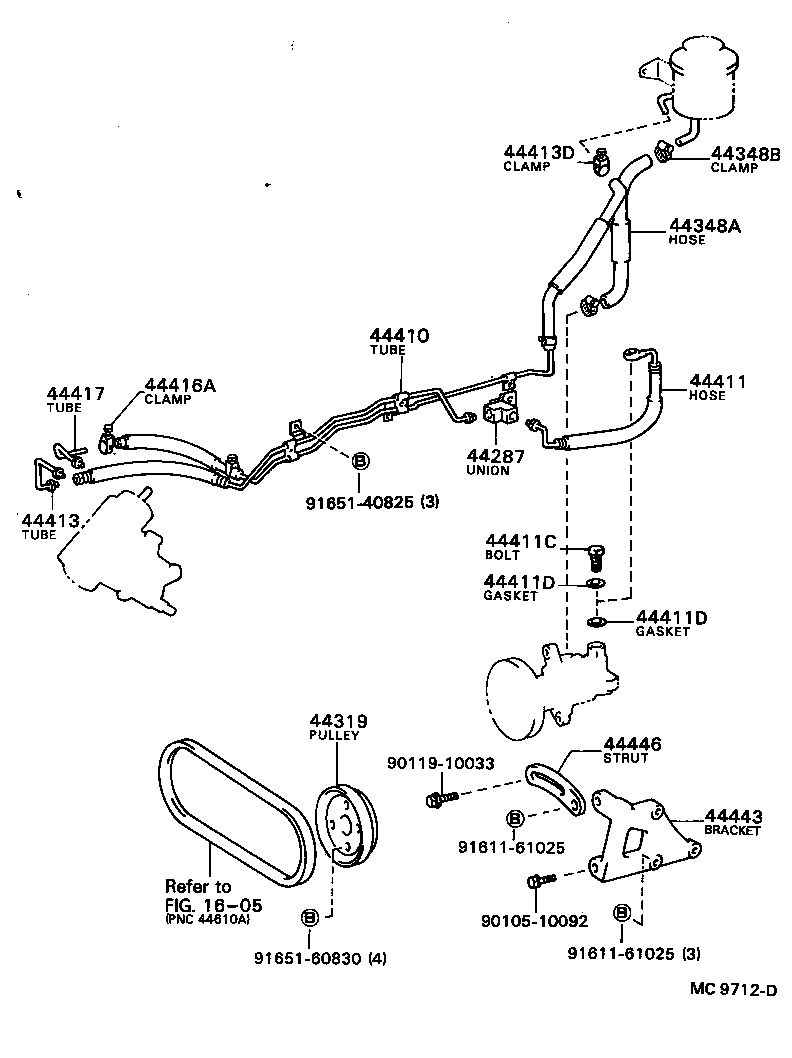

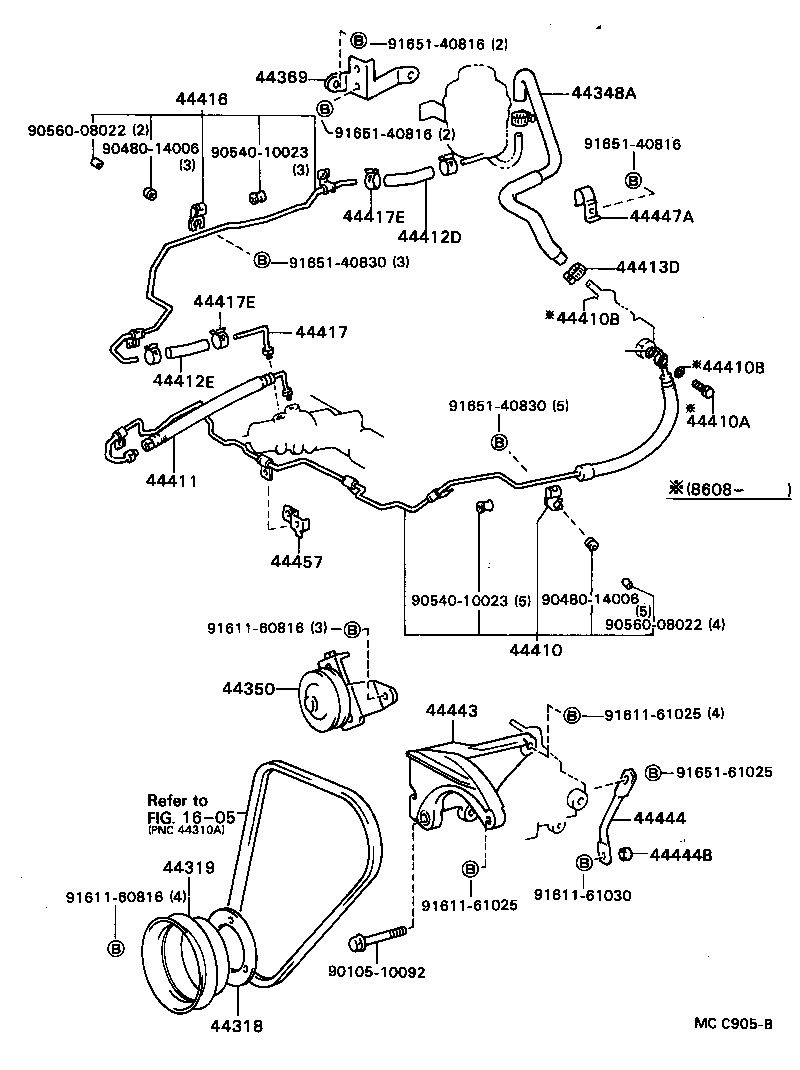

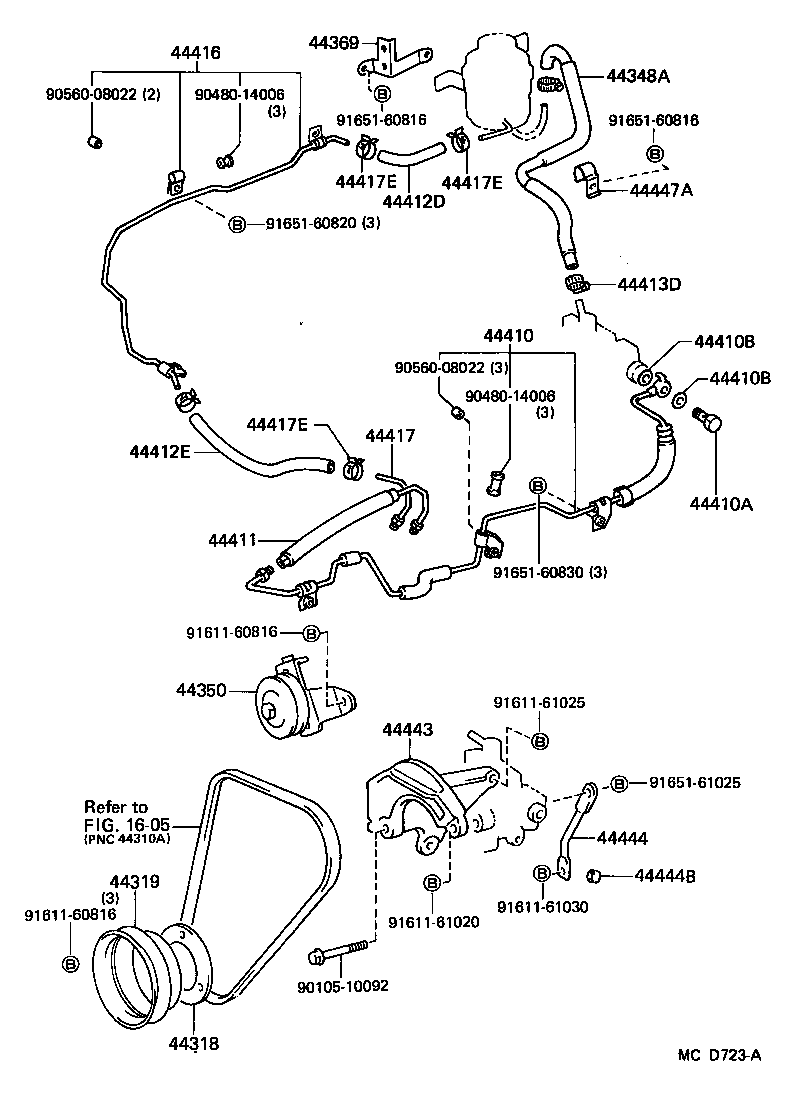

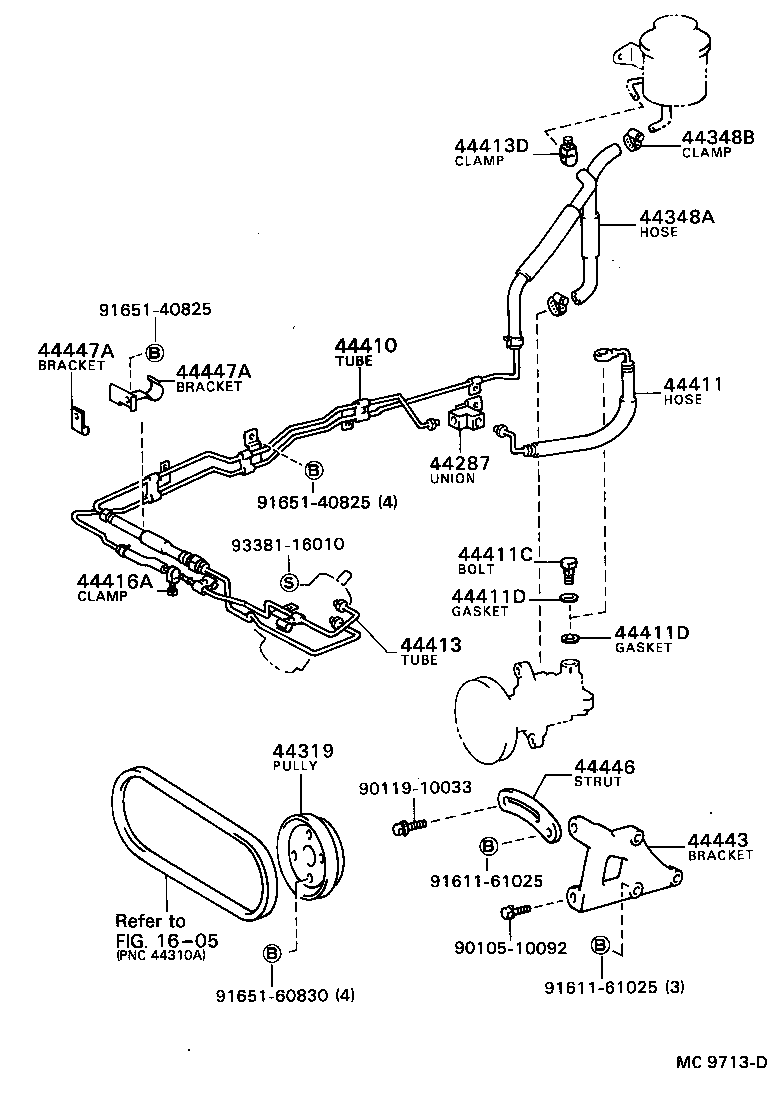

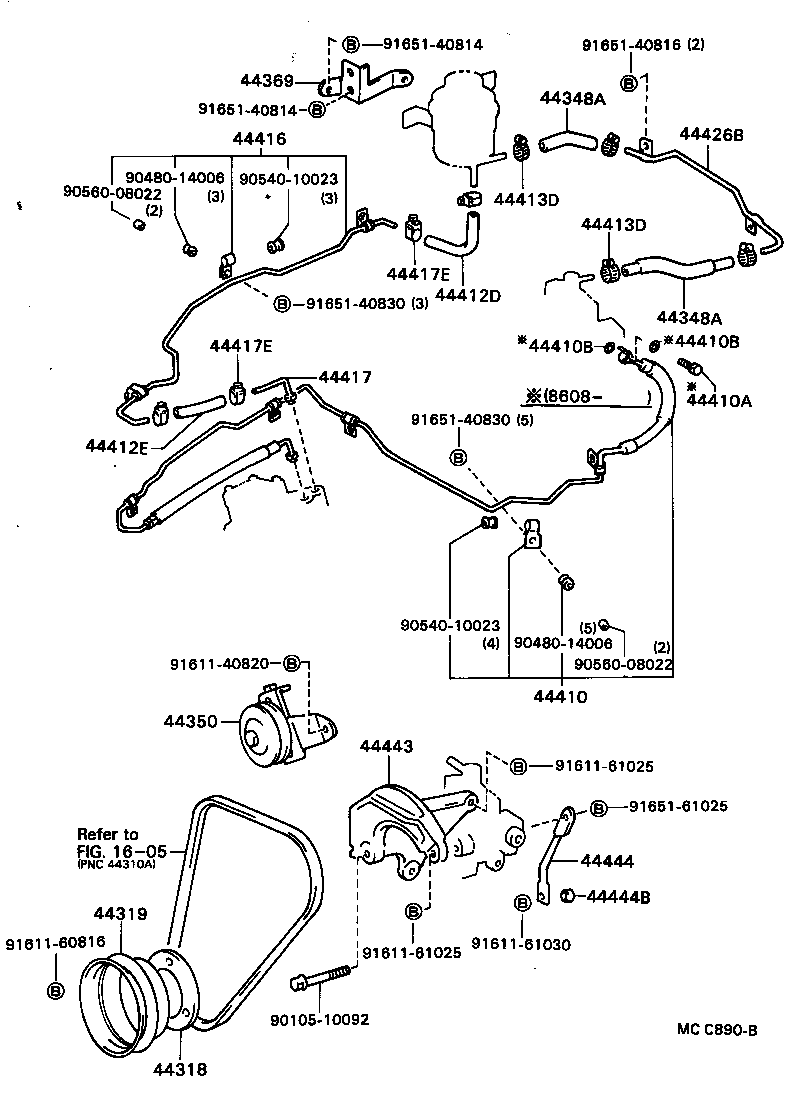

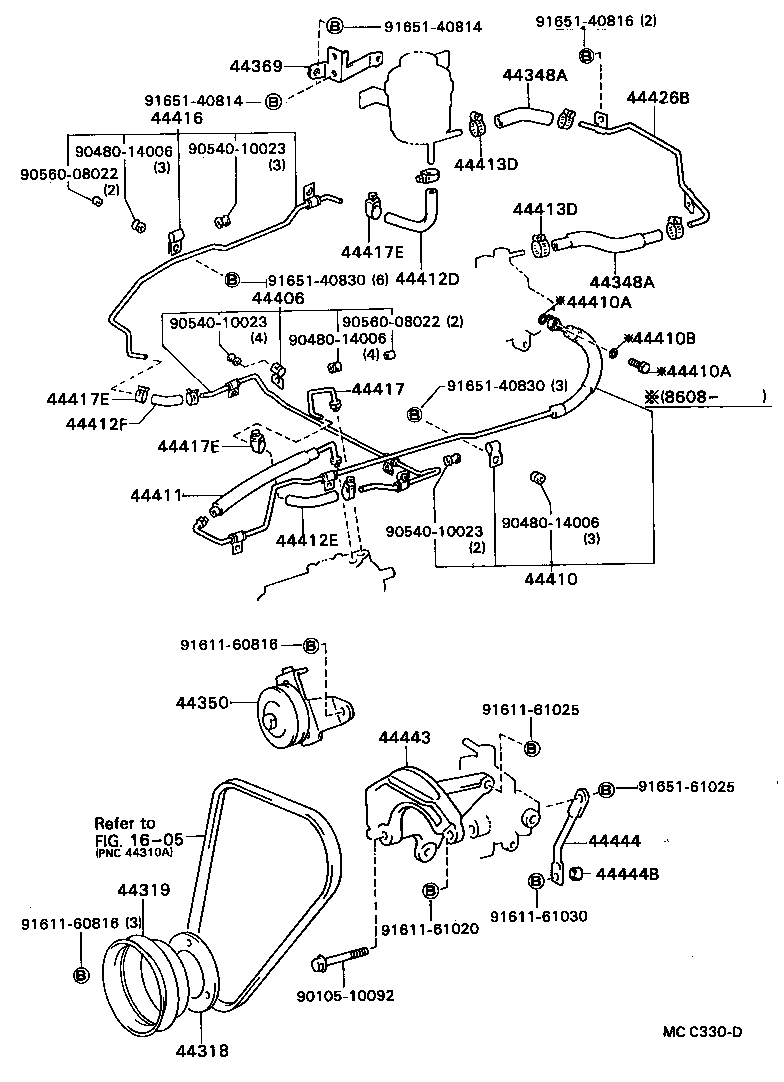

Figure MC9114F MC9114F 1982-11 → 1985-08 Figure MCC890B MCC890B 1985-08 → — Figure MC9141E MC9141E 1982-11 → 1985-08 Figure MCC330D MCC330D 1985-08 → — Figure MCC331E MCC331E 1986-08 → — Figure MCC328D MCC328D 1985-08 → — Figure MC9712D MC9712D 1983-05 → 1985-08 Figure MCC329E MCC329E 1985-08 → — Figure MC9713D MC9713D 1983-05 → 1984-08 Figure MCC905B MCC905B 1986-01 → — Figure MCD723A MCD723A 1986-08 → —

Part groups

PNCDescription
44287 Union, Pressure Tube
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348B Clamp(FOR OIL RESERVOIR TO PUMP HOSE)
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412D Hose, Return, NO.1
44412E Hose, Return, NO.2
44412F Hose, Return, NO.3
44413 Tube, Pressure Feed, NO.1
44413B Hose(FOR RESERVOIR TANK INLET)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44415 Hose, Pressure Feed, NO.2
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416A Clamp(FOR RETURN HOSE)
44417 Tube, Return, NO.2
44417E Clip, Hose(FOR RETURN TUBE TO RESERVOIR HOSE)
44423F Bolt, Union
44423G Gasket, Union Bolt
44426B Tube, Oil Reservoir TO Pump
44428 Hose, Return, NO.2
44443 Bracket, Pump
44444 Stay, Pump, Rear
44444B Collar (FOR PUMP REAR STAY)
44446 Strut, Adjusting
44447A Bracket, Hose Support, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
