Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

144 part groups · 12 illustrations

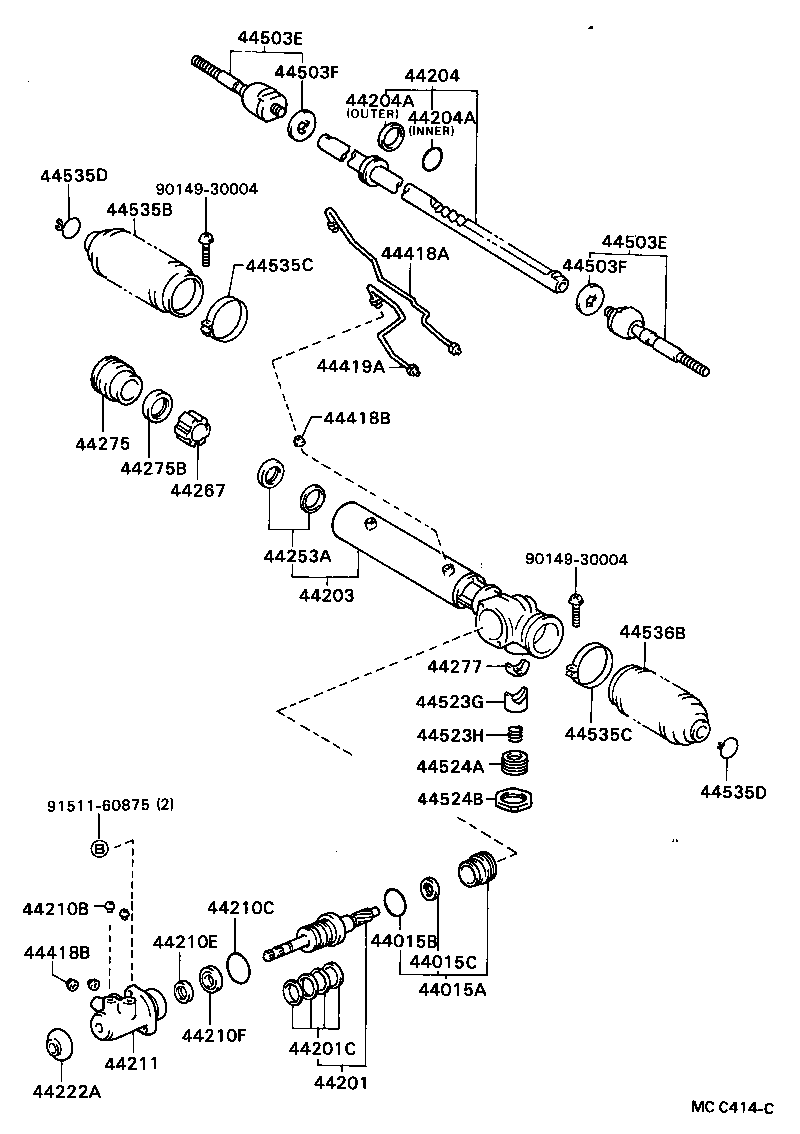

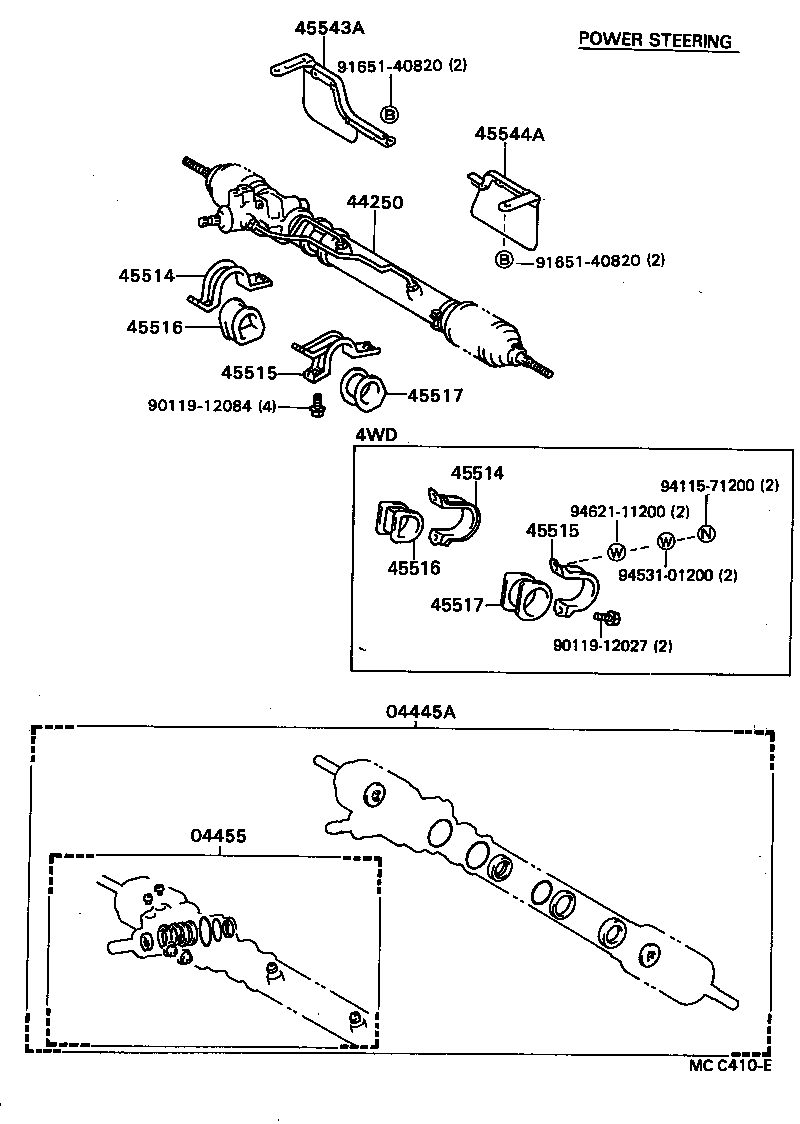

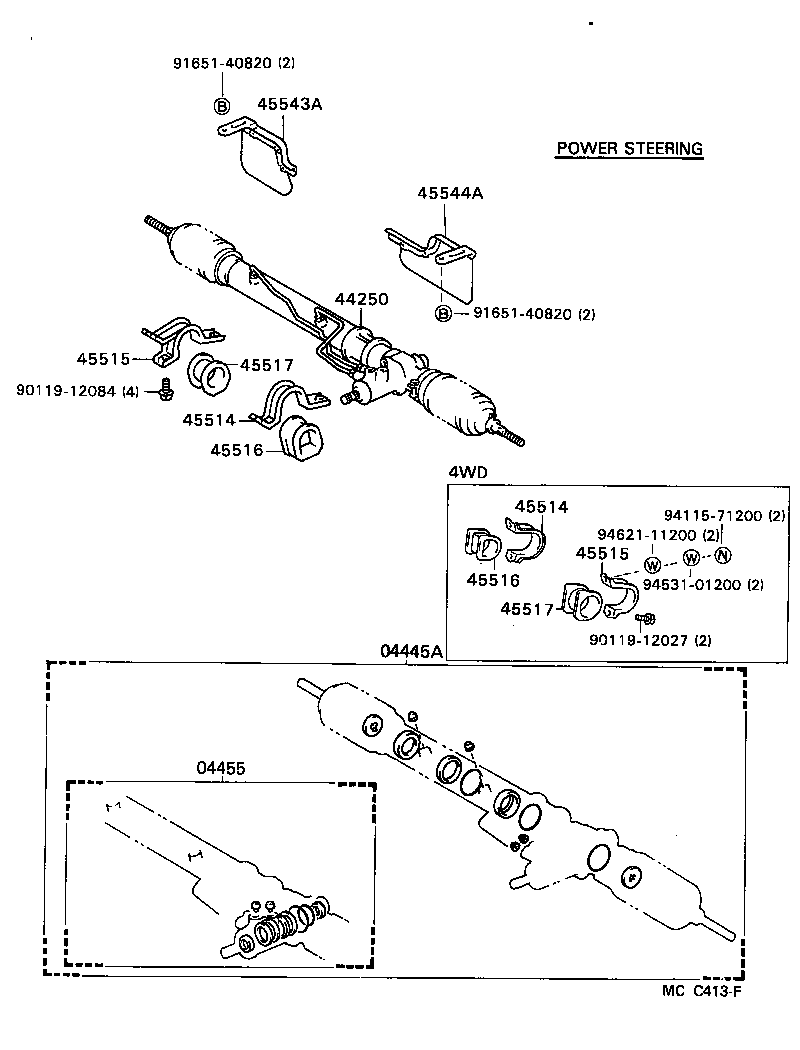

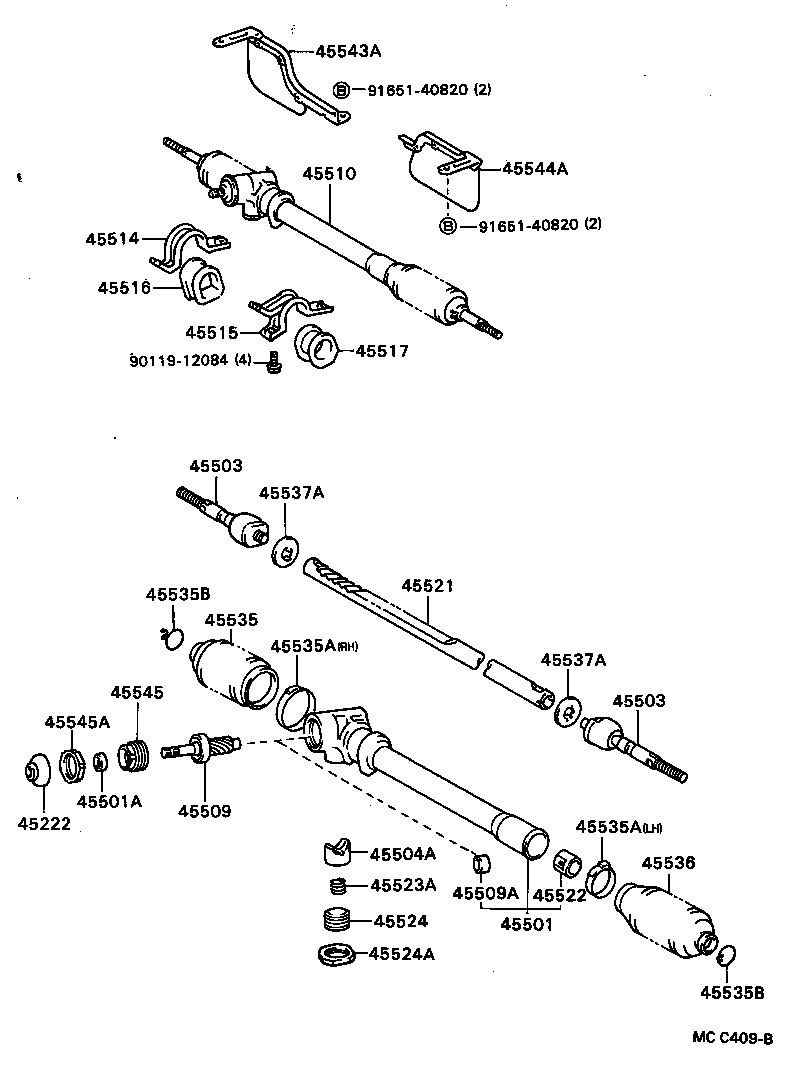

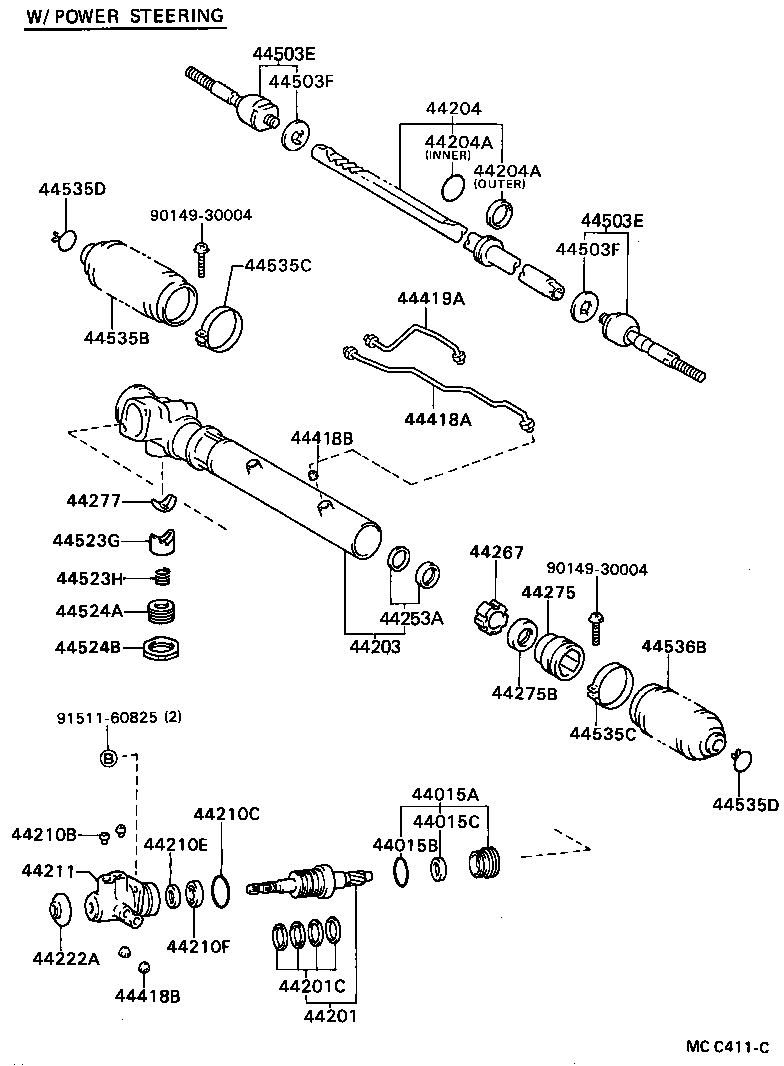

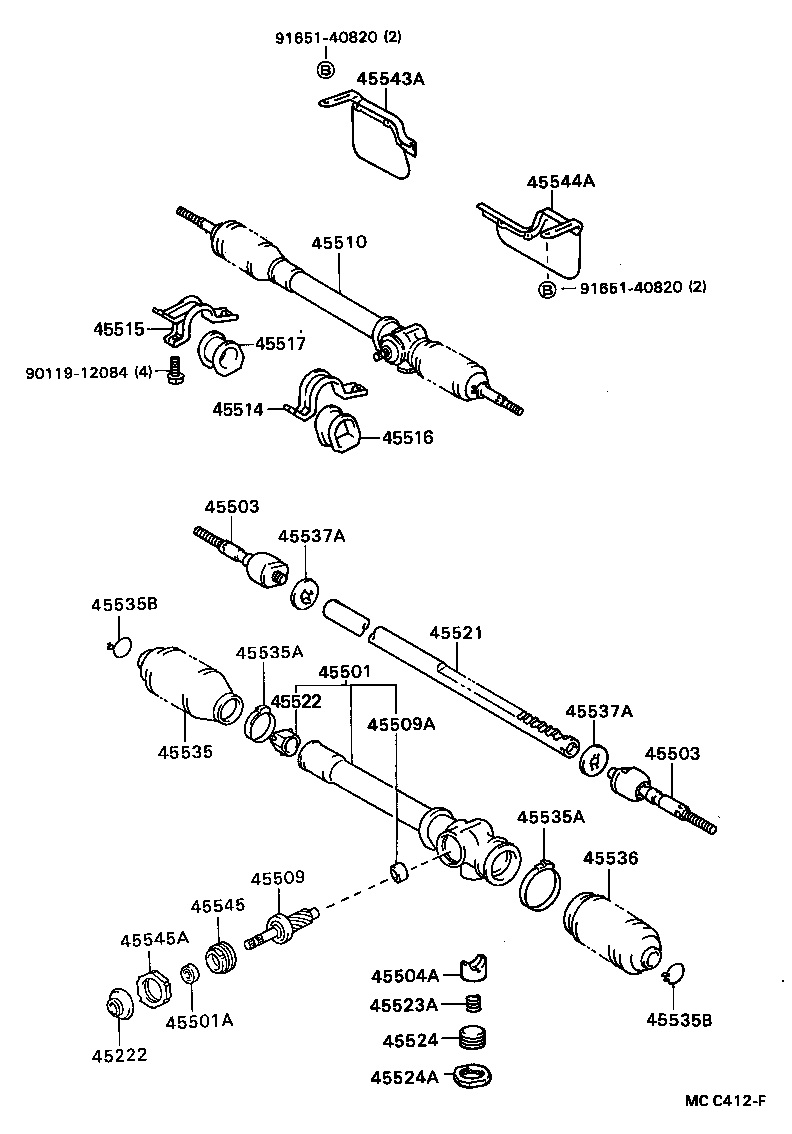

Illustrations

MC9117B 1982-11 → 1985-08

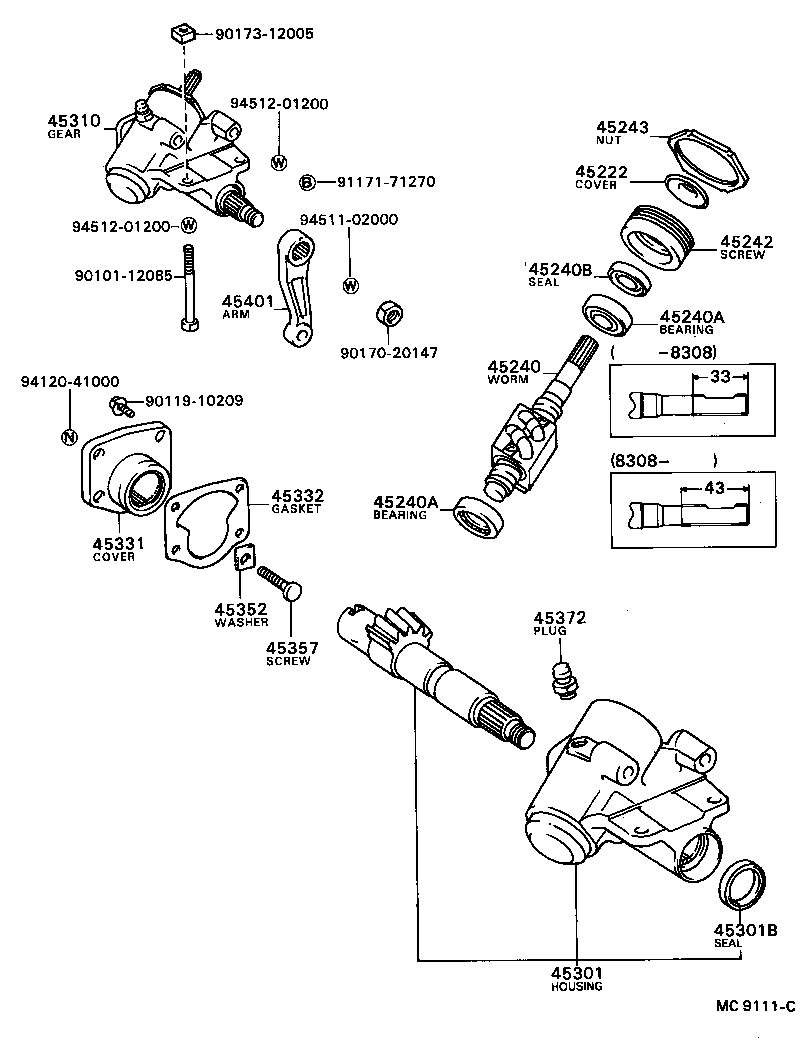

MC9111C 1982-11 → 1985-08

MCA547B 1982-11 → 1985-08

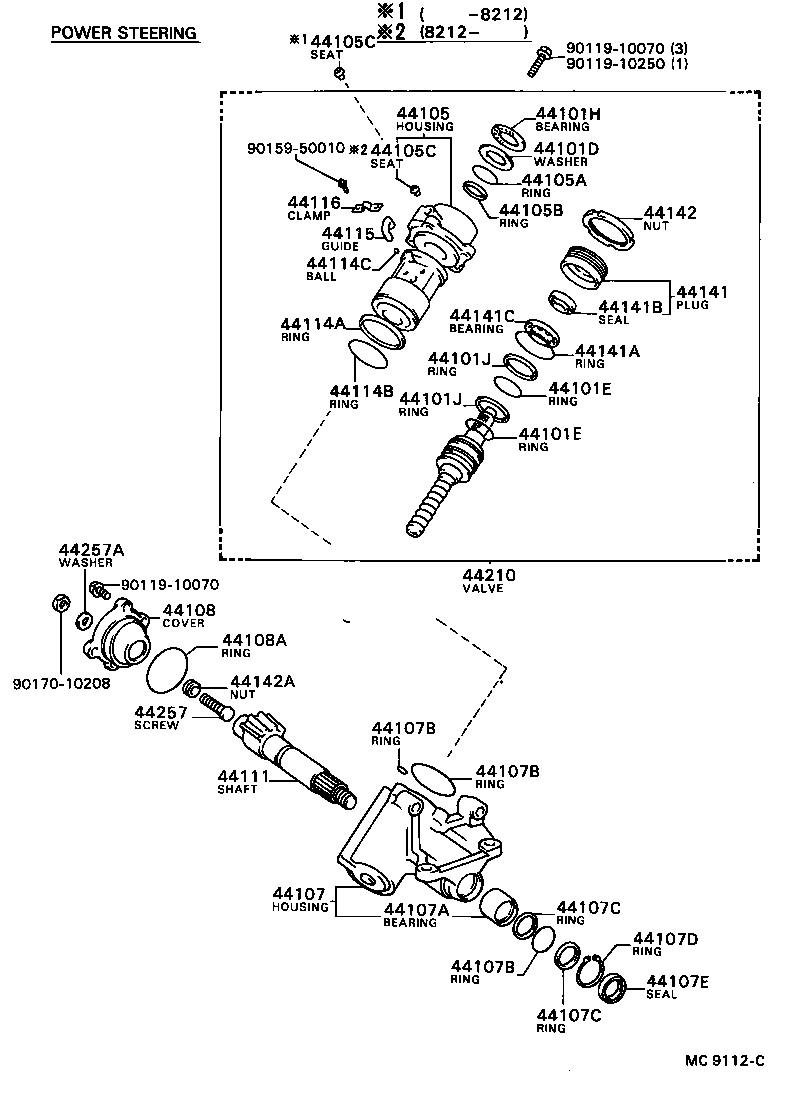

MC9112C 1982-11 → 1985-08

Part groups

PNC	Description
04044	Warm Kit, Power Steering
04445	Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL)
04445A	Gasket Kit, Power Steering Gear(FOR RACK & PINION)
04455	Gasket Kit, Power Steering Control Valve Overhole
04455A	Gasket Kit, Power Steering Cross Shaft Overhole
44015A	Nut Sub-assy, Bearing Guide
44015B	Ring, O(FOR BEARING GUIDE NUT)
44015C	Seal, Oil(FOR BEARING GUIDE NUT)
44101D	Washer, Plate(FOR STEERING WORM)
44101E	Ring, O(FOR STEERING WORM)
44101H	Bearing, Thrust Needle Roller(FOR STEERING WORM)
44101J	Ring(FOR STEERING WORM)
44105	Housing Sub-assy, Valve
44105A	Ring, O(FOR VALVE HOUSING)
44105B	Ring(FOR VALVE HOUSING)
44105C	Seat, Union(FOR VALVE BODY HOUSING)
44107	Housing Sub-assy, Power Steering Gear
44107A	Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING)
44107B	Ring, O(FOR POWER STEERING GEAR HOUSING)
44107C	Ring(FOR POWER STEERING GEAR HOUSING)
44107D	Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING)
44107E	Seal, Oil(FOR POWER STEERING GEAR HOUSING)
44108	Cover Sub-assy, Side
44108A	Ring, O(FOR SIDE COVER)
44110	Gear Assy, Power Steering
44111	Shaft, Cross
44114A	Ring(FOR POWER PISTON NUT)
44114B	Ring, O(FOR POWER PISTON NUT)
44114C	Ball(FOR POWER PISTON NUT)
44115	Guide, Ball
44116	Clamp, Ball Guide
44141	Plug, Adjuster
44141A	Ring, O(FOR ADJUSTER PLUG)
44141B	Seal, Oil(FOR ADJUSTER PLUG)
44141C	Bearing(FOR ADJUSTER PLUG)
44142	Nut, Lock
44142A	Nut, Lock, NO.1
44201	Valve Sub-assy, Power Steering Control
44201C	Ring(FOR POWER STEERING CONTROL VALVE)
44203	Housing Sub-assy, Power Steering Rack
44204	Rack Sub-assy, Power Steering
44204A	Ring(FOR RACK STEERING PISTON)
44210	Valve Assy, Power Steering Control
44210B	Seat, Union(FOR POWER STEERING CONTROL VALVE)
44210C	Ring, O(FOR POWER STEERING CONTROL VALVE)
44210E	Seal, Oil(FOR POWER STEERING CONTROL VALVE)
44210F	Bearing(FOR POWER STEERING CONTROL VALVE)
44211	Housing, Control Valve
44222A	Cover, Dust(FOR POWER STEERING GEAR)
44250	Gear Assy, Power Steering(FOR RACK & PINION)
44251	Arm, Pitman
44253A	Seal, Oil(FOR POWER STEERING RACK HOUSING)
44257	Screw, Cross Shaft Adjusting
44257A	Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW)
44267	Guide, Rack End
44275	Stopper, Cylinder End
44275B	Seal, Oil(FOR CYLINDER END STOPPER)
44277	Seat, Rack Guide
44418A	Tube, Steering Right Turn Pressure
44418B	Seat, Union(FOR STEERING TURN PRESSURE TUBE)
44419A	Tube, Steering Left Turn Pressure
44457	Bracket, Tube Support, NO.1
44503E	End Sub-assy, Steering Rack(FOR POWER STEERING)
44503F	Washer, Claw(FOR POWER STEERING RACK END)
44523G	Guide, Rack(FOR POWER STEERING)
44523H	Spring(FOR POWER STEERING RACK GUIDE)
44524A	Cap, Rack Guide Spring(FOR POWER STEERING)
44524B	Nut(FOR POWER STEERING RACK GUIDE CAP)
44535B	Boot, Steering Rack NO.1(FOR POWER STEERING)
44535C	Clamp(FOR POWER STEERING RACK BOOT)
44535D	Clip(FOR POWER STEERING RACK BOOT)
44536B	Boot, Steering Rack NO.2(FOR POWER STEERING)
45046	End Sub-assy, Tie Rod, RH
45046A	Nut, Castle(FOR TIE ROD END)
45047	End Sub-assy, Tie Rod, LH
45222	Cover, Steering Gear Dust
45240	Worm Assy, Steering
45240A	Bearing(FOR STEERING WORM)
45240B	Seal, Oil(FOR STEERING WORM)
45242	Screw, Worm Bearing Adjusting
45243	Nut, Worm Bearing Adjusting Screw Lock
45301	Housing Sub-assy, Steering Gear
45301B	Seal, Oil(FOR SECTOR SHAFT)
45310	Housing Assy, Steering Gear
45331	Cover, Sector Shaft End
45332	Gasket, Sector Shaft End Cover
45352	Washer, Sector Shaft Thrust
45357	Screw, Sector Shaft Adjusting
45372	Plug, Steering Gear Housing Oil
45401	Arm Sub-assy, Pitman
45403	Bracket Sub-assy, Center Arm
45403A	Seal, Oil(FOR CENTER ARM BRACKET)
45403D	Spring, Compression(FOR CENTER ARM SHAFT SET)
45403E	Plug, W/Head Taper Screw(FOR CENTER ARM SHAFT)
45406	Rod Sub-assy, Tie, RH
45406A	Nut, Castle(FOR TIE ROD)
45407	Rod Sub-assy, Tie, LH
45409C	Nut(FOR IDLER ARM SUPPORT)
45409D	Bush(FOR IDLER ARM)
45409E	Seal, Dust(FOR IDLER ARM SUPPORT)
45420	Arm Assy, Steering Center
45420A	Nut, Castle(FOR STEERING CENTER ARM)
45422	Shaft, Center Arm
45427	Seal, Center Arm Dust, Lower
45434	Cap, Center Arm Bracket
45436	Seat, Center Arm Shaft
45440	Link Assy, Steering Drag
45440B	Nut, Castle(FOR STEERING DRAG LINK)
45451	Rod, Steering Relay
45460	Rod Assy, Tie, RH
45461	Rod, Steering Tie
45466	Clamp, Tie Rod End
45470	Rod Assy, Tie, LH
45490	Arm Assy, Steering Idler
45490A	Nut, Castle(FOR IDLER ARM)
45501	Housing Sub-assy, Steering Rack
45501A	Seal, Type T Oil(FOR STEERING RACK HOUSING)
45503	End Sub-assy, Steering Rack
45504A	Guide Sub-assy, Rack
45509	Pinion Sub-assy, Steering
45509A	Bearing(FOR STEERING PINION)
45510	Gear Assy, Steering
45514	Bracket, Steering Rack Housing, NO.1
45515	Bracket, Steering Rack Housing, NO.2
45516	Grommet, Steering Rack Housing, NO.1
45517	Grommet, Steering Rack Housing, NO.2
45521	Rack, Steering
45522	Bush, Steering Rack
45523A	Spring(FOR STEERING GEAR RACK GUIDE)
45524	Cap, Steering Rack Guide Spring
45524A	Nut(FOR STEERING RACK GUIDE SPRING CAP)
45535	Boot, Steering Rack, NO.1
45535A	Clamp(FOR STEERING RACK BOOT)
45535B	Clip(FOR STEERING RACK BOOT)
45536	Boot, Steering Rack, NO.2
45537A	Washer, Claw(FOR STEERING RACK END LOCK)
45543A	Protector, Steering Rack Boot, RH
45544A	Protector, Steering Rack Boot, LH
45545	Screw, Pinion Bearing Adjusting
45545A	Nut(FOR PINION BEARING ADJUSTING SCREW)
45611	Arm, Steering Knuckle, RH
45611A	Bolt, Knuckle Stopper
45612	Arm, Steering Knuckle, LH
45619	Cover, Knuckle Stopper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
