Rear Spring & Shock Absorber

33 part groups · 2 illustrations

Illustrations

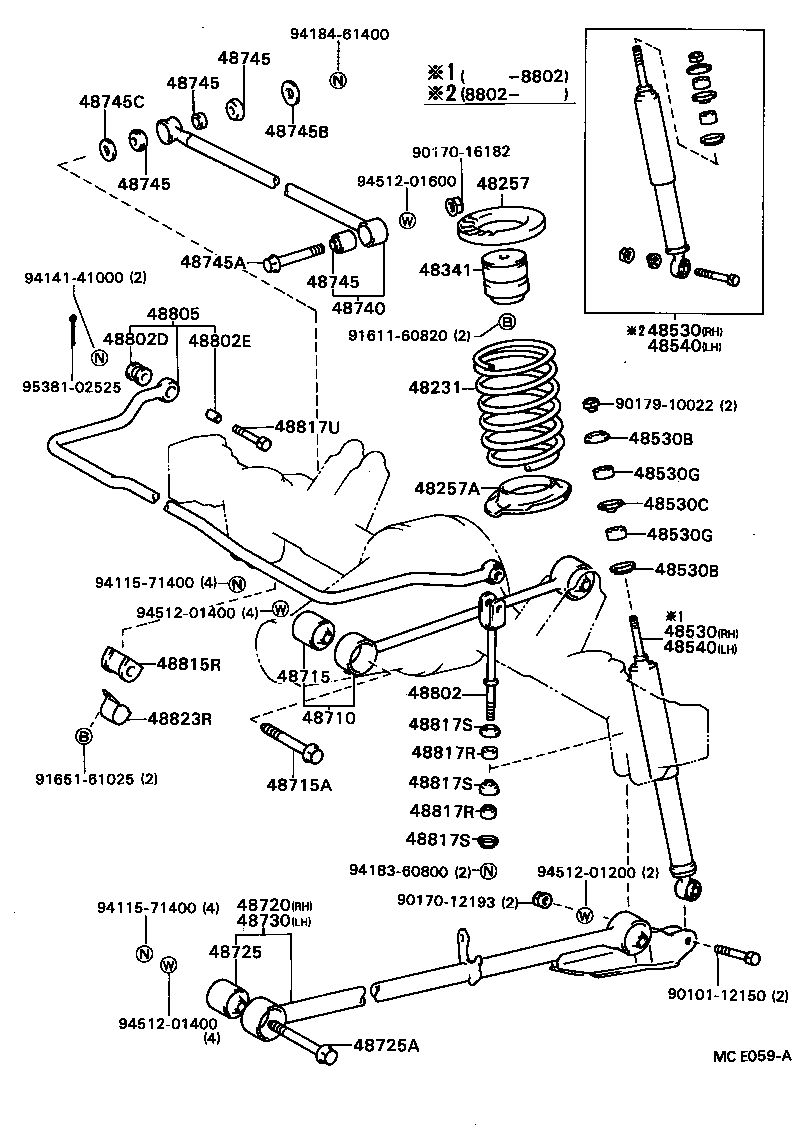

Figure MC9135G MC9135G 1982-11 → — Figure MCE059A MCE059A 1986-01 → —

Part groups

PNCDescription
48231 Spring, Coil, Rear
48257 Insulator, Rear Coil Spring
48257A Insulator, Rear Coil Spring, Lower
48341 Bumper, Rear Spring
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530G Cushion, Rear Shock Absorber, NO.1
48540 Absorber Assy, Shock, Rear LH
48710 Arm Assy, Upper Control
48715 Bush, Upper Control Arm
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725 Bush, Lower Control Arm
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48745B Washer, Lateral Control Rod Cushion
48745C Washer, Lateral Control Rod Cushion
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817U Bolt(FOR REAR STABILIZER)
48823R Cover, Stabilizer Link(FOR REAR)
