Toyota Model-f
1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe
Discontinued model
Data version 1988-12

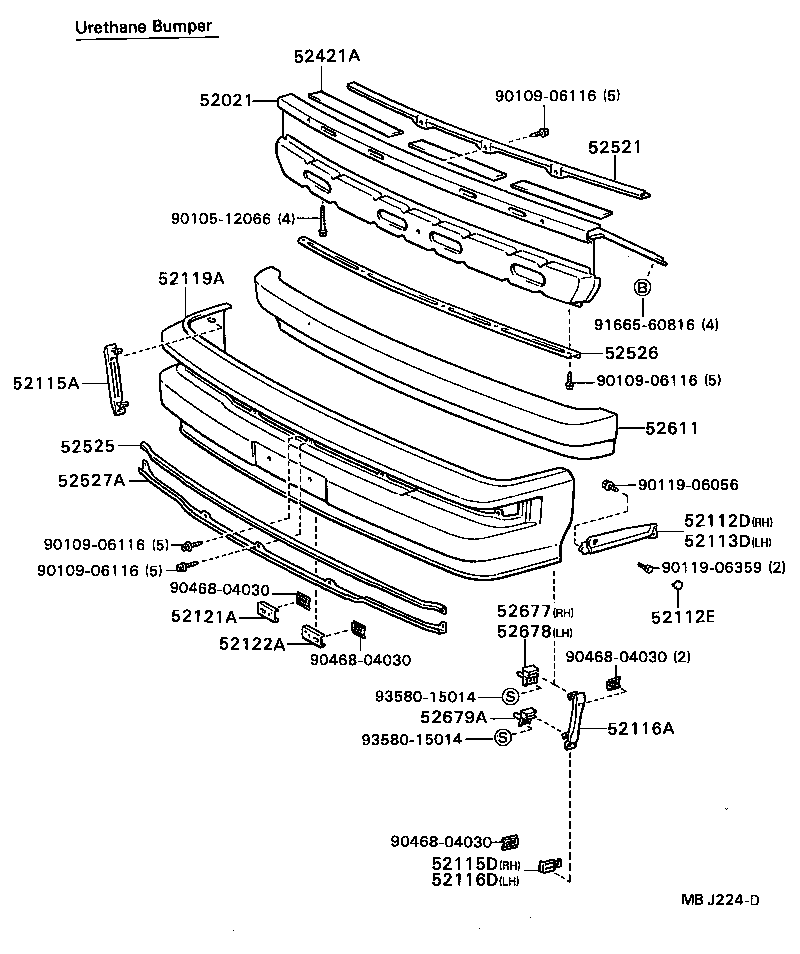

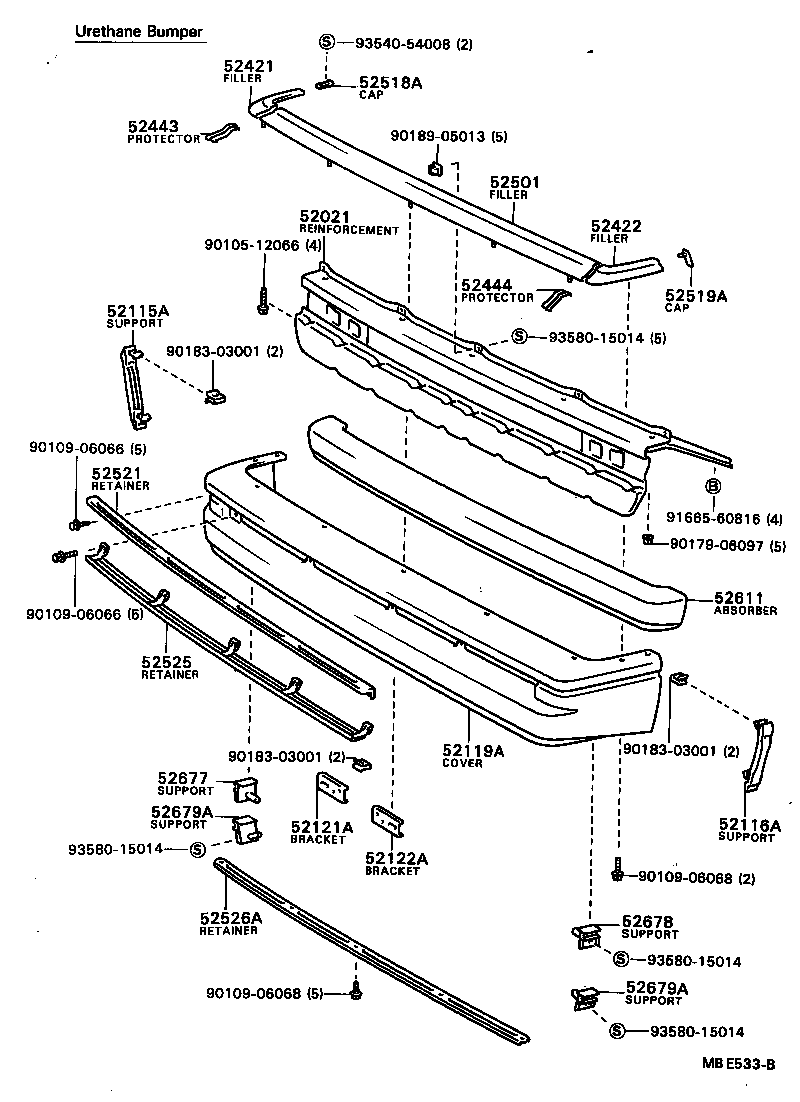

Front Bumper & Bumper Stay
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52021A | Reinforcement Sub-assy, Front Bumper, RH |
| 52022A | Reinforcement Sub-assy, Front Bumper, LH |
| 52072 | Retainer Sub-assy, Front Bumper, Lower |
| 52112C | Extension, Front Bumper |
| 52112D | Extension, Front Bumper, RH |
| 52112E | Plug, Hole(FOR FRONT BUMPER EXTENSION) |
| 52113D | Extension, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52115D | Support, Front Bumper Side, NO.2 RH |
| 52116A | Support, Front Bumper Side, LH |
| 52116D | Support, Front Bumper Side, NO.2 LH |
| 52119A | Cover, Front Bumper |
| 52121A | Bracket, Front License Plate Mounting, RH |
| 52122A | Bracket, Front License Plate Mounting, LH |
| 52421 | Filler, Front Bumper Moulding, RH |
| 52421A | Pad, Front Bumper |
| 52422 | Filler, Front Bumper Moulding, LH |
| 52443 | Protector, Front Bumper, RH |
| 52444 | Protector, Front Bumper, LH |
| 52501 | Filler Sub-assy, Front Bumper |
| 52518A | Cap, Front Bumper Filler, RH |
| 52519A | Cap, Front Bumper Filler, LH |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52525 | Retainer, Front Bumper, Lower Center |
| 52526 | Retainer, Front Bumper, Lower Side |
| 52526A | Retainer, Front Bumper, Lower NO.1 |
| 52527A | Retainer, Front Bumper, Lower Center NO.2 |
| 52611 | Absorber, Front Bumper Energy |
| 52677 | Support, Front Bumper Side, NO.2, RH |
| 52678 | Support, Front Bumper Side, NO.2, LH |
| 52679A | Support, Front Bumper Side, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
