Toyota Model-f

1982-11 → 1988-08 · chassis YR2#,31,CR21 · catalogue 651220 · Europe

Discontinued model Data version 1988-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

14 part groups · 3 illustrations

Illustrations

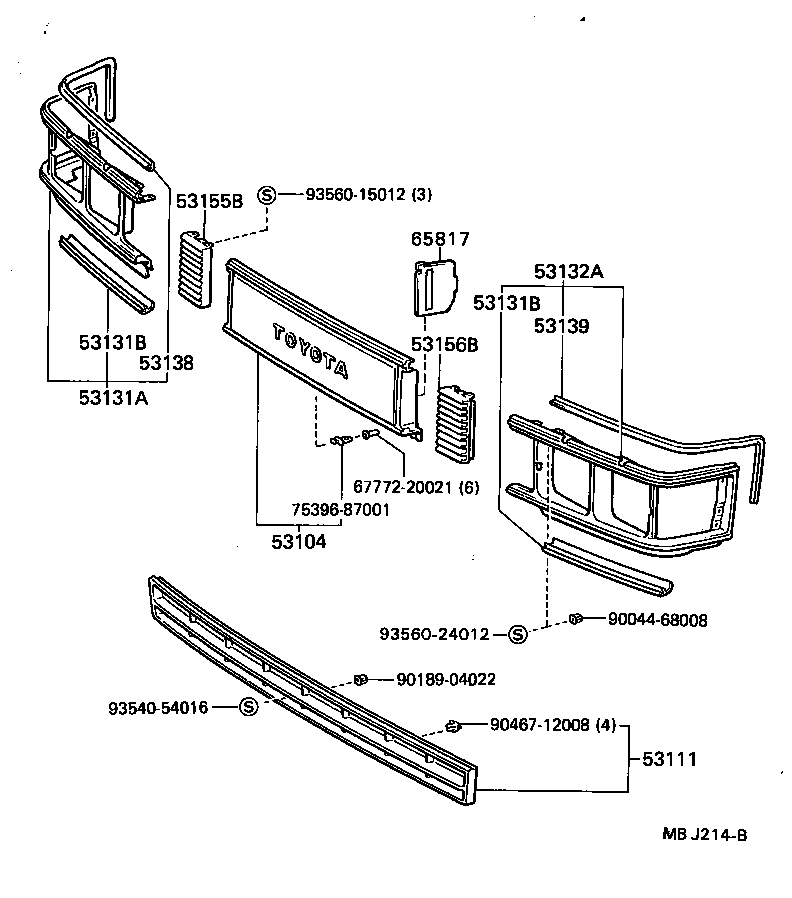

Figure MBE538B MBE538B 1982-11 → 1985-08 Figure MBE538B MBE538B 1985-08 → — Figure MBJ214B MBJ214B 1985-08 → —

Part groups

PNCDescription
53104 Garnish Sub-assy, Front Panel, Center
53111 Grille, Radiator
53131A Door, Headlamp, RH
53131B Weatherstrip, Headlamp Ornament
53132A Door, Headlamp, LH
53138 Protector, Headlamp Door, RH
53139 Protector, Headlamp Door, LH
53155B Bezel, Headlamp, Outer RH
53156B Bezel, Headlamp, Outer LH
53169A Protector, Headlamp Door, NO.2 RH
53179A Protector, Headlamp Door, NO.2 LH
53927 Garnish, Front Panel, Center Upper
53929 Garnish, Front Panel, Center Lower
65817 Pad, Cover Top Panel End
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
